ER32 Cooling Collet chuck ERC32 ERS32 Outlet stop water Spring Collets CNC ER Sealed Collet 3 to 20mm For ER Spindle Tool Holder

ER32 Cooling Collet chuck ERC32 ERS32 Outlet stop water Spring Collets CNC ER Sealed Collet 3 to 20mm For ER Spindle Tool Holder

FOB Reference Price: Get Latest Price

≥1 Pieces

US $6.68

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Core Components:: Tool holder

Name:: ER cooling collet chuck

Type:: ER32 Collets

Specification:: 3-20mm

Texture of material:: High quality 65Mn Steel

Body Accuracy(Pricision):: ≤0.008mm

Hardness:: HRC44-48

Function:: Cooling the workpiece tool to improve stability tool wear resistance.

Application environment:: Milling, boring, drilling, tapping, CNC, engraving, spindle machines

Quick Details

Place of Origin:: Guangdong, China

Weight (KG):: 0.2

Brand Name:: MAIAM

Core Components:: Tool holder

Name:: ER cooling collet chuck

Type:: ER32 Collets

Specification:: 3-20mm

Texture of material:: High quality 65Mn Steel

Body Accuracy(Pricision):: ≤0.008mm

Hardness:: HRC44-48

Function:: Cooling the workpiece tool to improve stability tool wear resistance.

Application environment:: Milling, boring, drilling, tapping, CNC, engraving, spindle machines

Products Description

Product Info：

Name : ER cooling collet chuck Type: ER32 Collets Specification: 3-20mm Texture of material: High quality 65Mn Steel Body Accuracy（Pricision）: ≤0.008mm

Hardness: HRC44-48 Function: Cooling the workpiece tool to improve stability and tool wear resistance. Application environment: Milling, boring, drilling, tapping, CNC, engraving, spindle machines, etc

(Note: For more parameters, please contact for consultation)

Product Paramenters

This dimension drawing is manual measurement, so there may be errors. I hope to get your understanding.

If the size deviation is too large, it is usually marked incorrectly.

ERC Size（ Mechanical water stop design ）

The size is for reference only, please consult customer service for more questions.

ERS Size（Cooling Outlet water design）

The size is for reference only, please consult customer service for more questions.

Details Images

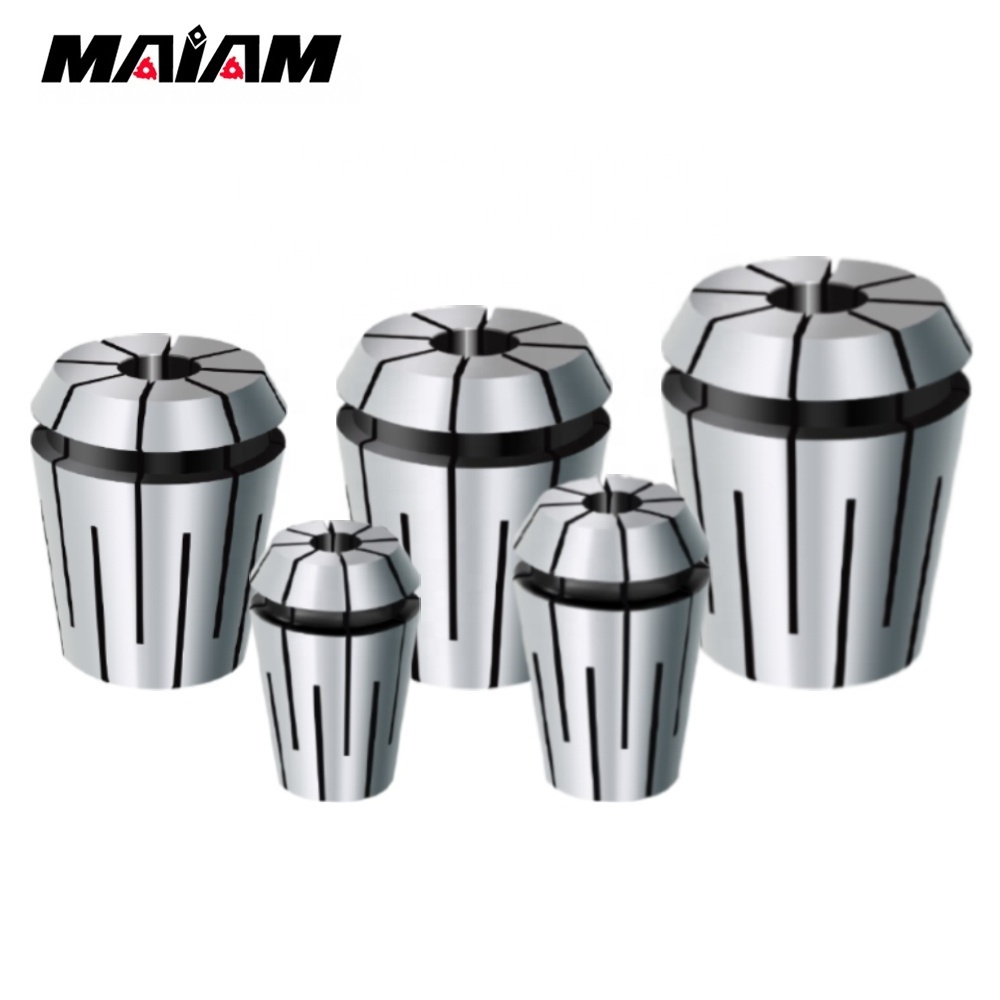

ER high-precision water stop collet collet for quick cooling. Complete models ER11 ER16 ER20 ER25 ER32 ER40, quality assurance.

High quality steel, quenching heat treatment

The body is made of high-quality 65Mn material with high thermal strength and oxidation resistance, durable wear resistance and stable quality.

Cooling outlet water Collet chuck

▲ Advantage： To reduce the cost of the tool, all general-purpose tools can be used. If the tool does not have an internal cooling water outlet hole, the collet can spray water at high pressure and recision through the water outlet hole to cool the tool and remove waste chips around the tool. (Ordinary methods of spraying water will have dead angles, insufficient pressure, etc.)

▲ Shortcoming： The water cannot flow out of the center, and the tool with internal cooling holes is not easy to use. For milling or drilling deep holes, the chip removal effect is not good.

Cooling stop water Collet chuck

▲ Advantage： Allow water to flow out of the water hole in the center of the tool to cool the tool quickly and prolong the life of the tool. If used on a drill bit, the chip removal effect is better. ▲ Shortcoming： The cutter must use the inner cooling outlet hole, and the cost of the cutter with the outlet hole is very high.

Simple and fast

Large clamping force, wide application range, fast installation, and simple use. Meet various drilling and milling needs, can hold up to 3-26mm.

Product packaging

There are many models and specifications, and the display is limited. Different types of products have different packaging, which can be used as packaging reference. If the quantity you need is large, we can design the package you need according to your requirements.
