- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
BKM-Z12N
-
Place of Origin:
-
Shandong, China
-
Product name:
-

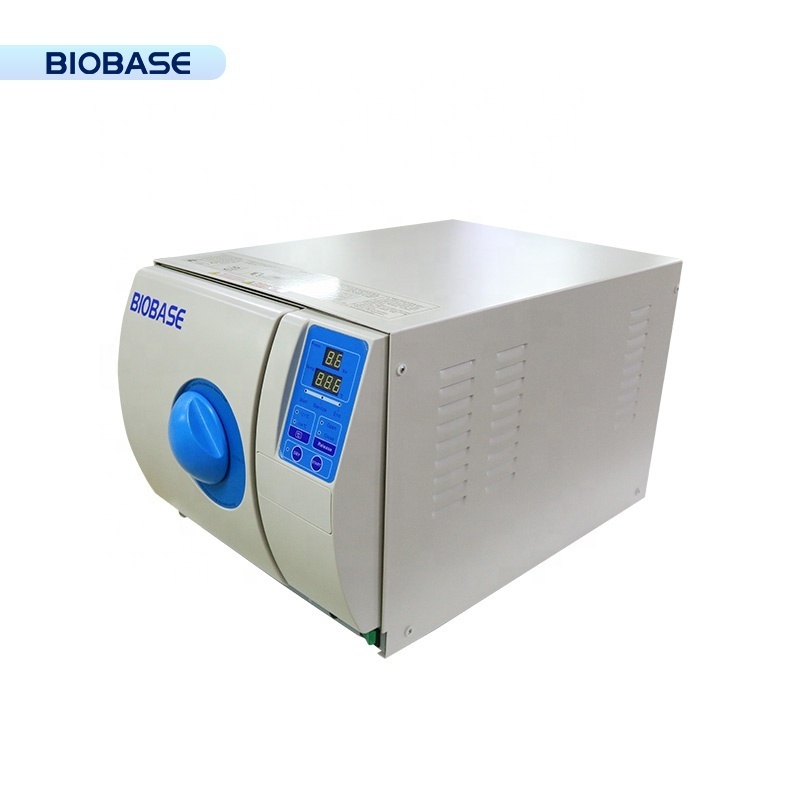

BIOBASE China portable Table Top Autoclave class N Series BKM-Z12N
-
Capacity:
-
12L
-
Chamber Size(mm):
-
p200*360
-
Sterillization Class:
-
Class N
-
Sterilization Temp.:
-
121℃,134℃
-
Drying Procedure:
-
Heat drying
-
Control PrecisionDisplay:
-
LED display
-
Control Precision:
-
Temperature:1℃,Pressure:0.1bar
-
Ambient Temp.:
-
5~40℃
-
Power:
-
16O0W for 220V,1200W for 110V
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Brand Name:
-
biobase
-
Model Number:
-
BKM-Z12N
-
Place of Origin:
-
Shandong, China
-
Product name:
-
BIOBASE China portable Table Top Autoclave class N Series BKM-Z12N
-
Capacity:
-
12L
-
Chamber Size(mm):
-
p200*360
-
Sterillization Class:
-
Class N
-
Sterilization Temp.:
-
121℃,134℃
-
Drying Procedure:
-
Heat drying
-
Control PrecisionDisplay:
-
LED display
-
Control Precision:
-
Temperature:1℃,Pressure:0.1bar
-
Ambient Temp.:
-
5~40℃
-
Power:
-
16O0W for 220V,1200W for 110V
Product Introduction
Application：
Application to all wrapped or non-wrapped, solid, hollow load products type A and porous products or related articles.This sterilizer can be used for dental clinic, laboratory, surgical room, emergency room, ophthalmology, gynecology and steam,cosmetic hospital and so on,
by doctors and professionals.
Features:
1. Adopting European N standard, with thermal vacuum and drying functions, it can be used for A-type hollow instruments and solid instruments. Thermodynamic vacuum guarantees elimination of cold air from the cavity and makes sure that reaches the optimal effect of sterilization.
2. Specially design for dental clinic field, it could sterilize 12 pieces hand piece at same time, simply and efficiently.
3. Microprocessor control, LED display and modularized panel for easy operation.
4. Automatic malfunction detection system makes easy maintaining.
2. Specially design for dental clinic field, it could sterilize 12 pieces hand piece at same time, simply and efficiently.
3. Microprocessor control, LED display and modularized panel for easy operation.
4. Automatic malfunction detection system makes easy maintaining.
Specification
|
Model
|
BKM-Z12N
|
BKM-Z18N
|
BKM-Z24N
|
||
|
Capacity
|
12L
|
18L
|
24L
|
||
|
Chamber Size(mm)
|
p200*360
|
p245*350
|
p245*450
|
||
|
Sterillization Class
|
Class N
|
|
|
||
|
Sterilization Temp.
|
121℃,134℃
|
|
|
||
|
Drying Procedure
|
Heat drying
|
|
|
||
|
Display
|
LED display
|
|
|
||
|
Control Precision
|
Temperature:1℃
|
|
|
||
|
|
Pressure:0.1bar
|
|
|
||
|
safety System
|
Hand lock door
|
|
|
||
|
|
Relief valve in case of over pressure
|
|
|
||
|
|
Pressure or temperature over load protection
|
|
|
||
|
|
Alarm for system failure, finish reminding
|
|
|
||
|
Tray Holder
|
3 pcs ss trays on Ss shelf
|
|
|
||
|
Chamber
|
SUS304
|
|
|
||
|
|
Max working pressure: 2.3bar
|
|
|
||
|
|
Min working pressure: 1.1bar
|
|
|
||
|
|
Max temperature:145℃
|
|
|
||
|
Ambient Temp.
|
5~40℃
|
|
|
||
|
Noise
|
<50dB
|
|
|
||
|
Power
|
16O0W for 220V,1200W for 110V
|
|
|
||
|
Power Supply
|
Standard:220V±10%,50/60Hz;Optional:110V±10%,50/B0Hz.Wiring Method: Plug
|
|
|
||
|
External Size(WD*H)mm
|
560*450*400
|
560*450*400
|
670"450*400
|
||
|
Package Size(WD-H)mm
|
650*515*470
|
650*515*470
|
760°515*470
|
||
|
Gross Weight(kg)
|
38
|
40.5
|
45.5
|
||
