Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Hesheng
-
Model Number:
-
DNWQ600
-
Voltage:
-
380V 50HZ 3P (can order as customer)
-
Dimension(L*W*H):
-
6000*5000*3000mm
-
Weight:
-
6000kgs
-
Warranty:
-
One Year
-
Certification:
-
ISO9001 CE CERTIFICATION
-
Max.Woking dimensions(L*W*H):
-
3200*3200*80mm
-
Blade diameter:
-
350-400mm
-
Table dimensions(L*W):
-
3200*2000mm
-
Table tilting degree:
-
0°-85°
-
Table rotating degree:
-
0°,90°
-
Main motor power:
-
15kw
-
Water consumption:
-
4m3/h
-
Overall dimensions(L*W*H):
-
5800*4500*2800
-
MOQ:
-
1set
-
Delivery time:
-
30Days
Quick Details
-
Type:
-
Bridge Saw
-
Power:
-
18.5-22kw
-
Production Capacity:
-
200-250sqm/20hrs
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Hesheng
-
Model Number:
-
DNWQ600
-
Voltage:
-
380V 50HZ 3P (can order as customer)
-
Dimension(L*W*H):
-
6000*5000*3000mm
-
Weight:
-
6000kgs
-
Warranty:
-
One Year
-
Certification:
-
ISO9001 CE CERTIFICATION
-
Max.Woking dimensions(L*W*H):
-
3200*3200*80mm
-
Blade diameter:
-
350-400mm
-
Table dimensions(L*W):
-
3200*2000mm
-
Table tilting degree:
-
0°-85°
-
Table rotating degree:
-
0°,90°
-
Main motor power:
-
15kw
-
Water consumption:
-
4m3/h
-
Overall dimensions(L*W*H):
-
5800*4500*2800
-
MOQ:
-
1set
-
Delivery time:
-
30Days

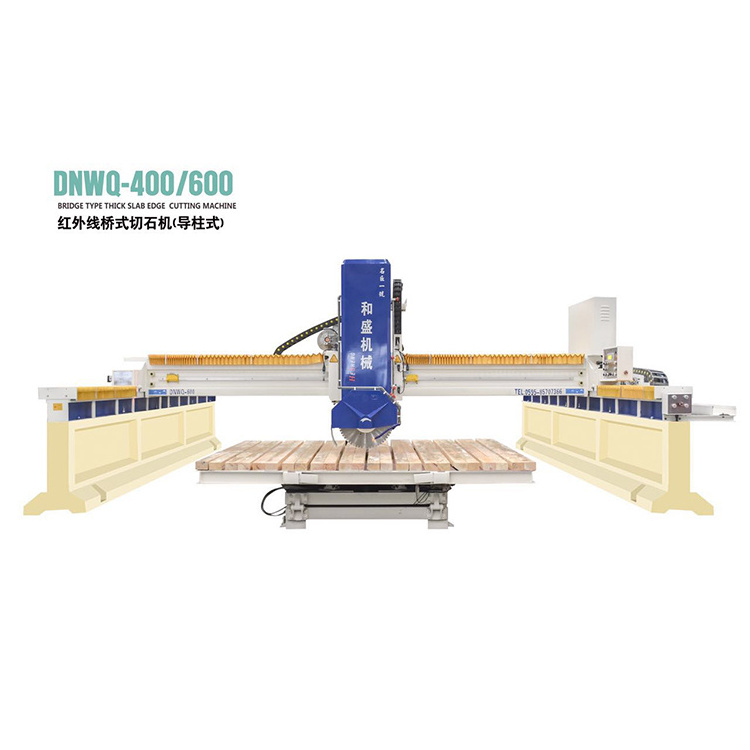

Bridge cutting machine DNWQ-400 is good for cutting marble and granite in a manual or automatic way. It has the ability to cut max 3200mm length, 2000mm width and 65mm (180mm) thickness. The table tilts automatically up to 85 degree. Table rotates 90 degree (90°or 360°) automatically by hydraulic. It is the ideal machine to cut size to size.
Jinjiang Hesheng Machine Co., Ltd. was established in 1983 and is located in Anhai, Jinjiang, Fujian Province. We are professional manufacturer of various kinds of stone processing machinery and high-tech enterprise. We have own R&D department, casting factory, assembly plant and installation service team. We have developed over 18 series of stone processing machinery. Products like hudraulic multi-blade stone cutter, hydraulic bridge type stone cutter, automatic stone slab polishing machine, infrared bridge slab cutter, double blade quarry cutting machine, automatic rough surface machine...about 40 kinds in total, are all enjoy popular selling both domestically and internationally. Our machines have been exported to Turkey, Russia, Vietnam, Austrilia, Greece, Spain, United State, Canada, Mexicio, Egype and many other countries and regions and won striking recognition.
