Quick Details
-
Theory:
-
ultrasonic radar
-
Output:
-
Static capacitance
-
Description:
-
ultrasonic transducer
-
Frequency (Fr):
-
200KHZ±4 KHZ
-
Housing material:
-
ABS
-
Cable length:
-
6 m
Quick Details
-
Usage:
-
Object proximity detection
-
Model Number:
-
DYP-UL003
-
Brand Name:
-
DYP
-
Theory:
-
ultrasonic radar
-
Output:
-
Static capacitance
-
Description:
-
ultrasonic transducer
-
Frequency (Fr):
-
200KHZ±4 KHZ
-
Housing material:
-
ABS
-
Cable length:
-
6 m

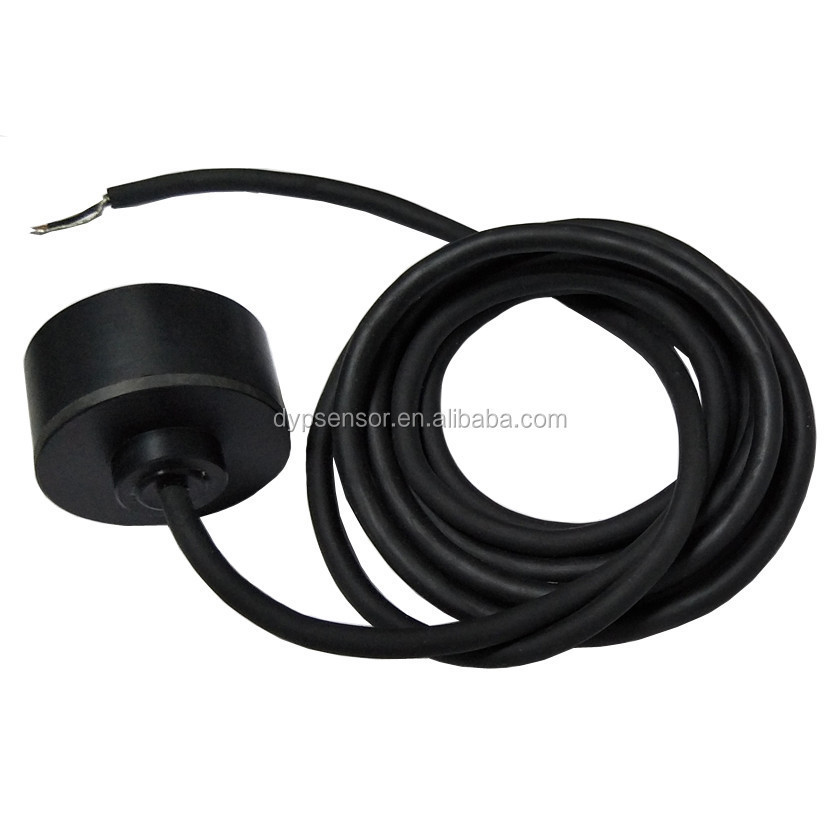

This ultrasonic transducer with 200KHZ±4 KHZ,application in locating,approach measurement,escaped obstruction ,fish finder,etc.
Structure diagram :
Application:
1 , Locating ; 2 , Approach measurement; 3 , Escaped obstruction ; 4 , Fish finder;
Technical parameters:
|
Frequency (Fr) |
200KHZ ± 4 KHZ |
|
Sensitive element material |
PZT-4 |
|
Launch angle beam (-3dB) |
14 ± 1 ° |
|
Transmitting response |
161dB/V |
|
Transmitting response |
-190dB |
|
Shunt impedance(in air) Resistance(Ω) |
500 ± 30% (Ω) |
|
Static capacitance (pf) |
1500 ± 15%(includes cable) |
|
Rated power |
200W |
|
Operating temperature |
-20 ~ 70 °C |
|
Housing material |
ABS |
|
Cable length |
6 m |
|
Weight |
30g |
