Quick Details
-
Product name:
-
induction copper welding machine
-
Application:
-
hardening gear,shaft
-
Advantage:
-
Easy to operate, small size, low weight
-
Type:
-
Semi Automatic
-
Certification:
-
CE ISO
-
Cooling system:
-
water cooling
-
Control:
-
digital control
-
Heating method:
-
IGBT induction heating
-
Design:
-
modular design
-
Function:
-
metal heat treatment
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
DQAUTO
-
Weight (KG):
-
33.5
-
Product name:
-
induction copper welding machine
-
Application:
-
hardening gear,shaft
-
Advantage:
-
Easy to operate, small size, low weight
-
Type:
-
Semi Automatic
-
Certification:
-
CE ISO
-
Cooling system:
-
water cooling
-
Control:
-
digital control
-
Heating method:
-
IGBT induction heating
-
Design:
-
modular design
-
Function:
-
metal heat treatment
Handheld portable induction heating welding machine brazing for copper hot sell in pakistan
Product Overview
Power:
10-60kw
Applications:
metal brazing, annealing, hardening, straightening, curing, paint removal, etc
Frequency:
10-40kHZ
Voltage: 3phase, 380-460V, 50-60HZ
Voltage: 3phase, 380-460V, 50-60HZ
Cooling system:
water cooling,connect with industrial chiller
Application industries:
aviation, metallurgy, tools and equipment,automotive, etc Suitable metals: nearly all conductive metals like copper, steel, iron, brass, aluminum, etc
Features:
portable,handheld,built-in chiller, HHT, digital control, self-fault diagnosis, modular design, etc
PRODUCT SPECIFICATIONS
|
Type and Specification for induction heating machine
|
|
|
|
|
||||
|
Model
|
Input
|
Output
|
Cooling system
|
Dimensions
|
||||
|
|
Power:10KVA
Voltage:3-phase/400V(±20%) Frequency:50-60Hz Current:12-18A |
Power:8KW
Duty cycle:100% Frequency:10-40KHz |
Water pressure:4~6 bar
Flow rate:≥12L/min Water quality:PH:7.0-9.0 Cooling capacity:≥4.5KW Water temperature:25~35℃ |
HHT:1.5kg Product:32kg
|
||||
|
|
Power:20KVA
Voltage:3-phase/400V(±20%) Frequency:50-60Hz Current:24-36A |
Power:16KW
Duty cycle:100% Frequency:10-40KHz |
Water pressure:4~6 bar
Flow rate:≥12L/min Water quality:PH:7.0-9.0 Cooling capacity:≥9KW Water temperature:25~35℃ |
|
||||
|
|
Power:30KVA
Voltage:3-phase/400V(±20%) Frequency:50-60Hz Current:36-54A |
Power:24KW
Duty cycle:100% Frequency:10-40KHz |
Water pressure:4~6 bar
Flow rate:≥12L/min Water quality:PH:7.0-9.0 Cooling capacity:≥13.5KW Water temperature:25~35℃ |
|
||||
|
|
Power:40KVA
Voltage:3-phase/400V(±20%) Frequency:50-60Hz Current:48-72A |
Power:32KW
Duty cycle:100% Frequency:10-40KHz |
Water pressure:4~6 bar
Flow rate:≥12L/min Water quality:PH:7.0-9.0 Cooling capacity:≥18KW Water temperature:25~35℃ |
622*283*350
HHT:3kg Product:34kg
|
||||
|
|
Power:50KVA
Voltage:3-phase/400V(±20%) Frequency:50-60Hz Current:60-90A |
Power:40KW
Duty cycle:100% Frequency:10-40KHz |
Water pressure:4~6 bar
Flow rate:≥25L/min Water quality:PH:7.0-9.0 Cooling capacity:≥22.5KW Water temperature:25~35℃ |
|
||||
|
|
Power:60KVA
Voltage:3-phase/400V(±20%) Frequency:50-60Hz Current:72-108A |
Power:48KW
Duty cycle:100% Frequency:10-40KHz |
Water pressure:4~6 bar
Flow rate:≥25L/min Water quality:PH:7.0-9.0 Cooling capacity:≥27KW Water temperature:25~35℃ |
HHT:6.5kg Product:37kg
|
||||
Pictures of price

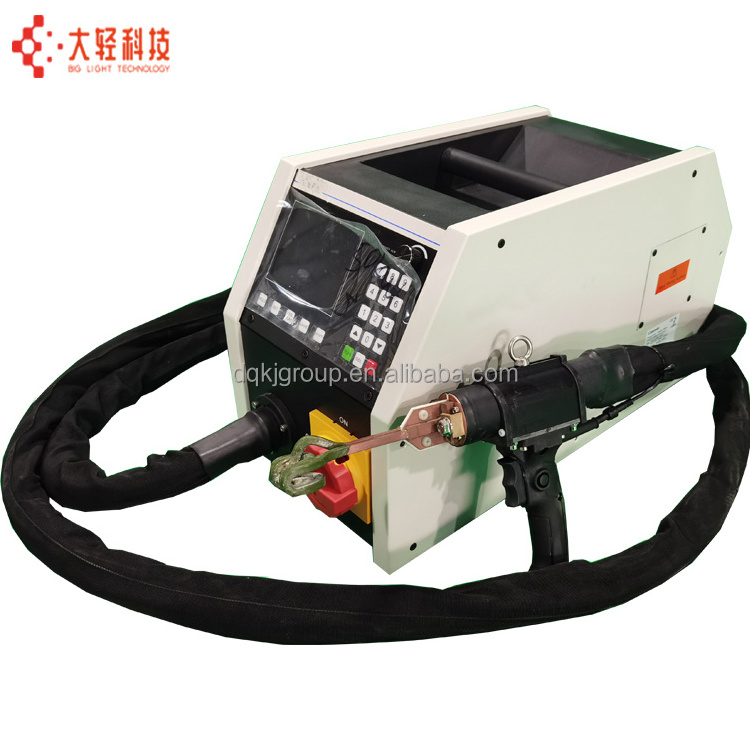

portable induction brazing machine
/induction heating generator for metal heat treatment, easy to operate and handle, small size, and handheld portable.
Applications of price portable induction heating generator for metal heat treatment:
Our induction heating machine can be used for brazing and welding of copper tube, steel bar, rotor coil, rotor bar, heat exchanger, copper wire, etc
Besides, FD-M series induction heating generator can also be used for hardening, annealing, curing, straightening, heat treatment, paint removal, etc.
Our induction heating machine can be used for brazing and welding of copper tube, steel bar, rotor coil, rotor bar, heat exchanger, copper wire, etc
Besides, FD-M series induction heating generator can also be used for hardening, annealing, curing, straightening, heat treatment, paint removal, etc.
