Quick Details
-
Application:
-
Oil well workover
-
Features:
-
fishing tool
-
Production Capacity:
-
5000pcs/month
-
Dimension(L*W*H):
-
-
-
Power:
-
-
-
Voltage:
-
-
-
Weight (KG):
-
35
-
Type:
-
Fishing tool venturi jet type junk baskets
-
Material:
-
Alloy steel
-
Size:
-
1 1/2"AMMT
-
Tool OD:
-
2.125in
-
Nozzle number:
-
1
-
Length:
-
34.25in
-
Thread connection:
-
AMMT
-
Color:
-
As per request
-
Usage:
-
Oil drilling
-
Working medium:
-
Oil Gas Water
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
sanmon
-
Model Number:
-
1 1/2"AMMT
-
Application:
-
Oil well workover
-
Features:
-
fishing tool
-
Production Capacity:
-
5000pcs/month
-
Dimension(L*W*H):
-
-
-
Power:
-
-
-
Voltage:
-
-
-
Weight (KG):
-
35
-
Type:
-
Fishing tool venturi jet type junk baskets
-
Material:
-
Alloy steel
-
Size:
-
1 1/2"AMMT
-
Tool OD:
-
2.125in
-
Nozzle number:
-
1
-
Length:
-
34.25in
-
Thread connection:
-
AMMT
-
Color:
-
As per request
-
Usage:
-
Oil drilling
-
Working medium:
-
Oil Gas Water
Product Description

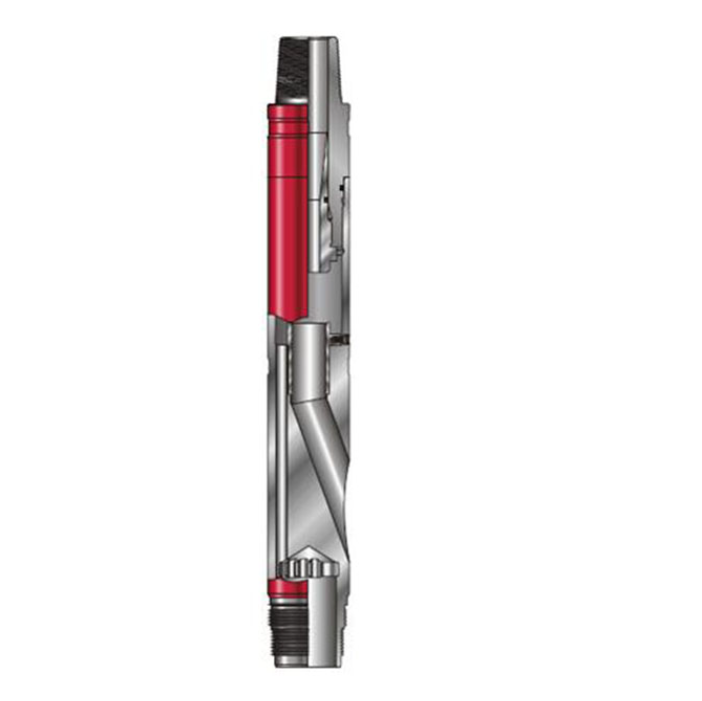

VENTURI JET JUNK BASKETS
The venturi junk basket retrieves junk and debris from the wellbore. When fluid is pumped through the string of the coiled tubing and out through the nozzles in the venturi chamber, a vacuum is created in the venturi chamber. Fluid sucked from the bottom of the tool exits back through the venturi tubes. Most of this fluid mixes with the pressurized fluid to be recirculated around the bottom of the tool.
The Venturi junk basket is a kind of fishing tools applied for the coiled tubing fishing operation. The venturi junk basket is used to salvage debris in the well. When pumping the fluid, the fluid forms in the venturi cavity of the tool once the fluid flows out of the fishing basket nozzle, a vacuum is created. The fluid carrying debris is sucked from the bottom of the tool. The fluid carrying the debris passes through the internal filter of the tool. The venturi cavity circulates again, and the debris remains in the chip holder inside the tool and is carried to the ground with the tool.
Specification
|
Size
|
OD
|
ID
|
Service
|
Top Connection
|
Operating Pressure
|
Min Temp Rating
|
Max Temp Rating
|
|
1 3/4”
|
1.75”
|
0.469”
|
STD
|
1” AMMT Box
|
5,000 PSI
|
0°F
|
350°F
|
|
2 1/16”
|
2.062”
|
1”
|
STD
|
1 1/2” AMMT Box
|
5,000 PSI
|
0°F
|
350°F
|
|
2 1/4”
|
2.062”
|
1”
|
STD
|
1 1/2” AMMT Box
|
5,000 PSI
|
0°F
|
350°F
|
|
2 5/8”
|
2.625”
|
1”
|
STD
|
1 1/2” AMMT Box
|
5,000 PSI
|
0°F
|
350°F
|
|
3 1/8”
|
3.125”
|
1”
|
STD
|
2 3/8” PAC Pin
|
5,000 PSI
|
0°F
|
350°F
|
|
3 1/8”
|
3.125”
|
1”
|
STD
|
2 3/8” REG Box
|
5,000 PSI
|
0°F
|
350°F
|
