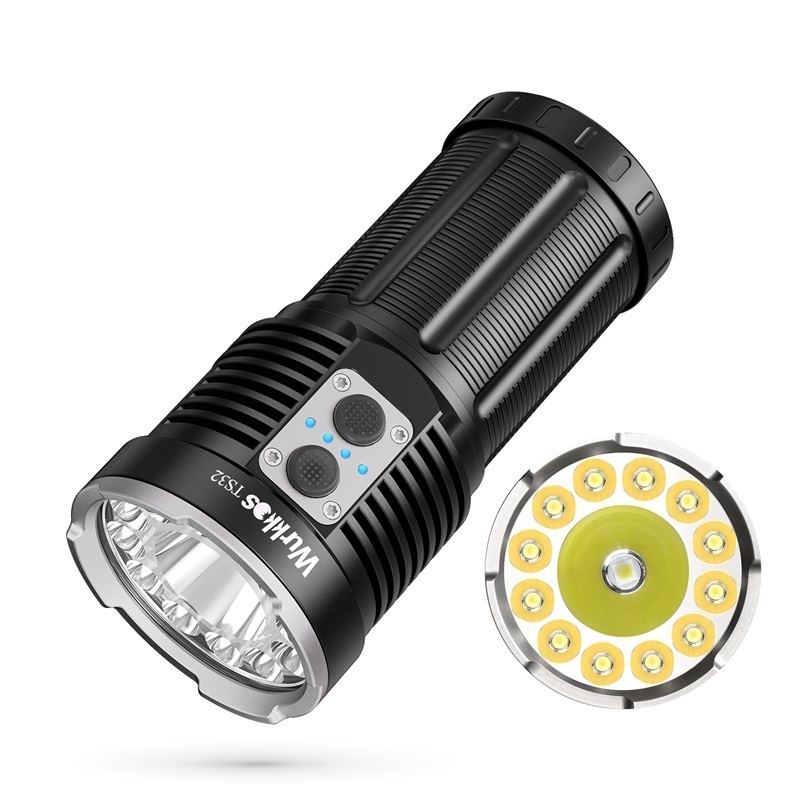

Best Big Head 15000 Lumen High Power Camping Aluminum Led Torch Flashlight

Best Big Head 15000 Lumen High Power Camping Aluminum Led Torch Flashlight

TS32 delivers a maximum output of
15000 lumens with a maximum range of 637 meters .(XPL2+SFT40)
12000 lumens with a maximum range of 590 meters .(LH351D+SFT40)

TS32 Come with 12 pieces around floodlight LEDs and 1 pieces Middle spotlight LED ,

has double side switches to controls each beam,It also provides an improved, user friendly

interface and simple one-hand operation.

It is powered by  triple 21700 Li-ion rechargeable battery and it is rechargeable via

USB-C as well as Reverse charging for optimum convenience. The flashlight features

two mode groups: Group 1 with stepped modes and Group 2 with a stepless ramping mode.

Specifications

*Emitter: 12* XPL2 + 1* SFT40 or 12* LH351D+1*  SFT40
*Reflector: Smooth reflector
*Driver: FET circuit(floodlight)+Buck constant current circuit(Spotlight)
*Beam angle:spotlight 7°, floodlight 78°
*Operating voltage: 2.7V – 4.2V
*Battery options: 3* 21700 Li-Ion battery
*Dimension: 132.4mm (length) x 62.4mm (head diameter)
*Weight: 435 ±1 grams (without battery)
*Flashlight body: Aerospace grade 6061 grade aluminum alloy, CNC manufactured to

hard-anodized to military grade specification type III, anti-abrasive finish to get solid built body,

anti-crash geometry and better heat exchange.
*Toughened mineral glass lens
*Water resistance i.a.w. IP68
*Mode Memory: memorizes the last brightness level used in the general modes (except Strobe)
*Reverse polarity protection to protect against improper battery installation.
*Advanced Temperature Regulation (ATR) technology: ATR will reduce the

brightness level automatically when the driver temperature reaches 55℃ to prevent overheating.

Power Indicator

TS32 has 4 pieces LED indicator between the two side switches,when on, it will turns off automatically

in 32-40 seconds if without any operation.

Remaining battery power shows when Charging:
4 indicator lights on= 100%
3 indicator lights on,1 indicator light flashing=more than 75%
2 indicator lights on,1 indicator light flashing=50%-75%
1 indicator lights on,1 indicator light flashing=25%-50%
1 indicators flashing(0.5hz)=less than 25%

Remaining battery power shows when Reverse Charging:
4 indicator lights on=more than 75%
3 indicator lights on=50%-75%
2 indicator lights on=25%-50%
1 indicator lights on=3%-25%
1 indicators flashing(1hz)=0%-3%

Low Voltage Protection: If the battery’s voltage is lower than 2.7V, TS32 turns off automatically

to avoid battery damage by over discharge.

Operation Instructions

TS32 with dual switches, The upper and lower switches control the operation of spotlight and floodlight respectively.

Group 1: Stepped modes (default)

*Spotlight Modes: Eco(10lm)-Low(100lm)-Mid(350lm)-High(900lm)-Turbo(2000lm)
*Floodlight Modes:Moonlight(1lm)-Eco(30lm)-Low(300lm)-Mid(1000lm)-High(3000lm)-Turbo(14000lm)
*Strobe modes(both beam lights on):strobe-SOS-beacon
When both off:
*From OFF single click to turn ON. Press and hold to cycle through stepped modes.
Double click to activate Turbo mode. While in Turbo mode, single click to turn off.
From OFF, hold 1 second to Eco(spotlight) or Moonlight(floodlight), single click to turn off,keep press and hold to cycle stepped modes.
Triple click to strobe modes,double click to cycle strobe-SOS-beacon,single click to turn off.
*When on:
Single click to turn off.
Press and hold to cycle through stepped modes.
Double click to activate Turbo mode. While in Turbo mode, single click to previous mode.
Triple click to strobe modes,double click to cycle strobe-SOS-beacon.another single click to previous mode.

Group 2: Ramping mode

*Spotlight adjust from 10lm to 2000lm;Floodlight adjust from 1lm to 14000lm
Ramping mode gives you full flexibility to adjust brightness steplessly from Eco/Moonlight to Turbo level.
*When off:
From OFF single click to turn ON. Press and hold to change brightness steplessly (“ramp”). Ramping changes its direction when the button

is being pressed again within 1,5 seconds. The light flashes once when it reaches the lower or upper end of the ramp.
Double click to activate Turbo level, another single click to turn off.
From OFF, hold 1 second to Eco(spotlight) or Moonlight(floodlight), then press and keep holding will adjust brightness steplessly.
Triple click to activate Strobe mode, double click to cycle strobe-SOS-beacon,another single click to turn off.
*When on:
Single click to turn off
Press and hold to change brightness steplessly.
Double click to activate Turbo level, another single click to previous modes.
Triple click to strobe modes,double click to cycle strobe-SOS-beacon.another single click to previous mode.
Toggle between Group 1 and Group 2
When ON Quick quadruple click to change between both mode groups. 3 flashes will confirm the mode group changed.

*Electronic Lockout
TS32 comes with a lockout function to prevent accidental activation, e.g. in one’s pocket or backpack.
From OFF quadruple click to active lockout. Another quadruple click to deactive lockout again and return to the previous

mode setting. When the light is locked, the main LED only blinks two times to show the status of being locked. While in lockout

mode, hold the side switch to use Eco mode.

Packaging Details

Product payment terms:

1) Accepted sample and small order(Trial order)
2) Ready to ship out within by sea, EMS, DHL, FedEX, UPS,as soon as we receive payment.
3) We accept T/T, Western Union,Paypal,LC

Return &refund terms:
1) The items have 12months warranty, defective products can be changed during the warranty.
2) Defective products must be returned within 30days from the shipping date, we will change another one for you.

After sale service & promise:
1. Supply oem&odm order, independent QC department , 3 times of quality checking
2.100% percent of pass before shipping.
