1. 60S Delay
2. 20S Delay
- Product Details
- {{item.text}}
Quick Details
-
Input Voltage(V):
-
DC12V
-
Lamp Luminous Flux(lm):
-
750
-
CRI (Ra>):
-
80
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Homer
-
Model Number:
-
BL300S25PIR
-
Color:
-
Silvery
-
LED Light Source:
-
SMD2835
-
keyword:
-
motion sensor led panel light
-
length:
-
300/500/800/1000 mm
-
Material:
-
Aluminum +PC
-
lifespan:
-
30000 h
-
IP:
-
20
-
Angle:
-
120 degree
-
Feature:
-
heat-dissipation
Quick Details
-
Support Dimmer:
-
NO
-
Application:
-
Living Room
-
Install Style:
-
surface mounting
-
Input Voltage(V):
-
DC12V
-
Lamp Luminous Flux(lm):
-
750
-
CRI (Ra>):
-
80
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Homer
-
Model Number:
-
BL300S25PIR
-
Color:
-
Silvery
-
LED Light Source:
-
SMD2835
-
keyword:
-
motion sensor led panel light
-
length:
-
300/500/800/1000 mm
-
Material:
-
Aluminum +PC
-
lifespan:
-
30000 h
-
IP:
-
20
-
Angle:
-
120 degree
-
Feature:
-
heat-dissipation

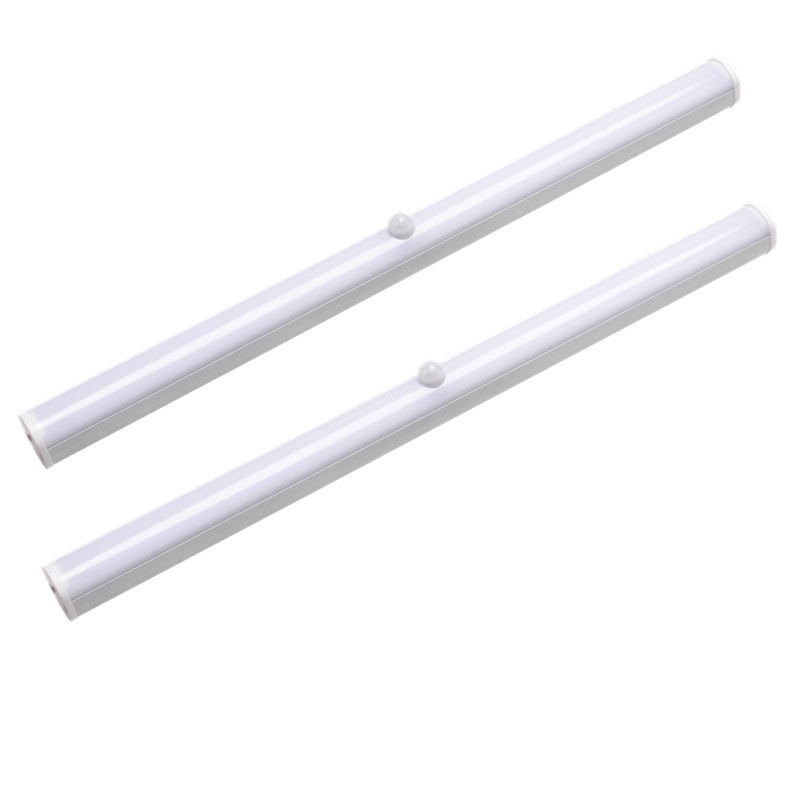

Product Description
USB Chargeable Battery
PIR motion sensor function
the detecting angle can be adjusted
All-aluminum house
facilitate heat dissipation
on automatically when people approaching, the light will be turned off after 20 seconds when people leave the detecting range.
Second: The detection distance is≤3m and time delay is 20 seconds.
Third: The detecting angle is 60 degrees from the center of the product.
Fourth: The light is off when the switch is placed in the middle(OFF).
Fifth: The light is turned on(without sensor function)when the switch is placed left(ON).
Sixth: The light is turned on by sensor switch(built-in optical sensor switch) when the switch is placed right(AUTO).
Detailed Images
Introduction of product advantages or application effect or application mode
PIR function
USB Chargeable Battery
This under counter lighting is suited for an array of applications – sink, display, bookcase, hutch, workbench, pantry, under
closet, etc.
closet, etc.
Aluminium alloy housing
All-aluminum house facilitate heat dissipation,
Milky diffuser
makes the lighting more soft.
Easy to Install:
It can be
3M adhesive soft or magnet+3M adhesive
Product Presentation
-
Size introduction and size picture
|
Product specifications
|
BL300S25PIR
|
|
Material
|
Aluminum+PC+Galvanized sheet+magnet
|
|
Parts
|
Aluminum battery+Pearl cotton
|
|
Dimensions
|
18mm(W)x22mm(H) x300mm(L)
|
|
Light Source:
|
High brightness SMD 2835LED
|
|
Operating Temperature:
|
-20°C to 45°C - Indoors
|
|
Warranty:
|
2 years with proper installation
|
|
Installation:
|
adsorption
|
|
Ingress Protection Grade:
|
IP20
|
|
Technical - Electrical Data
|
BL300S25-PIR
|
|
Rated wattage(MAX)
|
1.5Ｗ
|
|
Rated lamp efficacy
|
85lm/w
|
|
Led Current
|
60mA
|
|
Rated voltage
|
5VDC
|
|
Led quantity
|
30PCS
|
|
Luminous Flux
|
130lm
|
|
Color Temp
|
2700-6500k
|
|
Angle
|
120°
|
|
Lifespan
|
30000 H
|
Certificate
Our factory is approved by BSCI,The light has CE,ROHS and GS certificate by TUV and SGS
Related Products
Company Introduction
NINGBO HOMER ELECTRONICS LIGHTING CO.,LTD is located in Ningbo city and established in year of 2010,We specialized in manufacturing cabinet lights and
LED IP44 bathroom mirror light and
LED mirror ,our R&D can meet various customized requirements from different market like EU,North America and South-east Asia,etc.,and the products ae certified and in compliance with target market's regulation like UL,CE,ROHS,GS and ERP etc.
HOMER is BSCI audited and acquire the certificate,and the management system is strictly implemented according ISO9001,We invest large tiem and effort to phase in advanced production line,testing device and quality control team.
Packing&Shipping
Exhibition
Guangzhou International Lighting Exhibition
HK lighting fair (Autumn);
Lignt+Building Frankfurt Exhibition;
HK lighting fair (Autumn);
Lignt+Building Frankfurt Exhibition;
FAQ
1. Could I have prices of your products?
Welcome. Pls feel free to send us an email here. You will get our reply in 24 hours
2. Can we print our logo/website/company name on products?
Yes, please advise the size and Pantone Code of the logo.
3. What's the lead time for regular order?
30 days for order quantity lower than 200pc; For more quantity, usually 40 days.
4. Can I get a discount?
Yes, for the order quantity more than 500 pcs, please contact us to get the best price.
5. Do you inspect the finished products?
Yes, each step of production and finished products will be came out inspection by QC department before shipping.
