Quick Details
-
Application:
-
various handling
-
Rated Lifting Moment:
-
6.4T.M
-
Span:
-
9.1 Meters
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
CLW
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support, Free spare parts
-
Steering:
-
Optional: right hand, left hand
-
Driving types:
-
Optional: 4X2; 4X4; 6X2;6X4;6X6;8X4
-
Boom types:
-
Optional: knuckle boom; telescopic boom
-
Max lifting height:
-
13 meters
-
Max lifting weight:
-
3.2 tons
-
Chassis:
-
Optional:Dongfeng; Sinotruck;FAW;FOTON;FORLAN;JAC,JMC,etc
-
crane brand:
-
Optional: CLW, SANY, DONGFENG,
-
Crane model:
-
st170
-
Product name:
-
3.2 tons knuckle boom crane
-
Certification:
-
CCC ISO BV SASO ADR
Quick Details
-
Rated Loading Capacity:
-
3200kg
-
Max. Lifting Height:
-
13 Meters
-
Engine Brand:
-
JMC
-
Application:
-
various handling
-
Rated Lifting Moment:
-
6.4T.M
-
Span:
-
9.1 Meters
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
CLW
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support, Free spare parts
-
Steering:
-
Optional: right hand, left hand
-
Driving types:
-
Optional: 4X2; 4X4; 6X2;6X4;6X6;8X4
-
Boom types:
-
Optional: knuckle boom; telescopic boom
-
Max lifting height:
-
13 meters
-
Max lifting weight:
-
3.2 tons
-
Chassis:
-
Optional:Dongfeng; Sinotruck;FAW;FOTON;FORLAN;JAC,JMC,etc
-
crane brand:
-
Optional: CLW, SANY, DONGFENG,
-
Crane model:
-
st170
-
Product name:
-
3.2 tons knuckle boom crane
-
Certification:
-
CCC ISO BV SASO ADR
new design 5 tons Telescopic Boom Truck with Auger Drill Crane on yuhcai 130hp cdw cargo truck for hot sales
Our crane CKD or SKD by container is available
Truck Features :
1. Sinotruck howo high quality chassis, 4X2 drive type, LHD or RHD
2. Yuchai diesel 130hp engine, Euro 2 or Euro 3 emission standard
3. Choose to fix 5 tons telescoic boom crane or 5
tons
articulated boom crane with timber grab, brick grab or drill
4. CCC ISO BV approved, accept customization service.

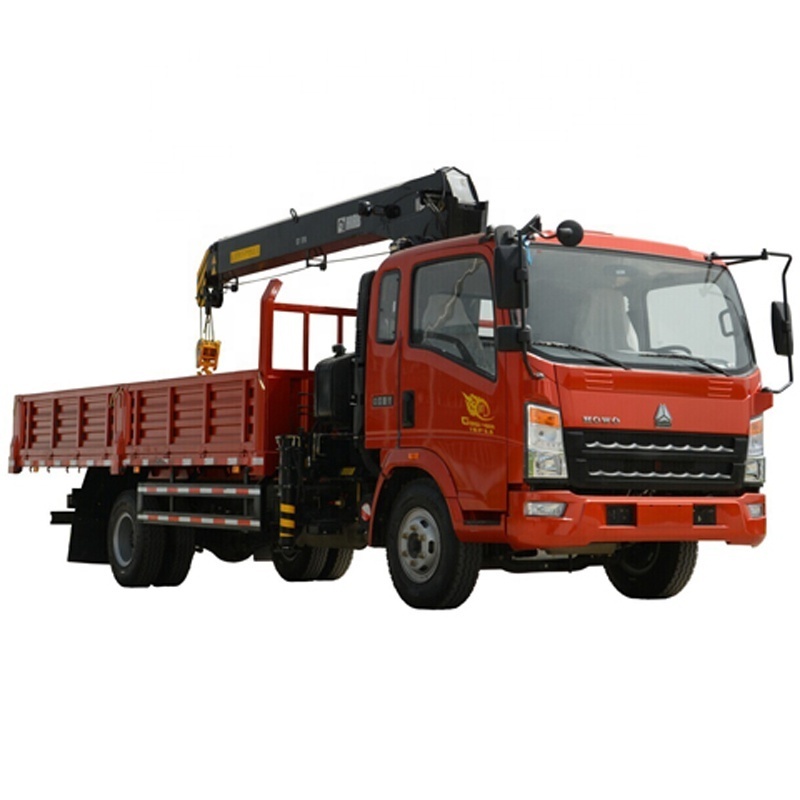

new design the cheapest howo 5 tons 4x2 rhd or lhd hiab st170 3.2 tons hydraulic jib 3 sections crane boom truck for hot sales
|
Main Technical Parameter |
|||
|
Product Name |
3.2 tons boom crane on HOWO cargo truck |
Overall Dimension(L*W*H)(mm) |
5800*2500*3300 |
|
Wheelbase(mm) |
3360 |
Compartment Dimension(L*W*H)(mm) |
35000*2300*800 |
|
F/ R suspension(mm) |
1032/1663 |
Front/Rear tread(mm) |
1940/1860 |
|
Number of Axles |
2 |
Curb weight(kg) |
6790 |
|
Approach/ departure angle (° ) |
32/15 |
Max Speed (km/h) |
90 |
|
Cab capacity |
3 |
Cab Type |
Flat proof, one and half row |
|
Chassis Parameter |
|||
|
Chassis Model |
ZZ1041TSGA23 |
Chassis manufacturer |
HOWO Motor Co., Ltd |
|
Gear Box |
5 shiftS |
Transmission type |
Manual |
|
Steering Type |
LHD |
Traction Type |
4*2 |
|
Brake System |
Air brake |
Number of Tire |
6 with a spare |
|
Leaf Spring number |
9/10+8 |
Tire size/type |
700R16 |
|
Engine parameter |
|||
|
Engine Model |
CY4102 |
Engine manufacturer |
Chao chai Engine |
|
Fuel type |
diesel |
Displacement(ml) |
3860 |
|
Emission stand |
Euro 2 or Euro 3 |
Power(kw) |
88(120hp) |
|
Operation System |
Electrically Hydraulic Control |
Electric system |
24V |
|
Equipment & Performance |
1 .Equipped with straight arm st170 3 arms Crane, |
||
|
2. Max lift quality:3200kg, Max Lifting Moment:7.3(T.M) |
|||
|
3. Work radius:7.3m, Max lift height:10 m, span:5.2m |
|||
|
4.Operate left or right, up or down, and 360° rotation ,reliable quality, long service life, work fast |
|||
|
5. H- type front and rear hydraulic outrigger |
|||
new design the cheapest 3.2 tons knuckle boom crane on howo cargo truck for hot sales production showing:
About our crane on truck:
Our company is a professional manufacturer in special purpose truck area, guarantee all goods Brand-New and China-Origined.
1. Chassis Model: Dongfeng,FAW,Foton,Sinotruck,JAC,JMC,etc.
2. Engine Model:Cummin,Yuchai,Weichai,Jiechai,etc.
3. Drive Model: 4*2, 6*2,6*4, 8*4, and three axis crane semi-tailer.
4. Crane rotation angle: 360 degree with hydraulic systems.
5. Telescopic/Articulated boom crane loading weight : 2T,3.2T,4T,5T,6.3T,8T,10T,12T,14T,16T,20T 25T or others.
6. Truck Cargo length: 3m-13m.
7. Crane Brand optional: CLW, ZOOMLION, SMJ, SANY or others.
8. Crane Installation Site: Rear or Middle part.
