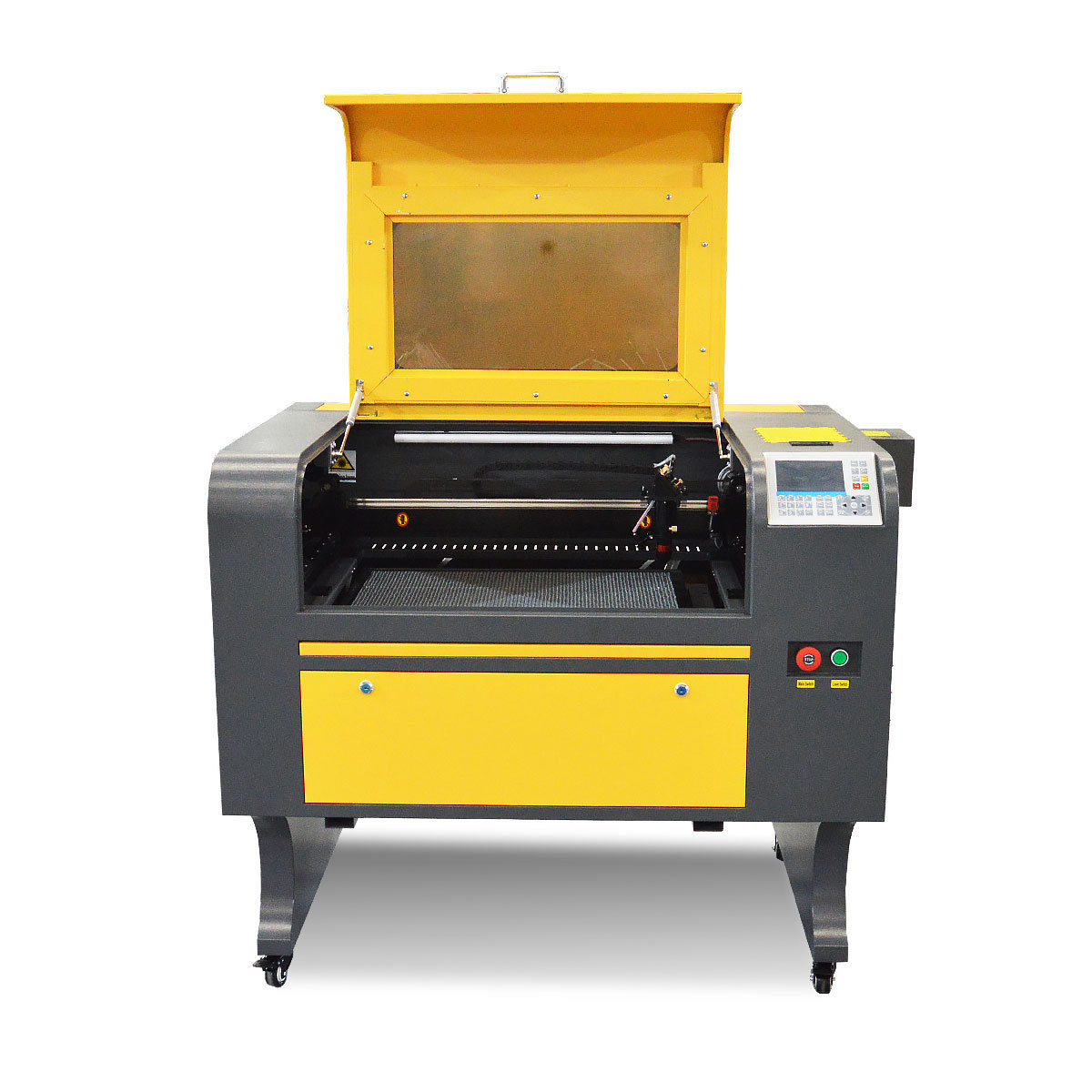

WER-4040 M2 50W CO2 Laser Engraving Cutting Machine for Non-metal

WER-4040 M2 50W CO2 Laser Engraving Cutting Machine for Non-metal

FOB Reference Price: Get Latest Price

≥1 Sets

US $580

≥3 Sets

US $520

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Graphic Format Supported:: AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT

Cooling Mode:: WATER COOLING

Place of Origin:: China

Dimension(L*W*H):: 1050*750*950mm

Weight (KG):: 75 KG

After Warranty Service:: Video technical support

Certificate:: CE

Showroom Location:: None

Marketing Type:: Ordinary Product

Quick Details

Engraving Area:: 400mm*600mm

Laser Type:: CO2

Engraving Speed:: 500mm/s

Graphic Format Supported:: AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT

Cooling Mode:: WATER COOLING

Place of Origin:: China

Dimension(L*W*H):: 1050*750*950mm

Weight (KG):: 75 KG

After Warranty Service:: Video technical support

Certificate:: CE

Showroom Location:: None

Marketing Type:: Ordinary Product

Product Description

Precise engraving. Professional engraving optical lens with more stable light beam. Equipped with red light position,making locating more convenient and precise. High-quality laser tube,laser power supply, reduce the failure rate. Data output is more fully due to high-performance motherboard with anti-interference. Lift platform is optional, the lifting height can be up to 300 mm.Rotary carving fittings can be optional according to customer requirements, to solve the difficulties in carving for cylinder and irregular products. Compatibility of the software is very strong for friendly human-computer interface and demand of the industries on-the-spot.

Applicable Industries: advertising decoration, craft and gifts, packaging and printing, toys, electron, model, building decoration, etc.
Applicable Materials: acrylic, double-color sheet, MDF, non-metal materials like leather, cloth, rubber, wooden boards, bamboo products, organic glass, platics,marble, jade, crystal, etc.

42 motor+X-axis linear guide+with M2 motherboard.

42 motor+X-axis linear guide+with Ruida motherboard

57 motor+X/Y-axis linear guide+with Ruida motherboard

50W/60W/80W/100W

1035740650mm

60W/80W/100W/130W/150W

14001000950mm

Yellow, Gray, Red

The default color is yellow. If other colors are required, please contact us online

Details Images

Laser Head

Industrial grade laser head;

Red-light positioning;

Air assistant to prevent burning;

Automatic focus (Optional).

Laser Tube

Sealed CO2 glass laser tube;

Long lifespan;

Steady performance.

Motion Module

Stepper motor;

Synchronized belt reducer (57 motor);

Linear guide rail ensure smooth running.

low noise and high precision;

High wear-resistance belt.

Lifting Platform

Electric adjustable work platform for different height of work pieces;

Adjustable height at 20cm max.

Control Panel

3.5" display screen;

Off line operation, 128M storage;

Visable dynamical processing track;

Graphic online preview.

Interior Configuration

Rulda mainboard: continue engrave after power break; engrave on slope;

JMC driver: unique speed adaptive circuit;

Switch power and laser power supply.

Exhaust Fan

Mounted on the back.

Extract fume and odor out of the machine.

Product Paramenters

Model	WER4060 /6040	WER-6090 /9060
Laser Power	50/60/80/100W	60/80/100/130/150W
Working Area	600*400 mm	900*600mm
Engraving Thickness	0-2mm (depends on materials)
Engraving Speed	1-450mm/s	1-1000mm/s
Cutting Speed	1-50mm/s	1-200mm/s
Cutting Thickness	0-20mm (depends on materials)
Locating Precision	≤0.01mm
Lift Range	Electric adjustment 0-270mm	Electric adjustment 0-200mm
Controller	RUIDA/M2 control system
Power Supply	AC220V/110V 50HZ
Laser Type	sealed CO2 laser tube
Cooling Mode	Water cooling protection system
Water Protection	Yes
Positioning Way	Red light positioning
Work Platform	Fixed/Honeycomb/Lift platform
Output Software	Corellaser/Autolaser/RD works V8/LaserCAD
System Environment	WindowsXP/win7/8/10

Package Information

Model	WER4060/6040	WER-9060/6090
Machine Dimension	1035740650mm(50W) 1400470650 mm (60/80/100W)	14001000950mm
Net Weight	75kg	130kg
Packaging	Standard plywood case
