Quick Details
-
Application:
-
Office Building
-
Design Style:
-
Contemporary
-
Type:
-
suspended platform
-
Place of Origin:
-
China
-
Brand Name:
-
RUIBIAO
-
Model Number:
-
ZLP250/500/630/800/1000
-
Product name:
-
Wholesaler ZLP Mototized Scaffolding
-
Suspension Mechanism:
-
Galvanized/Aluminum alloy/Paint
-
Safety Lock:
-
Stainless steel lock cylinder (surface "Dacro" process)
-
Electrical Control Box:
-
Schneider electric components
-
Wire rope 1:
-
Diameter = 8.3mm
-
Wire rope 2:
-
100m * 4 pcs
-
Rated load:
-
250kg/500kg/630kg/800kg/1000kg
-
Working height:
-
0-100m
-
Power supply:
-
220V/380V
-
safety equipment:
-
Emergency stop / speed limit / broken rope / upper limit / manual
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Free spare parts
-
Project Solution Capability:
-
total solution for projects
-
Application:
-
Office Building
-
Design Style:
-
Contemporary
-
Type:
-
suspended platform
-
Place of Origin:
-
China
-
Brand Name:
-
RUIBIAO
-
Model Number:
-
ZLP250/500/630/800/1000
-
Product name:
-
Wholesaler ZLP Mototized Scaffolding
-
Suspension Mechanism:
-
Galvanized/Aluminum alloy/Paint
-
Safety Lock:
-
Stainless steel lock cylinder (surface "Dacro" process)
-
Electrical Control Box:
-
Schneider electric components
-
Wire rope 1:
-
Diameter = 8.3mm
-
Wire rope 2:
-
100m * 4 pcs
-
Rated load:
-
250kg/500kg/630kg/800kg/1000kg
-
Working height:
-
0-100m
-
Power supply:
-
220V/380V
-
safety equipment:
-
Emergency stop / speed limit / broken rope / upper limit / manual
Wholesaler ZLP Mototized Scaffolding High Rise Window Cleaning Platform Facade Cleaning Robot Building Painting
The Suspended Platform is an aerial work device that carries personal safety and quality equals life. Our company has set up a special inspection department, full-time inspection post and inspection personnel, and designed and manufactured the inspection platform of Suspended Platform according to the national testing platform standard. Each hoist, safety lock and electric box ready for delivery will pass strict Testing to ensure that every Suspended Platform that reaches the customer's hands achieves a 100% yield
ZLP series electric baskets have passed the test of various complicated conditions with high-quality design concept and mature performance quality. Compared with similar products, they have the advantages of safety, economy, high efficiency and convenience.
A.Parameter of the suspended platform
| Name | Technical parameter of construction platform | |||||
| Model | ZLP250 | ZLP500 | ZLP630 | ZLP800 | ZLP1000 | |
| Rated load | 500kg | 500KG | 630KG | 800KG | 1000KG | |
| Lifting speed | 8-10m/min | 8-10m/min | 8-10m/min | 8-10m/min | 8-10m/min | |
|
Platform Dimension
L×W×H(mm) |
2500(2.5m)
×690×1120 |
5000(2+3m)
×690×1120 |
6000(1+2+3m)
×690×1120 |
7500(2.5m*3)
×690×1120 |
7500(3*2.5)
×690×1120 |
|
| Lifting Height | 100M | 100M | 100M | 100M | 100M | |
| Cable | 100M | 100M | 100M | 100M | 100M | |
| Steel rope | Dia:8.3mm | Dia:8.3mm | Dia:8.3mm | Dia:9.1mm | Dia:9.1mm | |
| Hoist | Power | 1.5KW*2 | 1.5KW*2 | 1.5KW*2 | 1.8KW*2 | 1.8KW*2 |
| Voltage | 380V/220V | 380V/220V | 380V/220V | 380V/220V | 380V/220V | |
| Safety lock | Permission force of | 30KN | 30KN | 30KN | 30KN | 30KN |
| impact | 3°~8° | 3°~8° | 3°~8° | 3°~8° | 3°~8° | |
| Counterweight | 500kg | 1000KG | 1000KG | 1000KG | 1300KG-1500kg | |
| Type |
1/Hot galvanizing,Aluminum alloy
2/Cement weight,All-inclusive iron counterweight,Cast iron counterweight 3/Safety device: emergency stop device, speed limit protection, tilt protection, rope break protection, upper limit protection, manual release |
|||||

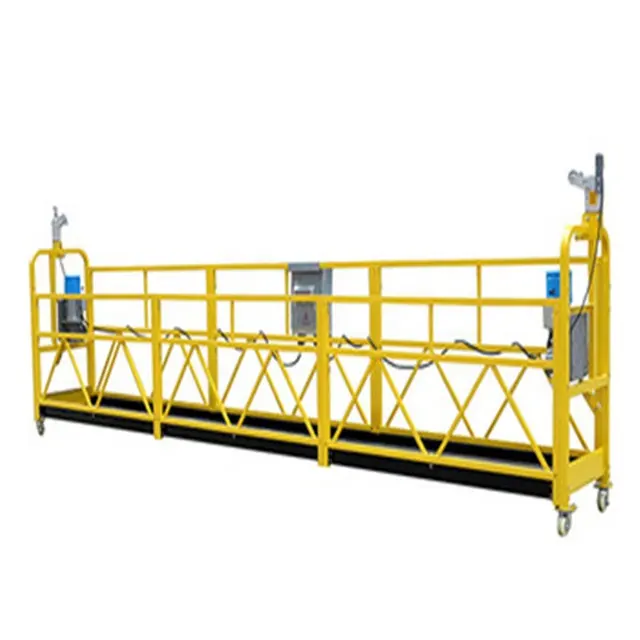

B.Pictures of the suspended platform
C.Advantages of hoist/distribution box/security lock
- Hoist -reinforcing box, internal gear plate, rope splitter and other important components truly solve the drawbacks of the traditional hoist, reducing costs, increasing service life and eliminating maintenance troubles.
- Distribution box - a variety of protection devices, all using Zhengtai electrical components. Waterproof, automatic limit, leakage protection, overheat protection, emergency braking, current overload protection, with thousands of tests, very high stability
- Safety lock - stainless steel lock core, more durable than ordinary cast steel lock core, the shell is treated with Dacromet process to avoid rust corrosion after prolonged use
D.Drawing of the suspended platform
.The main purposes of the suspended platform
- Exterior wall construction and decoration of high-rise building, installation of panel wall and structural members of exterior wall.
- Repair, maintenance and cleansing of exterior wall of high-rise building.
- Construction, inspection, repair and maintenance of large project, for instance: chimney, dam, bridge and head frame.
- Welding, cleansing and oil-painting of large ship.
- Fabrication and installation of bulletin board on buildings at heights.
