Quick Details
-
30hp outboard motor:
-
30hp outboard engine
-
Engine type:
-
2 Cylinder Gasoline Engine
-
Brand:
-
TWINSUN
-
Ignition System:
-
CDI
-
Starting system:
-
Manual Start
-
Application:
-
Yacht
-
Cooling Method:
-
water cooling
Quick Details
-
boat engine:
-
yacht engine
-
outboard motor:
-
outboard engine
-
outboards:
-
twinsun outboard motor
-
30hp outboard motor:
-
30hp outboard engine
-
Engine type:
-
2 Cylinder Gasoline Engine
-
Brand:
-
TWINSUN
-
Ignition System:
-
CDI
-
Starting system:
-
Manual Start
-
Application:
-
Yacht
-
Cooling Method:
-
water cooling
Twinsun Main Categories
Product Description
Specification
|

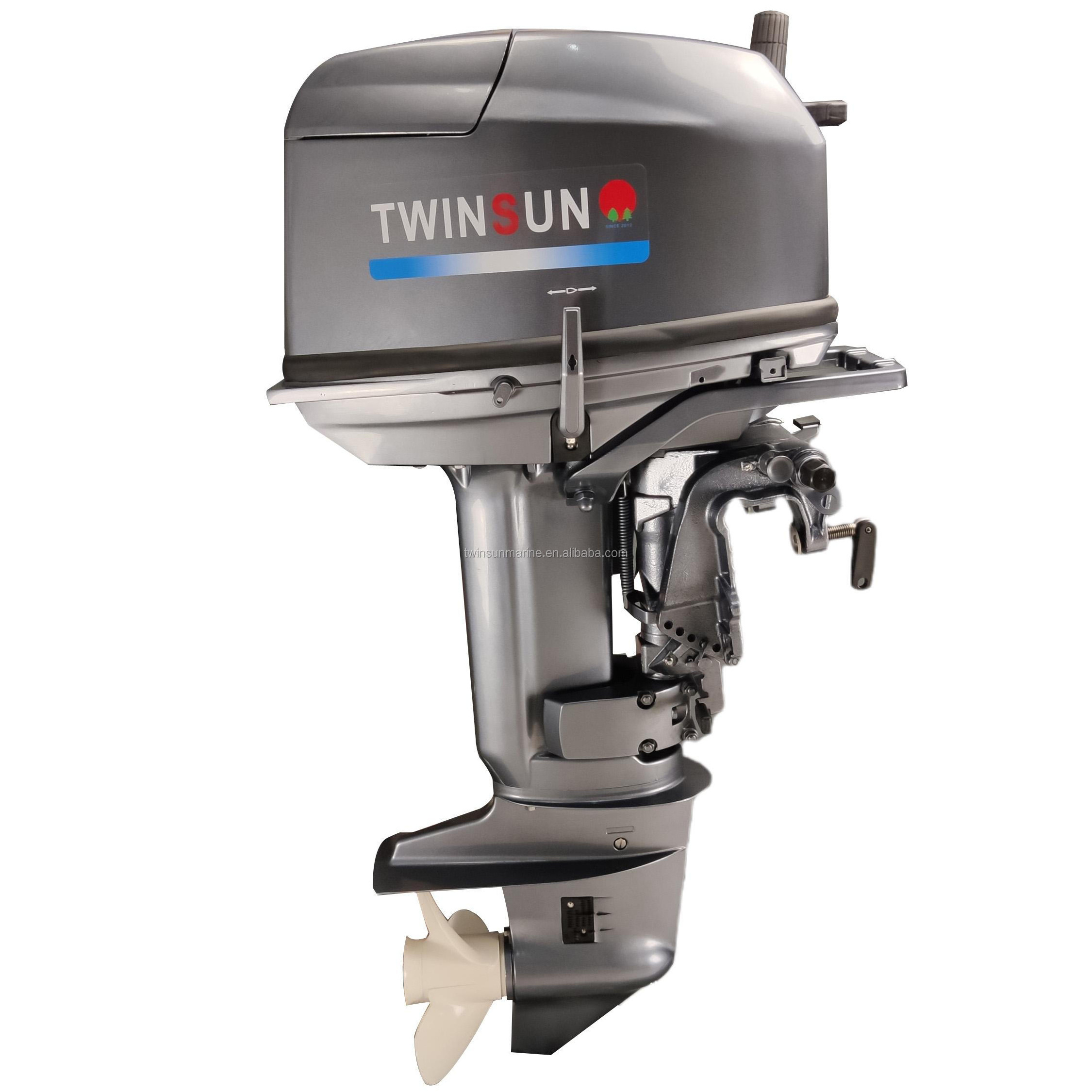

TWINSUN 2 Stroke 30hp Long Shaft Chinese Shaft Outboard Engine Boat Motor Outboard Motor
Horse power of 2 stroke and 4 stroke outboard motor from 2.5hp-75hp is available,welcome to contact us for more information.
|
|
|
|
|
|
|||||
|
Overall length
|
|
|
mm(in.)
|
720(28.4)
|
|
|||||
|
Overall width
|
|
|
mm(in.)
|
470(18.5)
|
|
|||||
|
Overall heigth
|
|
|
mm(in.)
|
1230(48.4)
|
|
|||||
|
Transom heigh
|
|
|
mm(in.)
|
423(16.7)
|
|
|||||
|
Weight
|
|
|
kg
|
52
|
|
|||||
|
Full throttle operating range
|
|
|
r/min
|
4500-5500
|
|
|||||
|
Maximum output:kw(HP)@r/min
|
|
|
|
22(30)@5000
|
|
|||||
|
Idling speed (in neutral)
|
|
|
r/min
|
1000-1100
|
|
|||||
|
Engine type
|
|
|
|
2-stroke
|
|
|||||
|
Cylinders
|
|
|
|
2
|
|
|||||
|
Displacement
|
|
|
cm³
|
498
|
|
|||||
|
Bore x stroke
|
|
|
mm(in.)
|
67x60(2.64x6)
|
|
|||||
|
Ignition system
|
|
|
|
CDI
|
|
|||||
|
Control system
|
|
|
|
Tiller
|
|
|||||
|
Starting system
|
|
|
|
Manual
|
|
|||||
|
Gear positions
|
|
|
|
Forward-neutral-reverse
|
|
|||||
|
Gear ratio
|
|
|
|
1.85(24/13)
|
|
|||||
|
Trim and tilt system
|
|
|
|
Nanual tilt
|
|
|||||
|
Integral fuel tank capicity
|
|
|
L
|
/
|
|
|||||
|
Separate fuel tank capicity
|
|
|
L
|
24
|
|
|||||
|
Maximum fuel waste
|
|
|
L/h
|
11
|
|
|||||
|
Engine oilcapacity/withoutoilfilter
|
|
|
L
|
Fuel:oil ratio:50:1
|
|
|||||
|
Gear oil capacity
|
|
|
ML
|
320
|
|
|||||
|
Propeller options*
|
|
|
in
|
3-9 7/8"×12"
|
|
|||||
Recommend Outboard Motor 2 Stroke
Recommend Outboard Motor 4 Stroke
