Quick Details
-
Material:
-
Plastic, Steel, SGCC 1.2mm
-
Brand Name:
-
EDNSE
-
Place of Origin:
-
Guangdong, China
-
Size Diemension:
-
550x430x176mm,21.65"x16.9"x6.9"
-
M/B support:
-
(12"x9.6")(9.6"x9.6")(6.7"x6.7")
-
PSU support:
-
1U,2U single standard or ATX single psu
-
Customized Items:
-
logo,and others
-
sheet metal thickness:
-
1.2mm
-
plastic material type:
-
ABS
-
drive bays:
-
hot plug 24x3.5"HDD
-
backplane:
-
maximum 12gbs,support sas or sata HDD.
-
system cooling:
-
middle 4x8025 PWM cooling fan,rear 2x8025 PWM cooling fan
Quick Details
-
Application:
-
Server
-
Type:
-
Rack
-
Form Factor:
-
ATX
-
Material:
-
Plastic, Steel, SGCC 1.2mm
-
Brand Name:
-
EDNSE
-
Place of Origin:
-
Guangdong, China
-
Size Diemension:
-
550x430x176mm,21.65"x16.9"x6.9"
-
M/B support:
-
(12"x9.6")(9.6"x9.6")(6.7"x6.7")
-
PSU support:
-
1U,2U single standard or ATX single psu
-
Customized Items:
-
logo,and others
-
sheet metal thickness:
-
1.2mm
-
plastic material type:
-
ABS
-
drive bays:
-
hot plug 24x3.5"HDD
-
backplane:
-
maximum 12gbs,support sas or sata HDD.
-
system cooling:
-
middle 4x8025 PWM cooling fan,rear 2x8025 PWM cooling fan

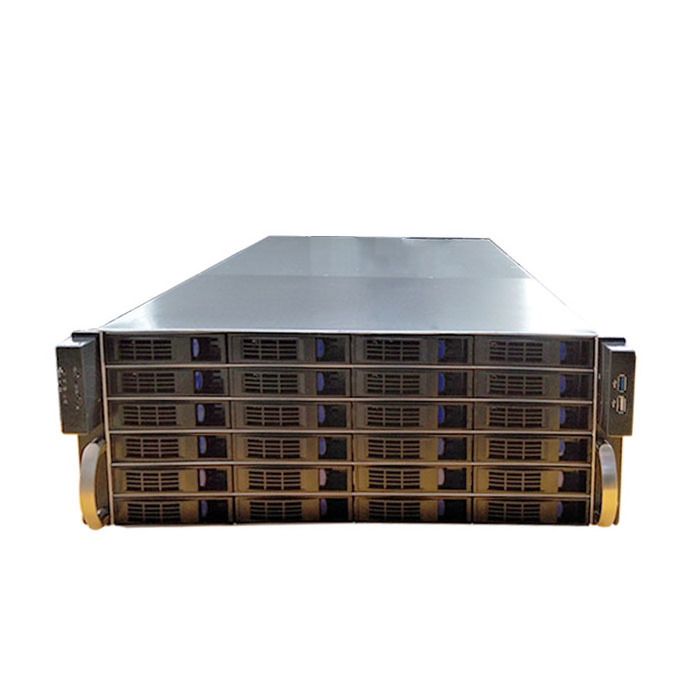

ED424H55 19 inch 4U JBOD storage case Hot swap server rack case 24BAYS JBOD SERVER
ED424H series : 480mm depth,550mm depth,650mm depth.
model ED424H48:depth 480mm.
model ED424H55: depth 550mm.
model ED424H65: depth 650mm.
difference:
1.main board support
depth:480mm,support mainboard:(6.7"x6.7")
depth:550mm,support main board: (12"x9.6")(9.6"x9.6")(6.7"x6.7")
depth:600mm,support main board:(12"x13")(12"x10.5") (12"x9.6")(9.6"x9.6")(6.7"x6.7")
2.PSU support
depth:480mm,ATX single psu
depth:550mm,1U,2U single standard or ATX single psu
depth:650mm, 1U ,2U single standard,ATX single psu or 1U or 2U redundant 1+1 PSU
the others is the same.
|
ED424H55 |
|
|
Material |
metal material:SGCC,thickness:1.2mm,other:ABS |
|
M/B support |
(12"x9.6")(9.6"x9.6")(6.7"x6.7") |
|
PSU support |
|
|
Processor Support |
DP Xeon(Intel),DP Opteron(AMD),Core(Intel) |
|
Dimensions |
L x W x H 550x430x176mm,21.65"x16.9"x6.93" ( inch ) |
|
Drive Bays |
External:Front Hot-swap 24x3.5"HDD, internal:rear 1x2.5"HDD ( optional ) |
|
Backplane |
Backplane with sata or minisas ports x6,support SATA or SAS hard disk. |
|
System Cooling |
Middle 4 x 8025 mm PWN,rear 2x8025mm PWM |
|
expansion slot |
vertical type x7 |
|
front pannel |
front control:power on/off,system reset,indicator:power LED,HDD Activity LED,LAN Activity LED,Failure LED |
|
indicator light : power(x1),HDD(x1),LAN NIC(x3),ALARM(x1) |
|
|
USB: 3.0 x2 |
|
|
Rear window |
compatible with PSU(according to customer needs) |
|
Weight |
N.W:16.5kg G.W:18.2kg(single carton) +1.5(double carton) |
|
carton size |
single carton:730mm(L)x550mm(W)x240mm(H),double carton: 760mm(L)600mm(W)x300mm(H) |
|
Packing contain |
chassis x1 |
|
backplane x6 |
|
|
6 pcs of 80x25mm PWM fans |
|
|
display&switch&USB cables x1 |
|
|
parts pack x1 |
|
|
others |
3 types hdd trays for choice (choose one of the three) |
1 1.two types of backplane for choice,mini sas backplane or sata backplane.
2.making rear window according to your needs.
we make rear window which is compatible with 1U ,2U single standard PSU or ATX single psu (one type according to your needs)
below photos for your reference:
3. about HDD tray ,we have 3 types.but usually default to type A:
we provide all kinds of solution for our customers,such as:
- Storage Solutions
- Enclosure Solutions
- Platform Solutions
- Network Security Solutions
- High Availability Solutions
- Infrastructure Appliance Solutions
- Accessory
our products are widely used in below applications:
We have 6 types of business modes,
1,servers case + power + other parts
2, server case + power + motherboards + other parts
3,server case + power + motherboards + OS + other parts
4,whole server + OS
5, whole server + OS + cabinet +KVM + PDU + UPS + Cool air
6, Whole data center
We can also provide OEM/ODM products,
if you have any customized requirements,
we'll try our best to find a suitable solution for you!
