Quick Details
-
Brand Name:
-
HBM
-
Model Number:
-
LXLC
-
Product name:
-

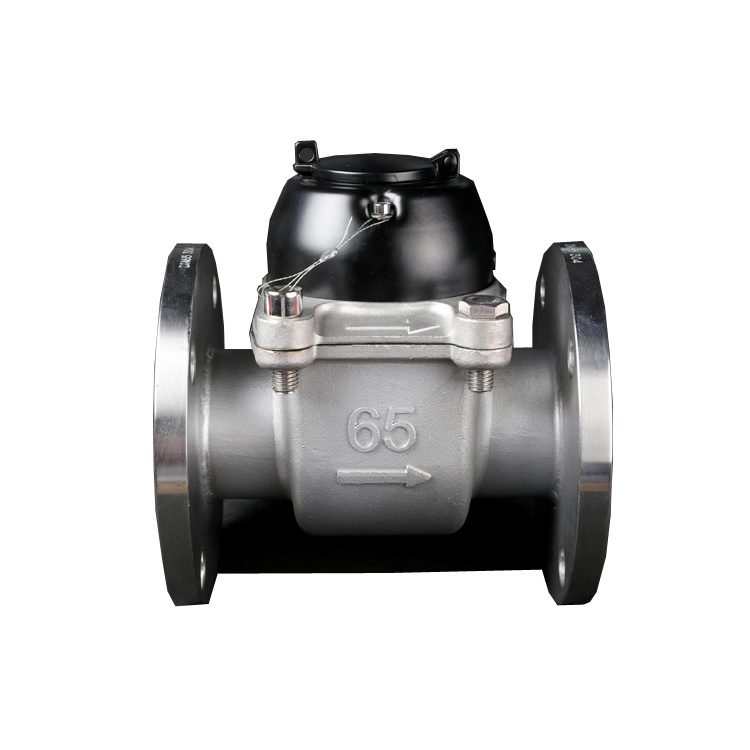

stainless steel water meter
-
Size mm:
-
40-600mm
-
Accuracy:
-
class B
-
Color:
-
As picture /customized
-
Packing:
-
Carton box/ wooden carton
-
Connection:
-
Screw Thread/Flange End
-
Installation Type:
-
Horizonal/Vertival
-
Application:
-
Water Resource Management
-
Certification:
-
ISO
Quick Details
-
Warranty:
-
1 year, 24 months
-
Type:
-
Compound meters
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
HBM
-
Model Number:
-
LXLC
-
Product name:
-
stainless steel water meter
-
Size mm:
-
40-600mm
-
Accuracy:
-
class B
-
Color:
-
As picture /customized
-
Packing:
-
Carton box/ wooden carton
-
Connection:
-
Screw Thread/Flange End
-
Installation Type:
-
Horizonal/Vertival
-
Application:
-
Water Resource Management
-
Certification:
-
ISO
water meter parts
|
Type |
Size (mm) |
Class |
qs Overload Flow |
qp Permanent Flow |
qt Transitional Flow |
qmin Min.Flow |
Min. Reading |
Max. Reading |
|
m3/h |
m3 |
|||||||
|
LXLC-50 |
50 |
A |
30 |
15 |
4.5 |
1.2 |
0.0002 |
999,999 |
|
B |
3.0 |
0.45 |
||||||
|
LXLC-65 |
65 |
A |
50 |
25 |
7.5 |
2.0 |
0.0002 |
999,999 |
|
B |
5 |
0.75 |
||||||
|
LXLC-80 |
80 |
A |
80 |
40 |
12 |
3.2 |
0.002 |
999,999 |
|
B |
8.0 |
1.2 |
||||||
|
LXLC-100 |
100 |
A |
120 |
60 |
18 |
4.8 |
0.002 |
999,999 |
|
B |
12 |
1.8 |
||||||
|
LXLC-125 |
125 |
A |
200 |
100 |
30 |
8 |
0.002 |
999,999 |
|
B |
20 |
3 |
||||||
|
LXLC-150 |
150 |
A |
300 |
150 |
45 |
12 |
0.002 |
999,999 |
|
B |
30 |
4.5 |
||||||
|
LXLC-200 |
200 |
A |
500 |
250 |
75 |
20 |
0.002 |
999,999 |
|
B |
50 |
7.5 |
||||||
|
LXLC-250 |
250 |
A |
800 |
400 |
120 |
32 |
0.002 |
9,999,999 |
|
B |
80 |
12 |
||||||
|
LXLC-300 |
300 |
A |
1200 |
600 |
180 |
48 |
0.02 |
9,999,999 |
|
B |
120 |
18 |
||||||
DIMENSIONS
|
Type |
Size |
L Length |
H Height |
Connecting flange |
||||
|
φD1 Outside diameter |
φD Bolt circle diameter |
Connecting Bolts (n-M) |
||||||
|
mm |
||||||||
|
LXLC-50 |
50 |
200 |
261 |
165 |
125 |
4-M16 |
||
|
LXLC-65 |
65 |
200 |
271 |
185 |
145 |
4-M16 |
||
|
LXLC-80 |
80 |
225 |
279 |
200 |
160 |
8-M16 |
||
|
LXLC-100 |
100 |
250 |
289 |
220 |
180 |
8-M16 |
||
|
LXLC-125 |
125 |
250 |
299 |
250 |
210 |
8-M16 |
||
|
LXLC-150 |
150 |
300 |
319 |
285 |
240 |
8-M20 |
||
|
LXLC-200 |
200 |
350 |
346 |
340 |
295 |
8-M20(1.0MPa) |
||
|
12-M20(1.6MPa) |
||||||||
|
LXLC-250 |
250 |
450 |
450 |
395(1.0MPa) |
350(1.0MPa) |
12-M20(1.0MPa) |
||
|
405(1.6MPa) |
355(1.6MPa) |
12-M24(1.6MPa) |
||||||
|
LXLC-300 |
300 |
500 |
478 |
445(1.0MPa) |
400(1.0MPa) |
12-M20(1.0MPa) |
||
|
460(1.6MPa) |
410(1.6MPa) |
12-M24(1.6MPa) |
||||||
Q: Why choose you?
A: We have professional team of workers, service and inspection, and we have our own factory.
Q: Could you print our company logo on the nameplate and package?
A: Yes, we can.
Q: Do you offer customized packing?
A: Yes! All of our products can be packed as your requirement.
Q: How many colors of body are available?
A: We have own spraying equipment, so we can do custom colors as your special request.
So any RAL color is available. You just need to tell me your favorite RAL color.
Q: Will you save my mold for future orders?
A: Yes. Once we create your mold. you can use it as many times as you like at no cost for future orders.
As long as you keep the same design there is never any new molding fees
