Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Hongtai
-
Dimension(L*W*H):
-
250*65*10mm
-
Weight:
-
0.3 KG
-
Working Temperature Range:
-
1 - 600 ℃
-
application:
-
infrared heating element
-
Color:
-
White,Black,Yellow
-
radiation distance:
-
100 mm to 250 mm
-
thermocouple:
-
K/J
-
heating wire:
-
BGH wire
-
shape:
-
flat/hollowl/curve
-
Average Operating Life:
-
Up to 10,000 hrs
-
Factory sell:
-
Yes
-
Useful wavelength range:
-
2-10 microns
Quick Details
-
Type:
-
Infrared Heater
-
Power Source:
-
Electric
-
Voltage:
-
230V
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Hongtai
-
Dimension(L*W*H):
-
250*65*10mm
-
Weight:
-
0.3 KG
-
Working Temperature Range:
-
1 - 600 ℃
-
application:
-
infrared heating element
-
Color:
-
White,Black,Yellow
-
radiation distance:
-
100 mm to 250 mm
-
thermocouple:
-
K/J
-
heating wire:
-
BGH wire
-
shape:
-
flat/hollowl/curve
-
Average Operating Life:
-
Up to 10,000 hrs
-
Factory sell:
-
Yes
-
Useful wavelength range:
-
2-10 microns

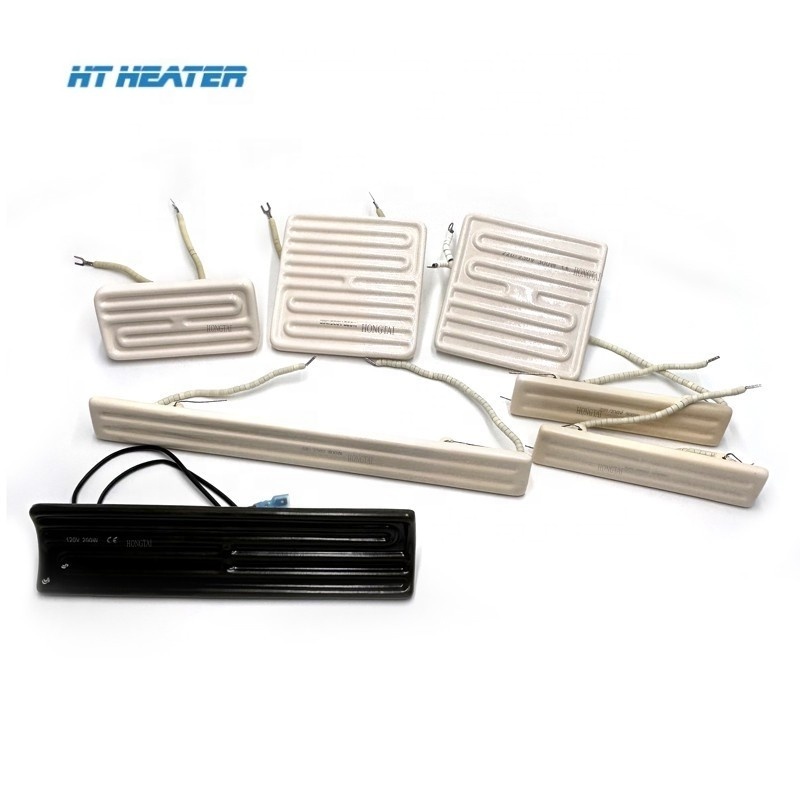

60X240mm 600W Infrared Ceramic Heating Plate Industrial Ceramic Heater Plate For IR PRO SCC for Aluminum windows paint stove operate in the temperature of 300°C to 700°C (572°F - 1292°F) producing infrared wavelengths in the 2 - 10 micron range. Most plastics and many other materials absorb infrared best in this range, which makes the ceramic heater the most popular infrared radiant emitter on the market.
A range of aluminised steel reflectors are also available to ensure the maximum amount of infrared radiation is reflected forward to the target area.
|
Product Name
|
60X240mm 600W Infrared Ceramic Heating Plate Industrial Ceramic Heater Plate For IR PRO SCC
|
|
Color
|
white, yellow, black, etc
|
|
Power
|
125-1500W
|
|
Usually size
|
245 x 60, 245 x 80, 122 x 122, 122 x 60, 80 x 80,60 x 60mm
|
|
Shapes
|
Trough, Hollow and Flat
|
|
Voltage
|
110-440volts
|
|
Thermocouple
|
Optional, K or J Type
|
|
Operating Temperature
|
300C - 700C
|
Size:245*60mm
Type:Trough, Hollow and Flat
Vottage :120/220/230/240/480V
Wattage :125-1000W
colour :white, yellow, black, etc
TC :Optional, K or J Type
Size:245*80mm
Type:Trough, Hollow and Flat
Vottage :120/220/230/240/480V
Wattage :125-1000W
colour :white, yellow, black, etc
TC :Optional, K or J Type
Size:122*122mm
Type:Trough, Hollow and Flat
Vottage :120/220/230/240/480V
Wattage :125-750W
colour :white, yellow, black, etc
TC :Optional, K or J Type
Size:122*60mm
Type:Trough, Hollow and Flat
Vottage :120/220/230/240/480V
Wattage :125-500W
colour :white, yellow, black, etc
TC :Optional, K or J Type
Size:80*80mm
Type:Trough, Hollow and Flat
Vottage :120/220/230/240/480V
Wattage :125-250W
colour :white, yellow, black, etc
TC :Optional, K or J Type
How to order ?
Pls provide this informations:
1.T ype: Trough, Hollow and Flat
2.Size:245*60mm,245*80mm and other can be customized.
3.Vottage :380V,240V, 220V,200V,110V and other can be customized.
4.Wattage :125W,150W,200W,250W,300W and other can be customized.
5.With or Without thermocouple
6.Quantity
2.Stove machine with major vibration or impact ( for example: Vacuum forming machine, Compression Molding Machine)
3.Drying( for example : Printing ink dryer, Electric heating tables )
4.Heating in vertical or half round array ( for example :Aluminum windows paint stove )
Factory
Office
Sales Team
Engineer Team
Plant for ceramic heater
Packaging for Ceramic infrared heater
1) plastic bag + carton for heater element
2) wooden box for heater element
Shipping for Ceramic infrared heater
1) shipping by express (sample order) or by sea(bulk order)
2) worldwide shipping service available
Each heater use bubble bag and wrapped first
standard cartons for ceramic heaters
Exported Wooden case can protect the heaters very well
