Quick Details
-
Control System Brand:
-
Cypcut
-
Cutting Thickness:
-
Depends on the laser power
-
Control Software:
-
Cypcut
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Fortune Laser
-
Weight (KG):
-
3200 KG
-
Core Components:
-
Laser source
-
Product Name:
-
Fiber Laser Cutting Machine
-
Working Area:
-
3000*1500mm
-
Laser power:
-
1KW-12KW
-
Laser Source:
-
Max/Raycus/IPG Optional
-
Laser Head:
-
Raytools/Ospri/WSX/Precitec Optional
-
Voltage:
-
380V 50/60Hz
-
Max Moving Speed:
-
80000mm/Min
-
Maximum Accelerated Speed:
-
1.0g
-
Transport Package:
-
Standard Wooden Case
-
Water chiller:
-
D&F/Hanli/S&A Optional
Quick Details
-
Laser Type:
-
Fiber Laser
-
Cutting Speed:
-
80000mm/min
-
Cooling Mode:
-
WATER COOLING
-
Control System Brand:
-
Cypcut
-
Cutting Thickness:
-
Depends on the laser power
-
Control Software:
-
Cypcut
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Fortune Laser
-
Weight (KG):
-
3200 KG
-
Core Components:
-
Laser source
-
Product Name:
-
Fiber Laser Cutting Machine
-
Working Area:
-
3000*1500mm
-
Laser power:
-
1KW-12KW
-
Laser Source:
-
Max/Raycus/IPG Optional
-
Laser Head:
-
Raytools/Ospri/WSX/Precitec Optional
-
Voltage:
-
380V 50/60Hz
-
Max Moving Speed:
-
80000mm/Min
-
Maximum Accelerated Speed:
-
1.0g
-
Transport Package:
-
Standard Wooden Case
-
Water chiller:
-
D&F/Hanli/S&A Optional
Product Description

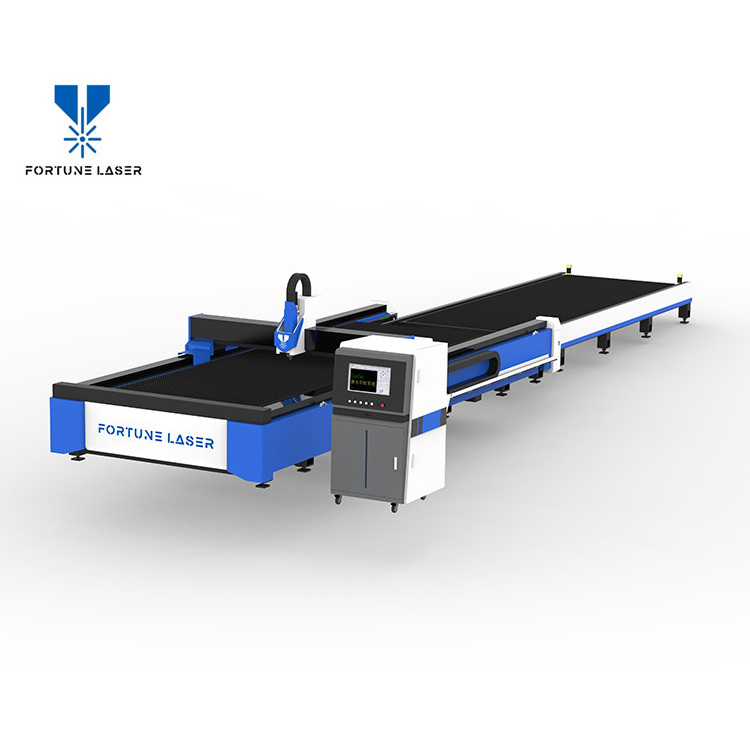

FL-3015E Exchange Table Fiber Laser Cutting Machine
Servo dual-drive gantry structure:
Bridge gantry structure, rack rail drive, the use of centralized lubrication device, easy maintenance;
Stable and practical:
Reinforced welding bed, high-temperature tempering treatment vibration to eliminate stress, machine tool deformation can be controlled at ± 0.02mm;
Industrial aesthetics design:
Export standards in Europe and America, the appearance of aesthetic design, simple atmosphere;
The operation is simple and easy to use:
More than 20000 users, global technology-leading CNC laser cutting system, the flexible operation is simple, has the function of laser power adjustment, to ensure the quality of cutting, the operation is simple and convenient;
High-quality cutting:
High-precision anti-collision professional laser cutting head, to ensure the best cutting effect;
Efficient material:
Used in the standard specifications of metal sheet cutting, saving time and material;
Fiber laser:
Use Maxphotonics laser(Other brands laser are optional), stable and reliable power in the domestic top brand, performance guaranteed;
Note:
1.
This machine configuration is only for your reference, many other brands for each part of the machines are optional based on your requirements and your budget.
2. We provide the whole set laser machines and also the parts for the laser machines, including the Laser source, laser head, water chiller, CNC controller, etc. Please contact us for more details today!
|
Machine configuration
|
|
|
|
|
||||
|
Model
|
|
Fiber Laser Cutting Machine FL-E Series
|
|
|
||||
|
Working Area
|
|
3000mm*1500mm
|
|
|
||||
|
Laser source
|
|
Raycus/Max/IPG for option
|
|
|
||||
|
CNC Cutting System
|
|
Cypcut
|
|
|
||||
|
Laser head
|
|
Raytools/OSPRI/WSX for option
|
|
|
||||
|
Machine bed
|
|
Fortune Laser
|
|
|
||||
|
X/Y axis gear rack
|
|
YYC/Fortune Laser
|
|
|
||||
|
Precision linear guide
|
|
HIWIN/ROUST
|
|
|
||||
|
Motor Drive
|
|
Japan Yaskawa Servo motor
|
|
|
||||
|
Electronic components
|
|
France Schnei-der
|
|
|
||||
|
Reducer system
|
|
MOTOREDUCER/PHILANDE
|
|
|
||||
|
Pneumatic components
|
|
Japan SMC
|
|
|
||||
|
Machine bed accessories
|
|
Fortune Laser
|
|
|
||||
|
Water chiller
|
|
Hanli/S&A
|
|
|
||||
|
Waste recycling equipment
|
|
Fortune Laser
|
|
|
||||
