Quick Details
-
Brand Name:
-
HUAYA
-
Fork Length:
-
1070MM
-
Fork Width:
-
125mm
-
Overall Dimensions:
-
2700*1226*2060mm
-
Weight (KG):
-
4350 kg
-
Brand:
-
HUAYA CPCG25
-
Engine model:
-
XinChaiC490
-
Item:
-
2 ton diesel lpg forklift
-
Mast type:
-
2 Stage/3 Stage
-
Tires:
-
Pneumatic tires
-
Loading Capacity:
-
3000kg
-
Color:
-
Customer Demanded
-
Load Center:
-
500mm
-
Fork Size:
-
1070mm*125mm*50mm
Quick Details
-
Min. Lifting Height:
-
3000mm
-
Warranty:
-
1 Year
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
HUAYA
-
Fork Length:
-
1070MM
-
Fork Width:
-
125mm
-
Overall Dimensions:
-
2700*1226*2060mm
-
Weight (KG):
-
4350 kg
-
Brand:
-
HUAYA CPCG25
-
Engine model:
-
XinChaiC490
-
Item:
-
2 ton diesel lpg forklift
-
Mast type:
-
2 Stage/3 Stage
-
Tires:
-
Pneumatic tires
-
Loading Capacity:
-
3000kg
-
Color:
-
Customer Demanded
-
Load Center:
-
500mm
-
Fork Size:
-
1070mm*125mm*50mm
Product Description

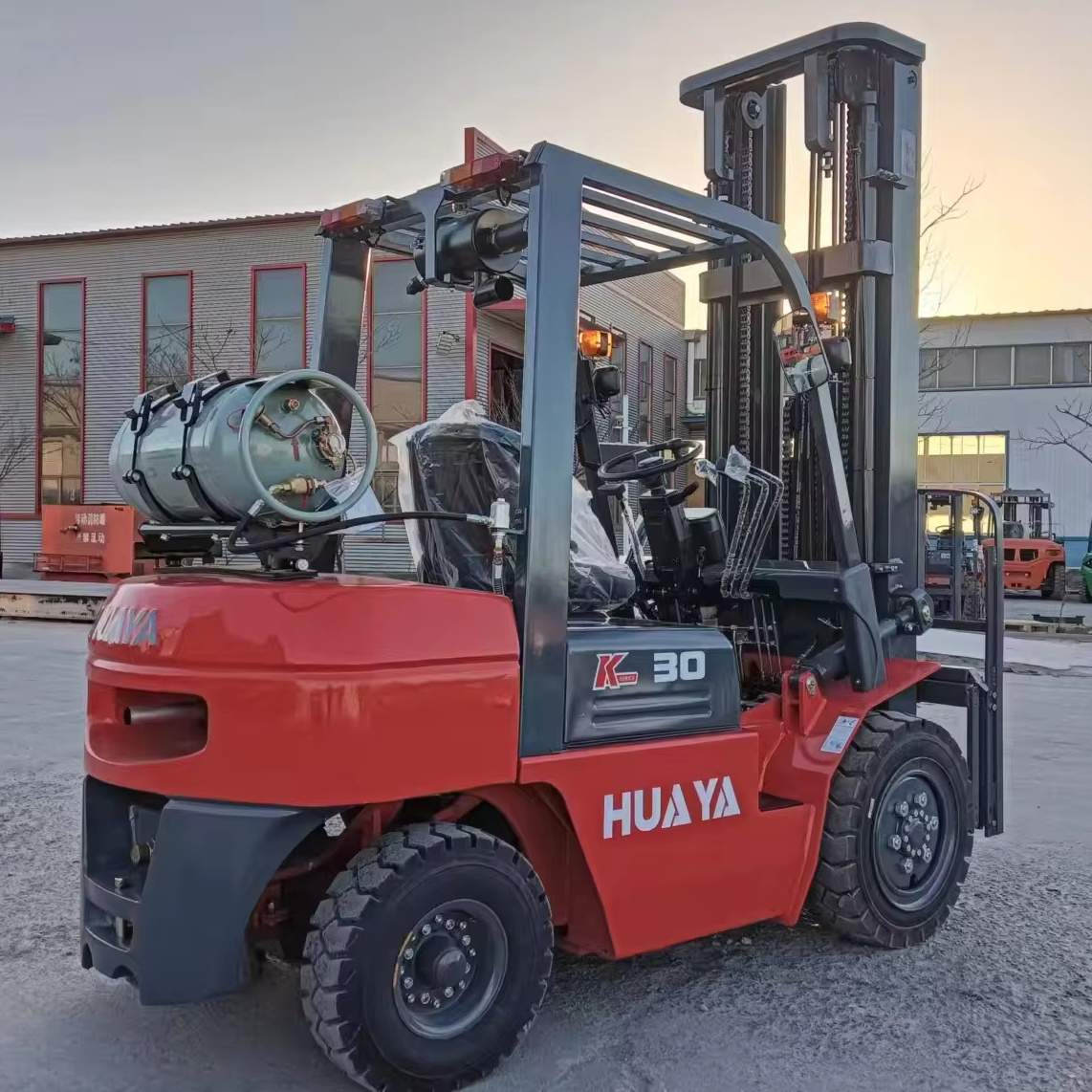

Description LPG forklift:
LPG forklift, Rated load is 1.5 2 2.5 3 3.5 4 5 ton
Advantage:
1. Equipped with NISSAN high-quality engine, the emission conforms to the latest European and American emission standards.
2. Safety parts such as cylinders and converters are imported from Italy with high quality.
3. Adopt large turning angle steering axle to reduce the turning radius of the whole vehicle.
4. Equipped with a lower buffer device ,Adopt suspended cab technology to reduce the impact and vibration of the gantry, while improving the safety of work.
5. Hot air return isolation device, optimized heat dissipation air duct, aluminum plate-fin water tank, improve heat dissipation capacity and ensure reliable operation of the engine.
6. The optimized hydraulic system is adopted to highlight energy saving and high efficiency and reduce the fuel consumption of the vehicle.
7. Equipped with pressure fuel filler cap to prevent fuel volatilization, reduce fuel consumption and improve environmental safety.
Specification：
Brand : Huaya Rated load : 2500kg
Ground clearance : 2240mm Engine power : 37kw
Minimum turning radius : 2240mm Engine model: K25(NISSAN)
Fuel Type: Gasoline/LPG gas Color : Customer Demand
Related products
|
Model
|
FG20
|
FG25
|
FG30
|
FG35
|
FG40
|
|
Rated load
|
2000kg
|
2500kg
|
3000kg
|
3500kg
|
4000kg
|
|
Machine weight
|
3350kg
|
3850kg
|
4350kg
|
4560kg
|
4800kg
|
|
Ground clearance
|
110mm
|
110mm
|
135mm
|
135mm
|
135mm
|
|
Speed full load
|
20km/h
|
20km/h
|
20km/h
|
20km/h
|
20km/h
|
|
engine model
|
K25(NISSAN)
|
K25(NISSAN)
|
K25(NISSAN)
|
K25(NISSAN)
|
K25(NISSAN)
|
|
Engine power
|
37kw
|
37kw
|
37kw
|
37kw
|
42kw
|
|
Wheelbase
|
1600mm
|
1600mm
|
1700mm
|
1850mm
|
2000mm
|
|
Minimum turning radius
|
2150mm
|
2240mm
|
2400mm
|
2550mm
|
2690mm
|
|
Dimensions (mm)
|
2420×1160×2180
|
2580×1160×2180
|
2700×1226×2060
|
2850×1226×2060
|
2893×1300×2100
|
