Quick Details
-
Rolling thinckness:
-
0.3-0.8mm
-
Place of Origin:
-
Hebei, China
-
Voltage:
-
380V 50Hz 3phases or as your requirement
-
Dimension(L*W*H):
-
9800mm*1000mm*1500mm
-
Weight:
-
6500 kg
-
Feeding width:
-
as required
-
Frame Design:
-
Iron cast/steel plate
-
Roll Stations:
-
13-26 roller stations
-
Shafts Diameter:
-
70-80mm
-
Main Motor Power:
-
7.5kw
-
Hydraulic Power:
-
7.5kw
-
Material of Cutting Blade:
-
Cr12, Heat Treatment
-
Control System:
-
PLC(detla) System
-
Machine Structure:
-
350H Steel Welding
-
bending elbow:
-
2 in 1
Quick Details
-
Type:
-
downspout forming machine
-
Tile Type:
-
Colored Steel
-
Production Capacity:
-
15 m/min
-
Rolling thinckness:
-
0.3-0.8mm
-
Place of Origin:
-
Hebei, China
-
Voltage:
-
380V 50Hz 3phases or as your requirement
-
Dimension(L*W*H):
-
9800mm*1000mm*1500mm
-
Weight:
-
6500 kg
-
Feeding width:
-
as required
-
Frame Design:
-
Iron cast/steel plate
-
Roll Stations:
-
13-26 roller stations
-
Shafts Diameter:
-
70-80mm
-
Main Motor Power:
-
7.5kw
-
Hydraulic Power:
-
7.5kw
-
Material of Cutting Blade:
-
Cr12, Heat Treatment
-
Control System:
-
PLC(detla) System
-
Machine Structure:
-
350H Steel Welding
-
bending elbow:
-
2 in 1
Product Certification
CE Certified.Valid from 2020-07-18 until 2025-07-18
Packaging & Delivery
Selling Units: Single item

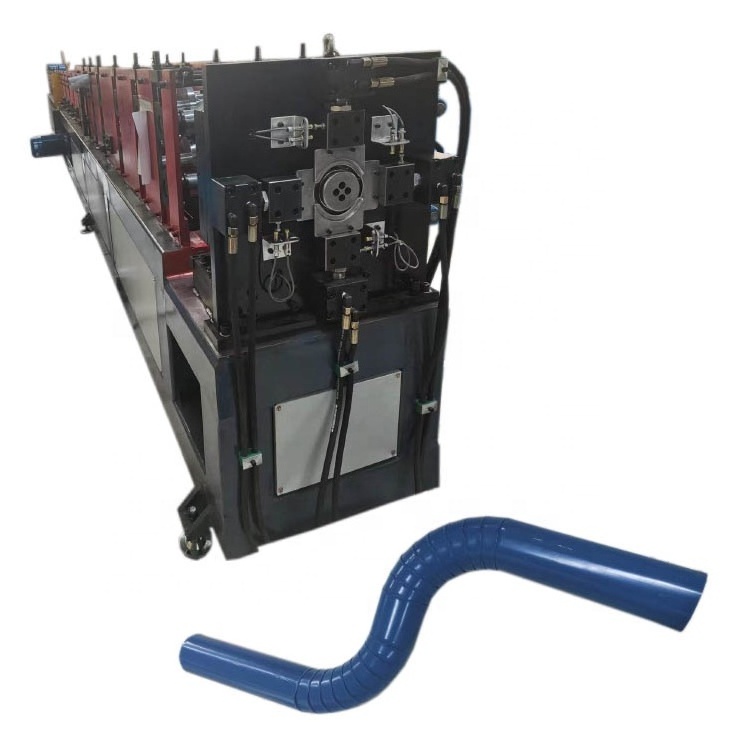

Advantage of steel downpipe spout pipe:
Galvanized steel guttering resists thermal expansiono and contraction,which means that it remains unaffected from sudden fluctuations in temperature.Steel has an excellent lifetime value,as it can be recycled.
The downpipe forming machine we produced is customized according to the specific requirements of customers.Such as specification and raw materials, The machine is intalled and tested before leaving the factory.
After receiving the machine, the customer can start production once connect wires and tubes. We randomly send instructions to tell how to operate. Of course, we also have corresponding videos for reference.
Technicians Can also be sent to customer factory for guidance and training if necessary.
The downpipe roll forming machine a lso work with elbow bending machine,
which make flat pipe to curve according to construction requirement.
* Uncoiler: Manual Uncoiler
* Inner diameter: 508mm
* Outer diameter: 1200mm
* Loading weight: 3T
* Thickness of Material: 0.4-0.6mm
* Rolling Stations: 22 stations for square pipe and 26 stations for round pipes.
* Forming Speed: 10-15m/min. (not including cutting)
* Diameter of Shaft: ¢70mm
* Transmission: by chain-brackets
* Main Power: 7.5KW
* Weight of the machine appro.6 Tons.
* Cutting Type: Hydraulic cutting for rectangular downpipe and Flying Saw Cutting for Circle downspout
* Hydraulic Power: 7.5KW
* Material of cutter blade: Cr12 steel with quenched treatment.
* Cutting Length and Quantity: Clients can set the required length and quantity on the PLC touchscreen
* Electrical System for Rectangular Downspout Roll Forming Machine
* Panasonic PLC Control System and Omron Encoder;
* Type of controlling: adopt strong electric controlling
* Main motor power: 2.2kw
* Max curving angle: 90 degrees.
* Functions: curving and biting
* Curving speed: 0-15m/min
* Dimension: 1300*650*1500mm
Machine Features
1. More efficient and accurate execution of production orders ;
2. High equipment reliability;
3. Little waste of materials and energy;
4. High productivity;
5. High quality materials, get a longer service life;
6. All parts of the machine are processed with precision, and the surface of the roll is chromeplated to ensure that customers can get qualified products at the same time, it can avoid the scratch of the color steel surface paint, and increase the service life of the roll;
7. Customized coil processing solutions to solve all aspects of technical problems.
Factory view
Why Choose Us?
1) We have sold more than 5000 sets roll forming machines to many countries around the world.
2) We have hundreds of models about all kinds of roll forming machine for your reference, you donot worry of you do not have a profile drawing, We can recommond you some classical models that is common in your country.
3) When designing the macine, our considerate service will estimate and avoid the problem that may happen.
4) One set machine can provide many solutions with different price level.But they are all cost-effective.
5) We attach importance to many detailes,Every machine part quality is higher than our competitors in same price level.
