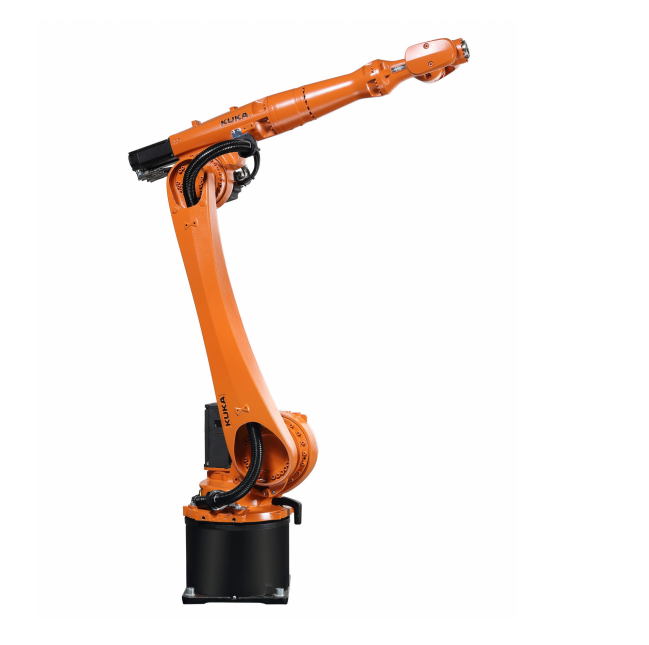

Robot finger Kuka KR20R1810 low price robot for welding automation robotics work

Robot finger Kuka KR20R1810 low price robot for welding automation robotics work

FOB Reference Price: Get Latest Price

≥1 Sets

US $21500

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Weight:: 255 kg

Dimension(L*W*H):: 2173*1813*393 mm

Brand:: KUKA

Number of axes:: 6

Payload:: 20 kg

Arm reach:: 1813 mm

repeatibility:: +/-0.04 mm

Mounting position:: Floor; Ceiling, Wall, Desired angle

Ambient temperature during operation:: 5℃~55℃

Protection rating:: IP 65

After Warranty Service:: Video technical support

Controller:: KR C4

Quick Details

Warranty:: 1 Year

Place of Origin:: China

Brand Name:: KUKA

Weight:: 255 kg

Dimension(L*W*H):: 2173*1813*393 mm

Brand:: KUKA

Number of axes:: 6

Payload:: 20 kg

Arm reach:: 1813 mm

repeatibility:: +/-0.04 mm

Mounting position:: Floor; Ceiling, Wall, Desired angle

Ambient temperature during operation:: 5℃~55℃

Protection rating:: IP 65

After Warranty Service:: Video technical support

Controller:: KR C4

Products Description

Perfected for handing and assembly: Fast and incredibly agile with the utmost precision. Down to the very last detail,KR CBERTECH nano robots are designed as high-end handing robots. Compact design.Reduced volume with greater payload capacity and longer reach. KR CYBERTECH nano robots work in confined spaces. Minimized disruptive contour. A stareamlined arm/wrist design, a minimized disruptive contour of axis 2 and optimal integration of the welding equipment. Maximum workspace. With their large working envelope to the rear and long downward reach ,KR CYBERTECH nano robots can work in areas inaccessible to cinventional robots. Best-in-class repeatability. Besides many other innovative technical details, the KR CYBERTECH nano robots impress with a repeatability of 0.04 mm. Flexibility in any position. Exceptional performance when installed on the floor,wall or ceiling ,or at any other angle.KR CYBERTECH nano robtos are suitable for every installation position in their standard versions-without requiring"extras"

KUKA KR20R1810 Technical data
Maximum reach	1813 mm
Rated payload	20 kg
Pose repeatability(ISO 9283)	±0.04 mm
Number of axes	6
Mounting position	Floor, Ceiling, Wall, Desired angle
Footprint	430 *370 mm
Weight	approx.255 kg
Ambient temperature during operation	5°to 55℃（273K to 328K）
Protection (IEC 60529)	IP65
Protection,robot Wrist(IEC 60529)	IP65
Controller	KR C4
Teach pendant	KUKA smartPAD-2

Axis data	Motion range	Speed with rated payload
A1	±185°	200°/s
A2	-185°/-65°	175°/s
A3	-138°/175°	190°/s
A4	±350°	430°/s
A5	±130°	430°/s
A6	±350°	630°/s
