Quick Details
-
Warranty:
-
1years
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Zhongxin
-
Model Number:
-
YT08
-
Line pull:
-
8000N/800KG/1765LBS
-
Oil pressure:
-
15Mpa/150Bar
-
Oil flow:
-
35L/Min
-
Line speed:
-
40m/min
-
Drum capacity:
-
43m
-
Layer number:
-
4
-
Net weight:
-
41
Quick Details
-
Power Source:
-
Hydraulic
-
Application:
-
AUTO
-
Capacity:
-
800KG
-
Warranty:
-
1years
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Zhongxin
-
Model Number:
-
YT08
-
Line pull:
-
8000N/800KG/1765LBS
-
Oil pressure:
-
15Mpa/150Bar
-
Oil flow:
-
35L/Min
-
Line speed:
-
40m/min
-
Drum capacity:
-
43m
-
Layer number:
-
4
-
Net weight:
-
41

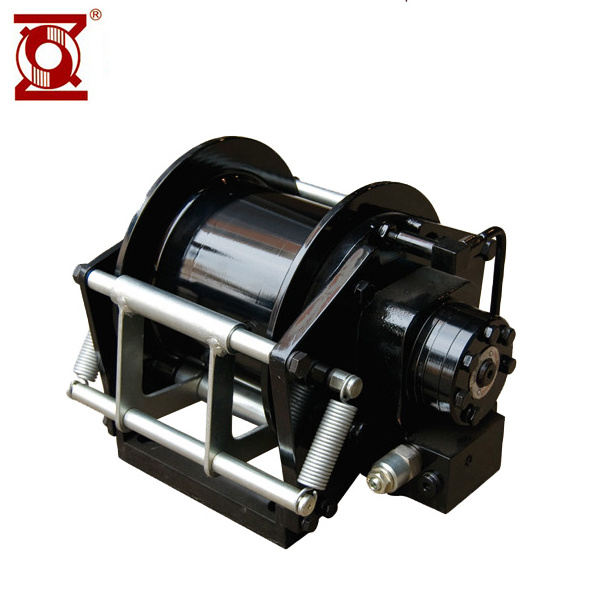

Hydraulic hoist and winch 0.8T lifting marine boat winch
» Brief Introduction
YT08 Hydraulic lifting winch consists of hydraulic motor,plantary gear reducer,brake,drum,wire pressing machine,etc.
» Main Application
Hydraulic winch is a vehicle tool used in automobiles and special vehicles for self-rescue and self-discharge in off-road driving under difficult road conditions.
It can also be used for lifting and pulling heavy objests in construction site,such as engineering installation,oil field drilling,road clearing etc.
It is characterized by compact structure,small size,light weight,large pulling force,simple installation,flexible operation,convenient maintenance,and the hydraulic system of the car itself.
» Product structural drawing
» Performance parameters sheet
| Line pull | K/Kgs/Lbs | 8000/800/1765 |
| Oil pressure | Mpa/Bar | 15/150 |
| Oil flow | L/Min | 35 |
| Line speed | m/min | 40 |
| Drum capacity | m | 43 |
| Layers number | 4 | |
| Drum diameterxBottom diameterxLengh(internal) | mm | 230x160x149 |
| Wire rope diameter | mm | ∅8 |
| Net weight | Kg | 41 |
»
Features of Hydraulic Winch
1. Full-float typed planetary gear reducer makes the operation more stable, the structure more reasonable.
2. Adopt multidisc-typed friction normally-closed arrester makes the brake torque larger, safer and more reliable.
3. The product is featured by its small size, compact construction and high transmission efficiency.
4. Adopt motor with long use life.
5. The installation bracket can be manufactured according to the customer's requirement.
6. According to the requirement of customers, manufacture the balance valve and shuffle valve.
