Quick Details
-
Screw Speed (rpm):
-
1200 rpm
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
JOINTER
-
Voltage:
-
220V, 220V±5%
-
Dimension(L*W*H):
-
carton size 600mm*180mm*550mm
-
Power (kW):
-
3.8
-
Weight:
-
7 KG
-
Model:
-
JIT-613
-
Extruding Motor Power:
-
1300W
-
Welding Rod Extruding Power:
-
900W
-
Hot Air Power:
-
1600W
-
Heating Temperature:
-
20-550℃
-
Extruding Temperature:
-
300-420℃
-
Welding Speed:
-
1.8-3.6 kg/h
-
Welding Rod Diameter:
-
3.5mm-5mm
-
Frequency:
-
50/60Hz
-
Marketing Type:
-
Hot Product 2019
Quick Details
-
Screw Design:
-
Single-screw
-
Screw L/D Ratio:
-
Unapplicable
-
Screw diameter (mm):
-
16 mm
-
Screw Speed (rpm):
-
1200 rpm
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
JOINTER
-
Voltage:
-
220V, 220V±5%
-
Dimension(L*W*H):
-
carton size 600mm*180mm*550mm
-
Power (kW):
-
3.8
-
Weight:
-
7 KG
-
Model:
-
JIT-613
-
Extruding Motor Power:
-
1300W
-
Welding Rod Extruding Power:
-
900W
-
Hot Air Power:
-
1600W
-
Heating Temperature:
-
20-550℃
-
Extruding Temperature:
-
300-420℃
-
Welding Speed:
-
1.8-3.6 kg/h
-
Welding Rod Diameter:
-
3.5mm-5mm
-
Frequency:
-
50/60Hz
-
Marketing Type:
-
Hot Product 2019

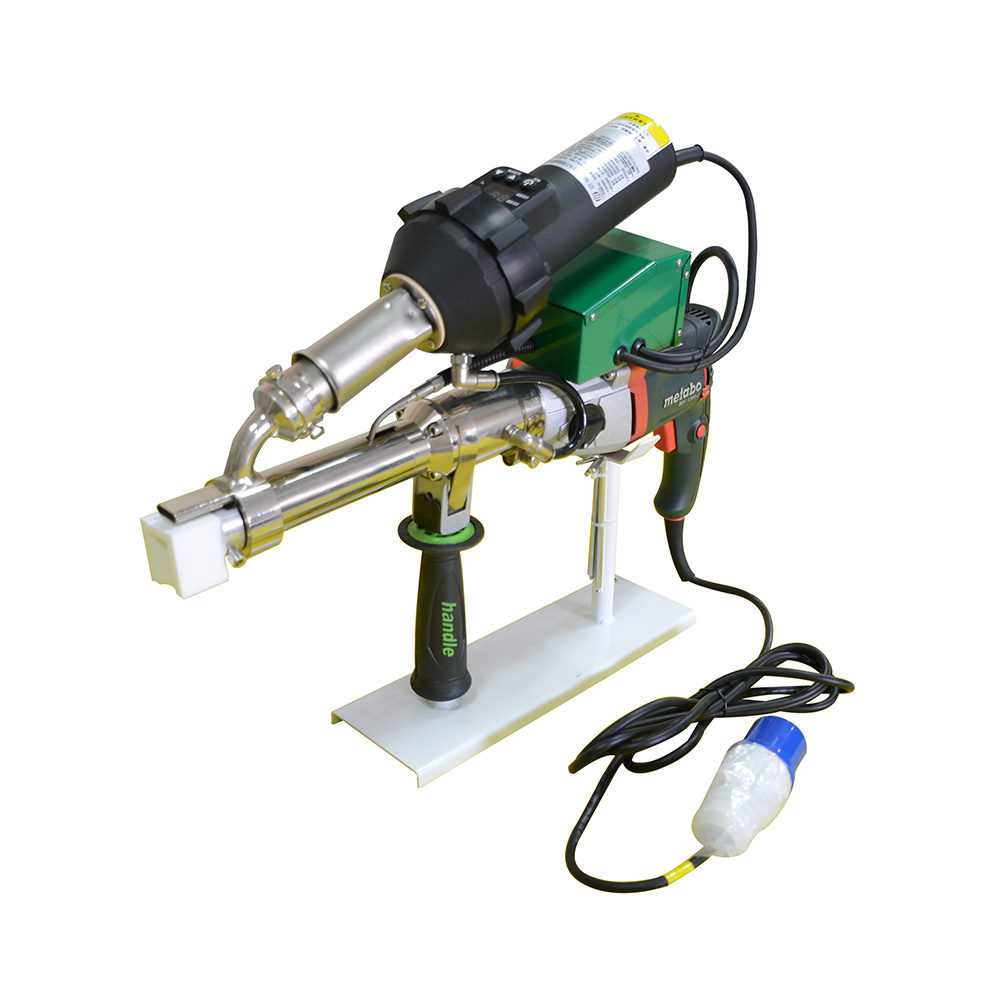

Plastic Hot Melt Extrusion Machine, Hand Extruder Welding Gun
JIT-613 with the functions of double independent heating systems, digital display controller, PID automatic thermostat, with 1600W digital hot air welding gun and 1300W drill, has high working efficiency and strong drive-force. It can be used for narrow gap welding and corners welding where are hard to reach.
Tips:
a. This welder start to weld when the temperature up to 300°c.
b. This welder is welded with HDPE PE or PP welding rod Φ3.0--Φ5.0mm.
c. Any customized demands, you can ask us directly. We have professional technicians team.
|
Model |
JIT-613 |
|
Voltage |
220V±5% |
|
Frequency |
50/60Hz |
|
Extruding Motor Power |
1300W |
|
Hot Air Power |
1600W |
|
Welding Rod Extruding Power |
900W |
|
Hot Air Temp |
20
℃
to 550℃ Digital Adjust
|
|
Extruding Temp |
300℃ - 420℃ Adjustable |
|
Welding Speed |
1.8-3.6 kg/h |
|
Welding Rod DIA |
3.0-5.0mm |
|
N.W. |
7.0kg |
|
Application |
HDPE,PP,PE |
|
Outer package dimension |
600mm*180mm*550mm |
Core Products
| Geomembrane Welding Machine |
Plastic Extrusion Welder |
|
Hot Air Welding Gun |
Roof Waterproofing Membrane Welding Machine |
|
Banner/Tarpaulin Welder |
Testing Tools |
|
Welding Accessories |
New Design Products |
Competitiveness
Our company formed plastics welder series products of the brand JOINTER. We are one member of China Geosynthetics Engineering Association. Our company masters abundant experience of plastic welding device and domestic leading level of manufacture skill.
Market
On the basis of domestic market, both brands gradually expand to oversea markets, mainly exported to North America, Europe, India, Southeast Asia and Australia market.
1. Why choose us?
We are manufacturer of plastic welders for over 15 years with technicians and offer professional solutions and after sales service.
2. How to guarantee the quality?
Warranty is 1 year, if there is any quality problem, we accept return or give spare parts for free.
3. Delivery?
1-20pcs are always on stock, we'll arrange delivery within 3 days after payment.
4. How to ship the machines?
We cooperate with FEDEX,TNT,DHL,UPS,EMS for long term, the machines arrive at your hand in 5 or 7 days.
5. Customized products accepted?
Yes, we make OEM products with labels and colors, also distributors all over the world.
6. How to contact to us with quick response?
Welcome to send email to us: sales1(@)jointer.com.cn , or left your WhatsApp or WeChat , Ada Tang will get in touch with you in time.
Phone number / WhatsApp and WeChat / Skype ID: +86 18705918780
