Quick Details
-
Warranty(Year):
-
2-Year
-
Product Weight（kg）:
-
19.5
-
Input Voltage(V):
-
240V
-
Lamp Luminous Flux(lm):
-
1400
-
CRI (Ra>):
-
85
-
Working Temperature(℃):
-
20 - 40
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CPL
-
Emitting Color:
-
RGBW, White
-
Voltage:
-
120-240V
-
DMX Chs:
-
16 DMX Chs
-
Life Time:
-
50000 hours
-
Watts:
-
280W 5R Sharpy
-
Control Method:
-
DMX 512
-
Dimmer:
-
0-100%
-
Beam Angle:
-
Zoom 4-30egrees
-
Weight:
-
19.5KG
Quick Details
-
Color Temperature(CCT):
-
6000K (Daylight Alert)
-
Type:
-
Moving Head Lights
-
Application:
-
LANDSCAPE
-
Warranty(Year):
-
2-Year
-
Product Weight（kg）:
-
19.5
-
Input Voltage(V):
-
240V
-
Lamp Luminous Flux(lm):
-
1400
-
CRI (Ra>):
-
85
-
Working Temperature(℃):
-
20 - 40
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CPL
-
Emitting Color:
-
RGBW, White
-
Voltage:
-
120-240V
-
DMX Chs:
-
16 DMX Chs
-
Life Time:
-
50000 hours
-
Watts:
-
280W 5R Sharpy
-
Control Method:
-
DMX 512
-
Dimmer:
-
0-100%
-
Beam Angle:
-
Zoom 4-30egrees
-
Weight:
-
19.5KG

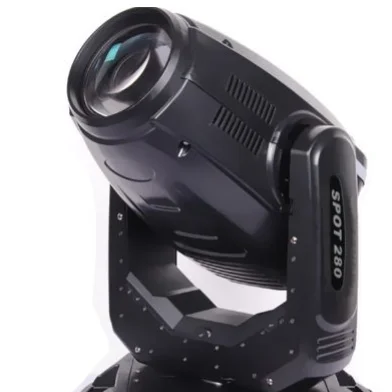

Stage Lights Robe Pointe 280W Stan Sharpy 10r 280 Watt Beam Spot Wash BSW 3in1 Moving Head light
Specifications
Voltage: 200~240V/50-60Hz (100~120V/ 50-60Hz selective )
Watts : 280W,7950 lm,color temperature 8000K
Lamp : OSRAM HRI 280W
Function: Dot-matrix display, four touch switches can be reversed 180 °display
Color: 17 color + blank color wheel
Gobo: 17 fixed gobo + 9 rotationable gobo effect
Prism: rotation 4-face prism, Bilateral rotation , Zoom:4-30degrees
Lens: high precision glass optical lens
Wash effect: adjustable Wash effects angle
Focus: linear adjustment
Dimmer: 0-100% linear adjustment
Movement: Pan/Tilt : X axis 540° Y axis 250°automatically accurate positioning
Strobe: Double lens strobe (0.5-9 times/ second)
Control mode : Standard DMX512, Automatic and Master/ slave mode
IP: IP20
Size: 523x337x570mm
Weight: 18.5kg
Product Show
Attention:
For your own safety, please read this manual before installingthe device.
This manual covers the important information on installation and applications.
Please install and operate the fixture with following instructions.
RELATED PRODUCT
PRODUCT INFORMATION
PRODUCT ADAVANTAGE
1. LED lamp bead arrangement, in strict accordance with the optical distribution. (when mixed color spot clean)
2.Advanced machine to weld lamp bead
3.Silent SUNON fan with good heat dissipation
4.French 8 degree Gaggione lens
5.Latest edition of IC chip 6205, promote speed
6.Strong twisting force motor
7.PFC power supply
8.Neutrik PowerCon power cord, quick lock
INSTALLATION:
Vertical hanging or flat on the ground directly, not recommended side hangIing that is easy to damage
the lamp. If needed hook effect, please consider security problems of engineering installation.
PRODUCTION PROCESS
Delivery time: sample (3-5 days) formal order (15-20 days)
Main market: Europe and the United States, South America
WARRANTY
Maintenance and Cleaning
The following points have to be considered during the inspection:
1) All screws for installing the devices or parts of the device have to be tightly connected and must not be corroded.
2) There must not be any deformations on the housing, color lenses, fixations and installation spots (ceiling,suspension, trussing).
3)Mechanically moved parts must not show any traces of wearing and must not rotate with unbalances.
4)The electric power supply cables must not show any damage, material fatigue or sediments.
Further instructions depending on the installation spot and usage have to be adhered by a skilled inst- aller and any safety problems have to be removed.
In order to make the lights in good condition and extend the life time, we suggest a regular cleaning to thelights.
1) Clean the inside and outside lens each week to avoid the weakneness of the lights due to accumul- ation of dust.
2) Clean the fan each week.
3) A detailed electric check by approved electrical engineer each three month, make sure that the circ- uit contacts are in good condition, prevent the poor contact of circuit from overheating.
We recommend a frequent cleaning of the device. Please use a moist, lint- free cloth. Never use alco- hol or solvents
There are no serviceable parts inside the device. Please refer to the instructions under “Installation instructions”.
Should you need any spare parts, please order genuine parts from your local dealer.
CERTIFICATION
EFFECT PICTURE
FACTORY INFORMATION
Guangzhou California Pro-Lighting Co.LTD situated in Baiyun District Guangzhou City. We are a professional Stage lighting manufacturer that covers 2000m2 and owns High-Tech instrument and modernizing equipment, including more than 100 employees,we possess a strong and outstanding research and development team, they continually create many marvelous products.
