Quick Details
-
Weight:
-
260KG, 260KG
-
Product name:
-

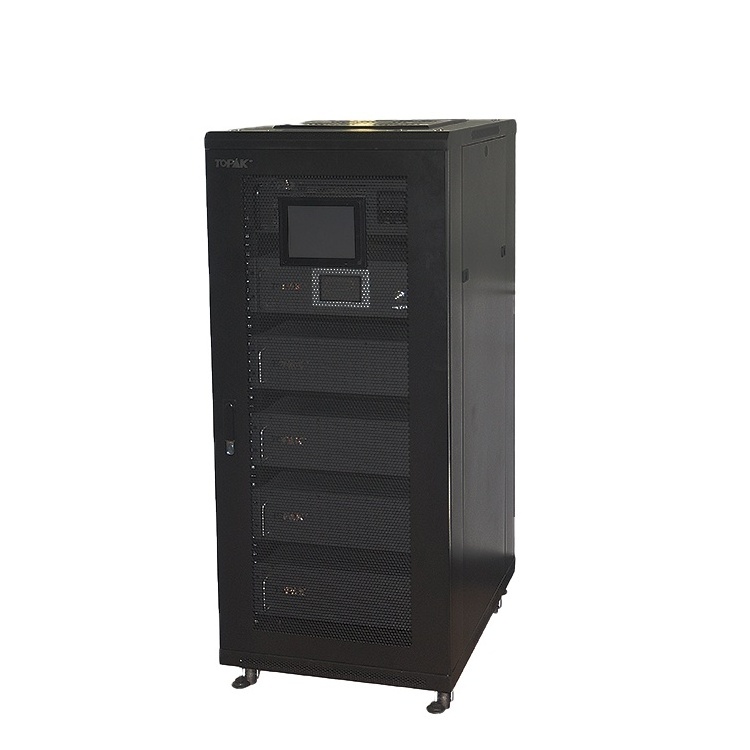

TOPAK ups backup power system
-
Nominal Voltage:
-
240Volts
-
Nominal Capacity:
-
86Ah
-
Rack Cabinet Size:
-
600*600*1400mm
-
Battery Size:
-
440*442*177mm
-
Communication:
-
RS485/RS232/CAN
-
Protection Class:
-
IP20
-
module specification:
-
15S1P
-
Certification:
-
MSD,CE,ROSH and UN38.8
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TOPAK
-
Model Number:
-
UPS24086
-
Weight:
-
260KG, 260KG
-
Product name:
-
TOPAK ups backup power system
-
Nominal Voltage:
-
240Volts
-
Nominal Capacity:
-
86Ah
-
Rack Cabinet Size:
-
600*600*1400mm
-
Battery Size:
-
440*442*177mm
-
Communication:
-
RS485/RS232/CAN
-
Protection Class:
-
IP20
-
module specification:
-
15S1P
-
Certification:
-
MSD,CE,ROSH and UN38.8
|
Voltage range(V)
|
202~273V
|
Number of cycles (25°C,0.5C/1C,100%DOD
|
>2500
|
|
Batteries specifications
|
3.2V86Ah
|
Charging temperature (°C)
|
0~55°C
|
|
Module specifications
|
15S1P
|
Discharge temperature (°C)
|
-20~55°C
|
|
Number of series and parallel systems
|
75S1P
|
Working humidity
|
<95%R.H(non-condensing)
|
|
Rated voltage(V)
|
240V
|
Communication methods
|
CAN, RS485, or RS232
|
|
Nominal capacity(Ah)
|
86Ah
|
Dry contact
|
Customization
|
|
Rated energy(KWh)
|
20.6kwh
|
Battery box size (W*D*H,mm)
|
440*442*177mm
|
|
Maximum output power(KW)
|
20.6kw
|
Main control box size(W*D*H,mm)
|
440*442*177mm
|
|
Maximum discharge current(A)
|
86A
|
Cabinet dimensions (W*D*H,mm)
|
600*600*1400mm
|
|
Maximum charging current(A)
|
86A
|
Protection grade
|
IP20
|
|
Discharge cut-off voltage(V)
|
202V
|
System reference weight (KG)
|
260KG
|
|
Maximum charging voltage(V)
|
273V
|
Certification
|
CE/UN38.3
|
