Quick Details
-
Type:
-
Air Conditioner Parts
-
Thickness of Duct:
-
At Least 0.17mm
-
Standard length:
-
10m(Max)
-
Available Diameters:
-
40mm-650mm (1.5"-25")
-
Temperature Range:
-
-30℃/+150℃
-
Fire resistance:
-
limited combustibility
-
Operating Pressure:
-
3000 Pa
-
OEM:
-
available
-
Certification:
-
RoHS
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
QIANJING
-
Model Number:
-
XY-201
-
Type:
-
Air Conditioner Parts
-
Thickness of Duct:
-
At Least 0.17mm
-
Standard length:
-
10m(Max)
-
Available Diameters:
-
40mm-650mm (1.5"-25")
-
Temperature Range:
-
-30℃/+150℃
-
Fire resistance:
-
limited combustibility
-
Operating Pressure:
-
3000 Pa
-
OEM:
-
available
-
Certification:
-
RoHS
Product Description
Parameter list
| Product Code | XY-110 |
| Construction | 1 Aluminum Foil+ 2 PET |
| Color | Silver |
| Available Diameter | 40mm-650mm (1.5"-25") |
| Carbon Steel Wire Diameter | 0.6mm-2.5mm |
| Standard Length | 10m(max) |
| Thickness | At Least 0.17mm |
| Fire Resistance | Class A2 (Max) |
| Compress Ratio | 1 : 25 |
| Temperature Range | -30℃/+150℃ |
| Operating Pressure | 3000Pa |
| Maximum Air Velocity | 30 m/s |
Product features

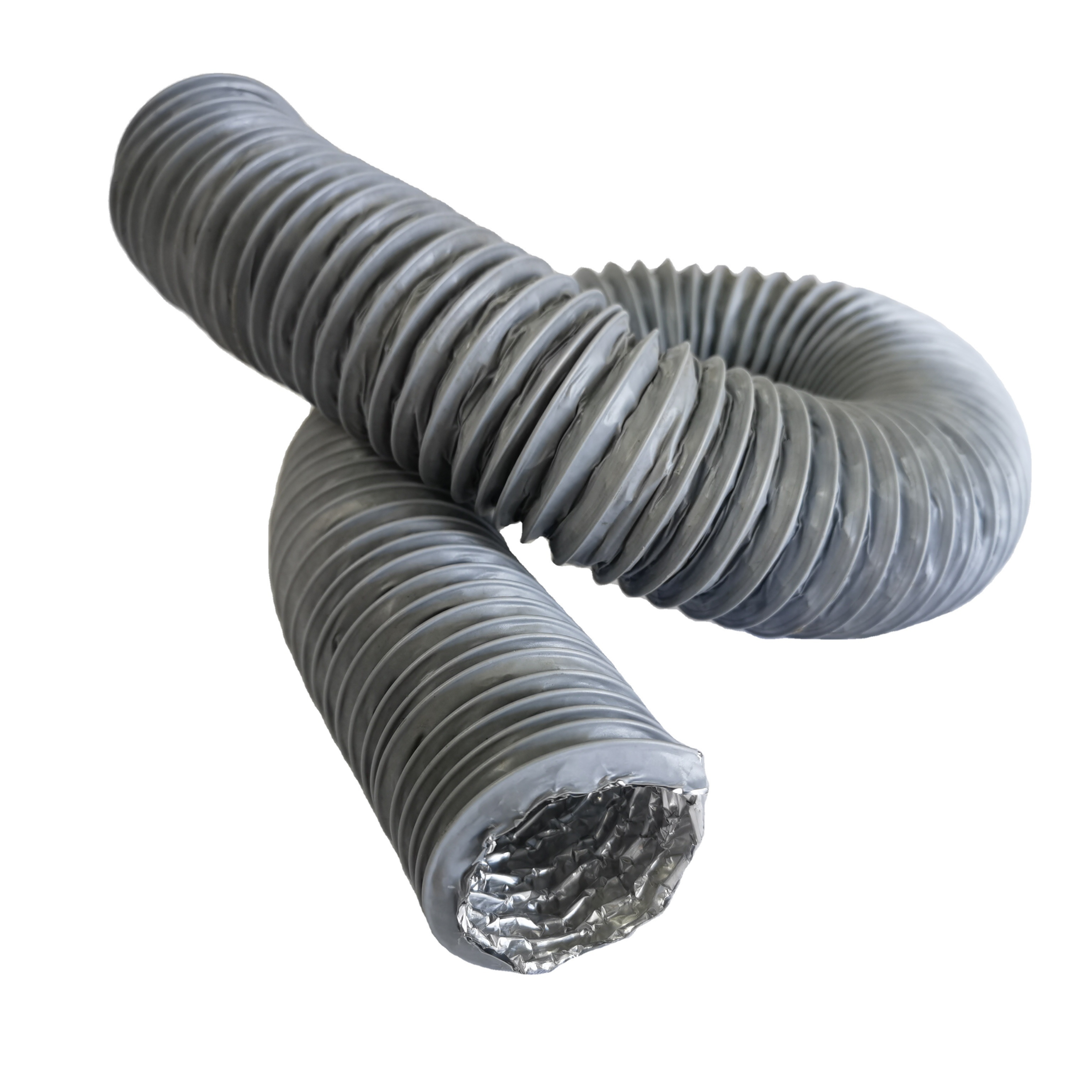

Made of spiral steel wire laminated with aluminum/polyester foil.
Self-holding during usage and low wind resistance.
No toxic gases release at high temperature or in the case of fire alarm.
Ideal for using in general purpose exhaust applications.
