Quick Details
-
Voltage:
-
220V 50HZ
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MingNa
-
Dimension(L*W*H):
-
930*300*320mm
-
Weight:
-
45 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product Name:
-
Cosmetic packaging tube filling machine
-
Filling Speed for one nozzle:
-
10-30 Bottles/Min
-
Current:
-
1A
-
Brand of Pneumatic Parts:
-
Germany FESTO,Taiwan AIRTAC, SHAKO
-
Air Pressure:
-
0.4-0.6mpa
-
Precision:
-
±0.5%-±1%
-
Filling Volume:
-
5-100ml, 10-200ml, 50-500ml, 100-1000ml, 500-2500ml, 1000-5000ml
-
Sealing parts:
-
made of PTFE, silicone
Quick Details
-
Machinery Capacity:
-
8000BPH, Other, 500BPH
-
Packaging Material:
-
Glass, Metal, Plastic, oil, etc
-
Filling Material:
-
Beer, Milk, Oil, Powder
-
Voltage:
-
220V 50HZ
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MingNa
-
Dimension(L*W*H):
-
930*300*320mm
-
Weight:
-
45 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product Name:
-
Cosmetic packaging tube filling machine
-
Filling Speed for one nozzle:
-
10-30 Bottles/Min
-
Current:
-
1A
-
Brand of Pneumatic Parts:
-
Germany FESTO,Taiwan AIRTAC, SHAKO
-
Air Pressure:
-
0.4-0.6mpa
-
Precision:
-
±0.5%-±1%
-
Filling Volume:
-
5-100ml, 10-200ml, 50-500ml, 100-1000ml, 500-2500ml, 1000-5000ml
-
Sealing parts:
-
made of PTFE, silicone

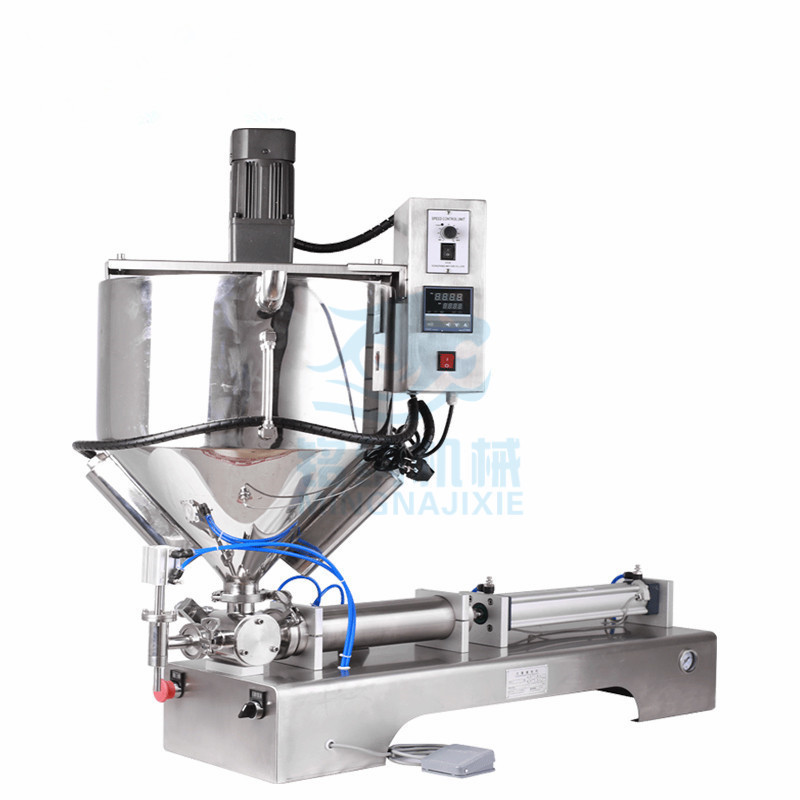

Cosmetic Liquid And Paste Packaging Tube Filling Machine
Work Principle:
This tube liquid and paste filler machine, drives a piston to absorb and release the material by a cylinder, with an one-way valve to controls the material flow and movement. In the same time, a magnetic switch controls cylinder stroke and then can adjust the filling volume.
|
Model |
YL / YLB |
|
Voltage |
200v±5v 110v±5v |
|
Current |
1A |
|
Power |
10W |
|
Air Pressure : |
0.4-0.6mpa |
|
Filling Speed |
Single Head: 10-30 Bottles / Min Double Head: 20-60 Bottles / Min |
|
Precision |
±0.5%-±1% |
|
Filling Volume |
5-100ml, 10-200ml, 50-500ml, 100-1000ml, 500-2500ml, 1000-5000ml |
|
Dimension(L*W*H) |
930*300*280(For Liquid type) 930*300*320(For Paste Type) |
Application for tube liquid and paste filler machine
Advantages:
1 . This tube liquid and paste filler machine is hopper self- priming type manual filling machine, has
reasonable structure compact shape, convenient operation, simple to maintain.
2. The pneumatic parts adopts Germany FESTO and Taiwan AIRTAC, SHAKO starting components.
3. Sealing parts are made of PTFE materials and silicone material s, with the advantages of corrosion resistance, aging resistance, high temperature resistance, good tightness , etc..
4. All the parts contacted with the material are made of 304 stainless steel,( 316 steel is optional),meets the requirement of GMP.
5.This machine is the ideal machine for food, pharmaceutical, chemical, cosmetic, oil, pesticide and other industries.
6.The filling range can be adjusted lightly,
safe
, reliable and
easily to operate.
7. Liquid filling machine or paste filling machine is optional according to your material, we also have single nozzle/ double nozzles/ no power pneumatic explosion-proof types for choice.
Deatiled Pictures:
Q1: Are you a factory or trading company?
A1: We are a factory specialized in bag / tube / powder / liquid pacakging machinery. Such as comestic sealing
filling machine,cosmetic packaging tube filling machine, 3D packaging machine, powder filling machine,
labelling machine, code inkjet printer and so on.
Q2: Where is your factory location? How can I visit there?
A2: Locates in 1st Floor, Building A, No. 38, Nanpu Street, Luopu Road, Panyu District, near to Guangzhou
South Railway Station, welcome to visit our factory.
Q3: How can I choose the machine I needed?
A3: Please contact with us andlet us know the packaging type, packaging material.According this,we recommend the suitable machine for you.You can also send your meterials to us then we can use our machine
to make samples according to your demand.
Q4: What’s the guarantee if we purchase from you?
- On e year warranty time from the delivery date , we can repair and replace parts for free in one year.
- Technical support in 24 hours online, TM, Skype, E-mail, solving the relative questions in time.
- Life time free maintenance service.
- Free training course at our factory with professional engineers.
- We provide the consumable parts at agent price when you need replacement.
Q5: Will you help us to install the machine and train us to operate if we purchase your machine?
A5: We will install everything before we arrange shipment, and the our machine is very easy to operate, we will
offer operation vedio and user manual for your reference, and welcome to our factory to learn the cosmetic packaging tube filling machine , t echnical support will online in 24 hours.
