10mm 360 degree DC5V/12V/24V white RGB Waterproof IP66 silicon glue flex strip rope LED neon light

10mm 360 degree DC5V/12V/24V white RGB Waterproof IP66 silicon glue flex strip rope LED neon light

FOB Reference Price: Get Latest Price

≥100 Meters

US $16

≥1000 Meters

US $15

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Application:: LANDSCAPE

Lamp Luminous Efficiency(lm/w):: rgb

Product Weight（kg）:: 1

CRI (Ra>):: 95

Lamp Luminous Flux(lm):: rgb

Working Temperature(℃):: -40 - 60

Working Lifetime(Hour):: 50000

Place of Origin:: Guangdong, China

Brand Name:: shijilighing

Model Number:: SJ-NHD-D40

Product Name:: 40mm neon case

PCB:: 2*10mm

Lighting Angle:: 360 degree

Voltage:: DC5V/12V/24V

LED QTY:: 30leds/m, 60leds/m, 144leds/m....etc

IP Grade:: IP68

Length:: 1M/2M/3M/4M/5M (OEM)

Connector:: clear/ black waterproof type

Certfication:: CE, ROHS, ISO9001

warranty:: 2 years

Quick Details

Color Temperature(CCT):: 2700-7000k

Warranty(Year):: 2-Year

Lamp Body Material:: Silicon

Application:: LANDSCAPE

Lamp Luminous Efficiency(lm/w):: rgb

Product Weight（kg）:: 1

CRI (Ra>):: 95

Lamp Luminous Flux(lm):: rgb

Working Temperature(℃):: -40 - 60

Working Lifetime(Hour):: 50000

Place of Origin:: Guangdong, China

Brand Name:: shijilighing

Model Number:: SJ-NHD-D40

Product Name:: 40mm neon case

PCB:: 2*10mm

Lighting Angle:: 360 degree

Voltage:: DC5V/12V/24V

LED QTY:: 30leds/m, 60leds/m, 144leds/m....etc

IP Grade:: IP68

Length:: 1M/2M/3M/4M/5M (OEM)

Connector:: clear/ black waterproof type

Certfication:: CE, ROHS, ISO9001

warranty:: 2 years

Product Description

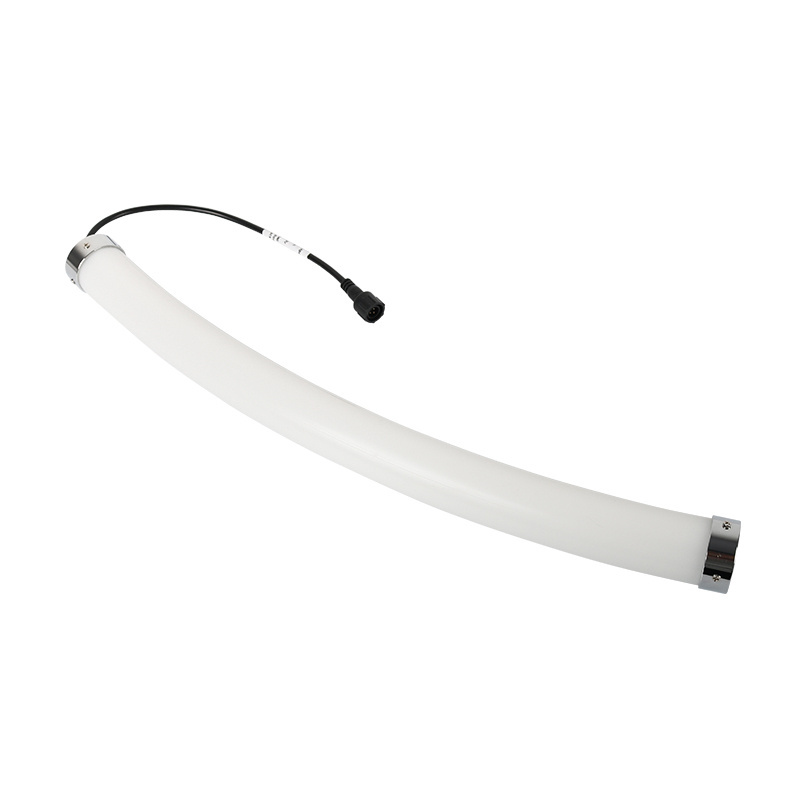

Product Name	D40 neon tube
Section size	D40
Beam Angle	360 deg
PCB Width	2*10mm
Operating Voltage	DC5V/12V/24V
Emitting color	RGB/full color/single color are all available
Pixel (per meter)	30leds/m, 48leds/m, 60leds/m,120leds/m...etc.any strips if the PCB width is 10mm
Waterproof Rating	IP68
Length	1m or customized length
Net Weight	Weight: 1300g/M

SJ-NHD-D40

- Size: φ40mm

- PCB: 2*10mm

- Lighting Angle: 360°

- Weight: 1300g/M

- This neon strip is side view 360 degree with a translucent silicone rubber as a diffuser, light uniform and no spot.

- It is designed to be bent up to down with light
projecting upwards.

- This silicone rubber is anti-UV, anti-aging, anti-yellowing, environmental protection, non-toxic, and very soft.

- Standard length is 1M/roll

- IP68 waterproof for outdoor use

- Each meter includes 2pcs alu clips for installation

Key Features :

* Available in color temperature options: 2700K / 3000K / 4000K / 6000K / 10000K / RGB Pixel / RGBW colors etc.

* LED Source: SMD5050 30/60/72/144 LEDs/M - RGB / RGB Pixel / RGBW
*PCB Width: 10 MM
*Beam Angle: 360 degrees
*Bending Direction: Horizontal Bending / Side Bending
* Input Voltage: DC 5V / 12V/24V
* IP Level: IP68 Waterproof
* Warranty: 2 years warranty
* Connector: 2pin/3pin/4pin male/female connector
* Accessories: End Cap / Mounting Clip / Aluminum Profile
* Package: 5 meters / roll or customized

Power and Controller

MEANWELL Power. We usually use Meanwell power supply for clients.MEAN WELL is one of few manufacturers dedicated to standard power supply in the world. It is ranked the 5th in global power supply (DC output) in March 2017.

Controller System .We usually use SINGBA LIGHT controllers and YUMING vision controllers.we can provide both on-line and off-line controller systems. The pixel qty can range from 100~1000000 pixels. we can help you with the wire program and animation program.

Other accessories

60-SK6812-5V

144-SK6812-5V Side View

144-APA102C-5V

30-DMX512-5V

64-DMX512-12/24V, Meteor Tube

48-UCS2903-24V, Led wall washer

Application

* Show exhibition decoration luminous characters
* Theaters, clubs, shopping malls lighting
* LED programmable digital display * Auditorium walk stairway lighting
* Architectural decorative lighting
* Boutique atmosphere lighting
* Wine cabinet decoration * Backlighting decoration
* Hotels decoration use
* Advertising lighting
* Concealed lighting
* Cove decoration
* Holiday lighting
* Hidden groove
* KTV Lighting
* Bar Lighting
