Without manual focusing
The software automatically adjusts the focusing lens to realize automatic perforating and cutting plates of different
thickness. The speed of automatically adjusting focus lens is ten times of the manual adjusting.
*
Bigger adjustment range
Adjustment range -10 mm~ +10mm, precision 0.01mm, suitable for 0 ~ 20mm different types of plates.
*
Long service life
Collimator lens and focus lens both have water-cooling heat sink which reduces the temperature of the cutting head to improve
the life of the cutting head.
- Product Details
- {{item.text}}
Quick Details
-
Control System Brand:
-
WEIHONG
-
Cutting Thickness:
-
1-16mm
-
Control Software:
-
Ruida
-
Place of Origin:
-
HUB
-
Brand Name:
-
company name
-
Weight (KG):
-
1800 KG
-
Machinery Test Report:
-
Provided CE certificate
-
Type:
-
laser cutting
Quick Details
-
Laser Type:
-
Fiber Laser
-
Cutting Speed:
-
1-10000mm/min
-
Cooling Mode:
-
WATER COOLING
-
Control System Brand:
-
WEIHONG
-
Cutting Thickness:
-
1-16mm
-
Control Software:
-
Ruida
-
Place of Origin:
-
HUB
-
Brand Name:
-
company name
-
Weight (KG):
-
1800 KG
-
Machinery Test Report:
-
Provided CE certificate
-
Type:
-
laser cutting
Product Description
Product Description
The operating area adopts a 304 stainless steel design to prevent high temperature cutting sparks from damaging the machine's surface.
It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries. Aviation aluminum has many advantages, such as good toughness,light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.
The operating area adopts a 304 stainless steel design to prevent high temperature cutting sparks from damaging the machine's surface.
|

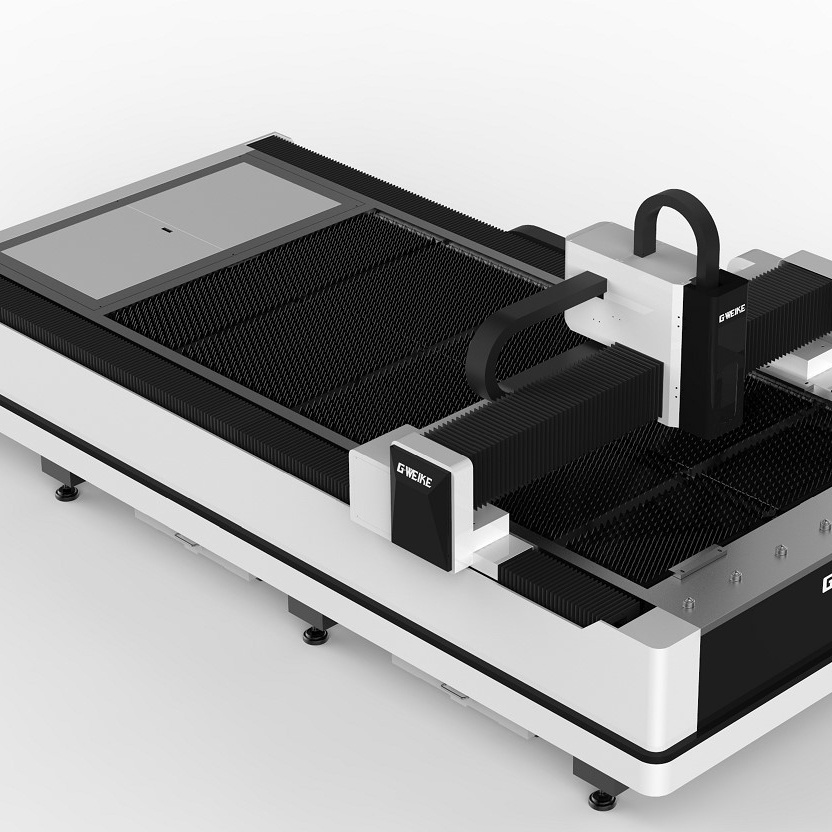

Machine model
|
LF3015E PRO
|
|
Laser power
|
1000W 2000W 3000W
|
|
Dimensions
|
4600*2450*1700mm
|
|
Working area
|
3000mm x 1500mm
|
|
Repeat positioning accuracy
|
±0.02mm
|
|
Maximum speed
|
60m/min
|
|
Voltage and frequency
|
220V/380V 50Hz/60Hz
|
Details Images
Without manual operation, it can focus automatically
3rd Generation Aviation Aluminum Gantry
It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries. Aviation aluminum has many advantages, such as good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.
IPAD Designing Screen
Ipad design screen, has a vertical screen display, different from the traditional horizontal screen display with good response
speed, higher contrast, wider view, low power consumption as well as high resolution.
In addition, it possesses high brightness levels and lower reflectivity as well as solid glass panel sturdiness and durability.
speed, higher contrast, wider view, low power consumption as well as high resolution.
In addition, it possesses high brightness levels and lower reflectivity as well as solid glass panel sturdiness and durability.
Transmission and Precision
G·WEIKE fiber laser cutting machine is equipped with Delta servo motor, French Motoreducer and Taiwan YYC rack. The repeat positioning accuracy of the machine tool can be 0.02mm. The working life is more than 10 years.
Samples Show
Packaging & Shipping
Company information
Exhibition
FAQ
1. What is fiber laser cutting machine?
Fiber laser cutting machine adopts fiber laser source to output laser beam in high power density, which is focused on the
artifacts to make the irradiated area fused and gasified. Then the laser head controlled by the CNC system moves on to cut the
artifacts automatically.
2. What material can fiber laser machine cut?
Stainless steel, carbon steel, mild steel, galvanized steel, aluminum, copper, brass and other metal sheet and pipe.
3. What's the max. cutting thickness?
Cutting thickness is related to laser power.
300W: 1.5mm stainless steel, 4mm carbon steel
500W: 3mm stainless steel, 6mm carbon steel
1000W: 5mm stainless steel, 12mm carbon steel
2000W: 10mm stainless steel, 18mm carbon steel
4. I never used this kind of machine before. Is it easy to install and operate this machine?
We provide machine manuals, operation procedures and other relevant materials, including video CD and English instruction manual.
If required, our technicians will follow up the installation and debugging in the whole process and provide about 3-7 days free
operation and maintenance training for customers.
5. How long will it take to learn to operate a laser machine?
If you are able to use some basic graphic design software, it will only take a few hours to master the operation. You just need to
do some simple tests on different processing materials to know how to set the correct speed and laser power.
Fiber laser cutting machine adopts fiber laser source to output laser beam in high power density, which is focused on the
artifacts to make the irradiated area fused and gasified. Then the laser head controlled by the CNC system moves on to cut the
artifacts automatically.
2. What material can fiber laser machine cut?
Stainless steel, carbon steel, mild steel, galvanized steel, aluminum, copper, brass and other metal sheet and pipe.
3. What's the max. cutting thickness?
Cutting thickness is related to laser power.
300W: 1.5mm stainless steel, 4mm carbon steel
500W: 3mm stainless steel, 6mm carbon steel
1000W: 5mm stainless steel, 12mm carbon steel
2000W: 10mm stainless steel, 18mm carbon steel
4. I never used this kind of machine before. Is it easy to install and operate this machine?
We provide machine manuals, operation procedures and other relevant materials, including video CD and English instruction manual.
If required, our technicians will follow up the installation and debugging in the whole process and provide about 3-7 days free
operation and maintenance training for customers.
5. How long will it take to learn to operate a laser machine?
If you are able to use some basic graphic design software, it will only take a few hours to master the operation. You just need to
do some simple tests on different processing materials to know how to set the correct speed and laser power.
