High torque reducer,use water cooling control temperature
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
OCTTECH
-
Voltage:
-
380V/220V/440V
-
Dimension(L*W*H):
-
20000*2000*2500MM
-
Power (kW):
-
83
-
Weight:
-
4000 KG
-
Keywords:
-
pvc plastic pipe extruder production line
-
Final product:
-
PVC water supply drainage pipe electric pipe
-
Material:
-
PVC+additives
-
Automatic Grade:
-
Fully Automaitc
-
Inverter:
-
ABB Brand
-
Color:
-
Customized Color
-
Screw type:
-
Twin Conical Screw
-
Motor brand:
-
SIENEMS BEIDE
-
Processing Type:
-
PVC Extrusion Machine
-
Application Field:
-
Construction Material
Quick Details
-
Screw Design:
-
Double-screw
-
Screw L/D Ratio:
-
132:1
-
Screw Speed (rpm):
-
35 rpm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
OCTTECH
-
Voltage:
-
380V/220V/440V
-
Dimension(L*W*H):
-
20000*2000*2500MM
-
Power (kW):
-
83
-
Weight:
-
4000 KG
-
Keywords:
-
pvc plastic pipe extruder production line
-
Final product:
-
PVC water supply drainage pipe electric pipe
-
Material:
-
PVC+additives
-
Automatic Grade:
-
Fully Automaitc
-
Inverter:
-
ABB Brand
-
Color:
-
Customized Color
-
Screw type:
-
Twin Conical Screw
-
Motor brand:
-
SIENEMS BEIDE
-
Processing Type:
-
PVC Extrusion Machine
-
Application Field:
-
Construction Material
Products Description
PVC plastic pipe extrusion line is mainly used in the area of agricultural water supply system,architectural water supply
drainage system, pavement of cables and all sorts of PVC pipe with different diameter and wall thickness.

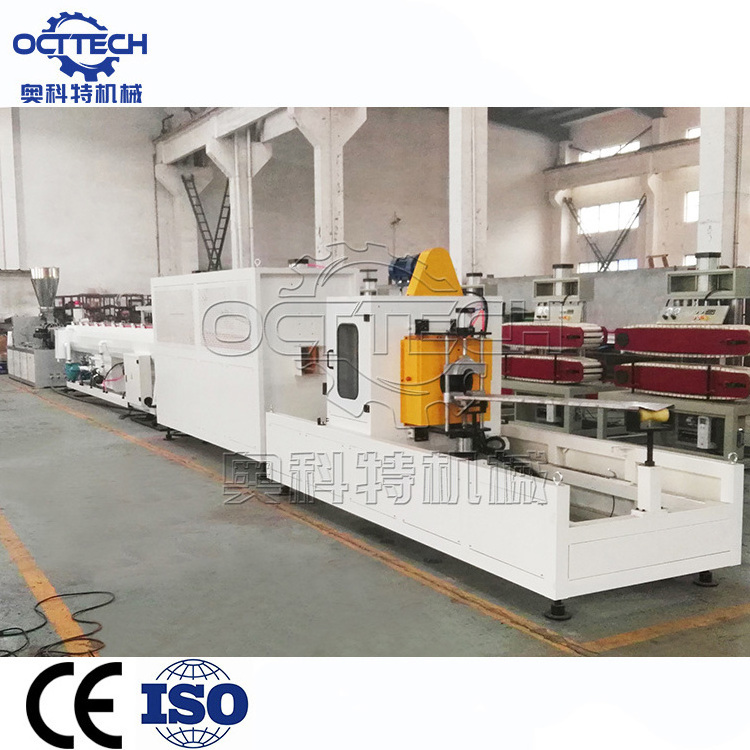

This machine line consists twin conical Screw extruder,vacuum calibration tank,haul-off unit,cutting machine and stacker.
The Screw extruder and haul-off unit have applied imported A/C inverter;both vacuum pump and driving motor have applied excellent products.
The drawing machine includes two-claw type,three-claw type,four-claw type,six-claw type,eight-claw type...etc..
Sawing cutting or planet cutting can be applied,it is additionally applied with length measuring meter and thickness increasing device,the property of machine group is reliable,the production efficiency is high.The planetary cutting machine is fully automatic computer digital control;it has such advantages of simple operation,reliable property, etc.
drainage system, pavement of cables and all sorts of PVC pipe with different diameter and wall thickness.
This machine line consists twin conical Screw extruder,vacuum calibration tank,haul-off unit,cutting machine and stacker.
The Screw extruder and haul-off unit have applied imported A/C inverter;both vacuum pump and driving motor have applied excellent products.
The drawing machine includes two-claw type,three-claw type,four-claw type,six-claw type,eight-claw type...etc..
Sawing cutting or planet cutting can be applied,it is additionally applied with length measuring meter and thickness increasing device,the property of machine group is reliable,the production efficiency is high.The planetary cutting machine is fully automatic computer digital control;it has such advantages of simple operation,reliable property, etc.
Machine Working Flow
Screw loader→Conical twin screw extruder→Mould→Vacuum calibration tank→Cutter machine→Stacker→Electric control cabinet
Product Paramenters
|
Model
|
Pipe range
(mm) |
Extruder
|
Capacity
(kg/h) |
Main motor power(kw)
|
Total power
(kw) |
Line length
(m) |
|
UPVC63
|
16-63
|
SJZ51/105
|
80-120
|
18.5
|
50
|
22
|
|
UPVC160
|
75-160
|
SJZ65/132
|
200-250
|
37
|
100
|
22
|
|
UPVC250
|
110-250
|
SJZ65/132
|
200-250
|
37
|
120
|
30
|
|
UPVC315
|
160-315
|
SJZ80/156
|
300-400
|
55
|
200
|
30
|
|
UPVC450
|
200-450
|
SJZ80/156
|
300-400
|
55
|
220
|
36
|
|
UPVC630
|
315-630
|
SJZ92/188
|
400-800
|
90
|
350
|
42
|
Product Details
CONICAL TWIN-SCREW EXTRUDER
Material of screw and machine barrel:38CrMoALA
MOULD
Basic mould,Die head material:40Cr
VACUUM CALIBRATION WATER TANK
Vacuum tank Length:6000mm
Equipped with water temperature and water level controlled by Floating ball switch.
Equipped with water temperature and water level controlled by Floating ball switch.
HAUL OFF MACHINE
Belt type:Rubber block
Belt adjust type:Pneumatic clamp device control
Traction speed:Inverter control the speed.
Belt adjust type:Pneumatic clamp device control
Traction speed:Inverter control the speed.
PLANETARY NO-SCRAP CUTTER
Cutting type:Planetary type cutting
Control method:PLC control
Cutter Motor:2.2kw
Planetary Rotary motor:1.5kw
Dust collect motor:2.2kw
Control method:PLC control
Cutter Motor:2.2kw
Planetary Rotary motor:1.5kw
Dust collect motor:2.2kw
PIPE BELLING MACHINE
Pipe Form:U type,R type or square type
Forming method:Air or water cooling
Working pipe length:3-6m
Compressed air pressure:0.4-0.6Mpa
Forming method:Air or water cooling
Working pipe length:3-6m
Compressed air pressure:0.4-0.6Mpa
CONTROL CABINET
France Schneider contactor
Japan Omron temperature controller
ABB invertor.
Japan Omron temperature controller
ABB invertor.
FINAL PRODUCT:PVC water supply pipe,drainage pipe,electrical pipe
