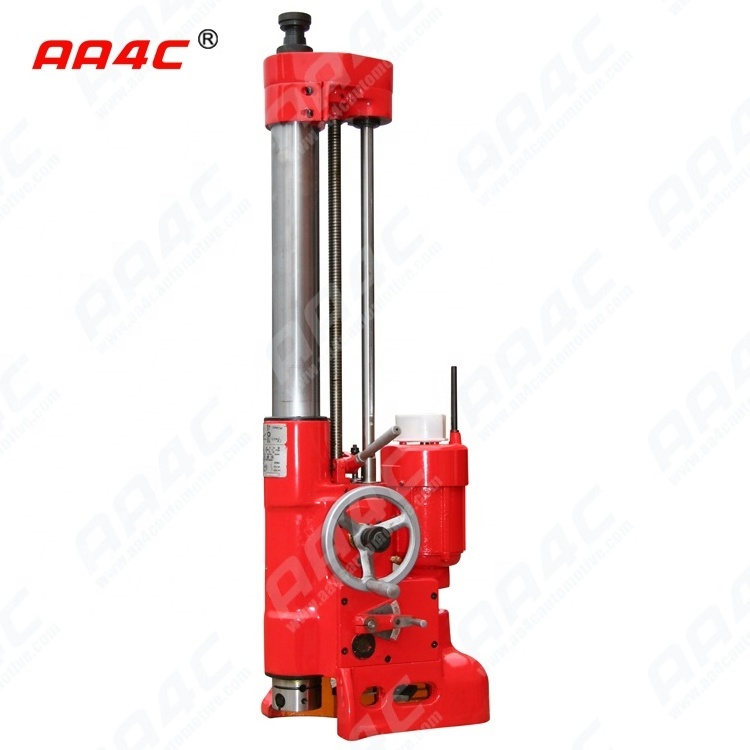

Hot-sale Portable Cylinder Boring Machine T8014A
Air-floated Portable Boring Machine
Cylinder boring machine
Boring machine
Features
This machine is small in size, light in weight, it is mainly used for reboring engine cylinders of motor cycles, automobiles and middle & small-tractors.
Main specifications
|
Model |
T8014A |
T8016A |
|
|
Boring diameter |
Φ65-Φ140 mm |
Φ80-Φ165 mm |
|
|
Max. boring depth |
300 mm |
400 mm |
|
|
Spindle speed |
250;380 r/min |
200;300 r/min |
|
|
Spindle feed |
0.11 mm / r |
0.12 mm / r |
|
|
Spindle rapid reset |
636 mm / min |
780 mm / min |
|
|
Motor |
Voltage |
220/380 V |
220/380 V |
|
Power |
0.25/0.37 Kw |
0.25/0.37 Kw |
|
|
Speed |
1440 r/min |
1440 r/min |
|
|
Overall dimensions |
320×330×850 mm |
360×345×1100 mm |
|
|
Packing dimensions |
540×470×1030 mm |
62 Kg |
|
|
Weight |
500×490×1270 mm |
85 Kg |
|
