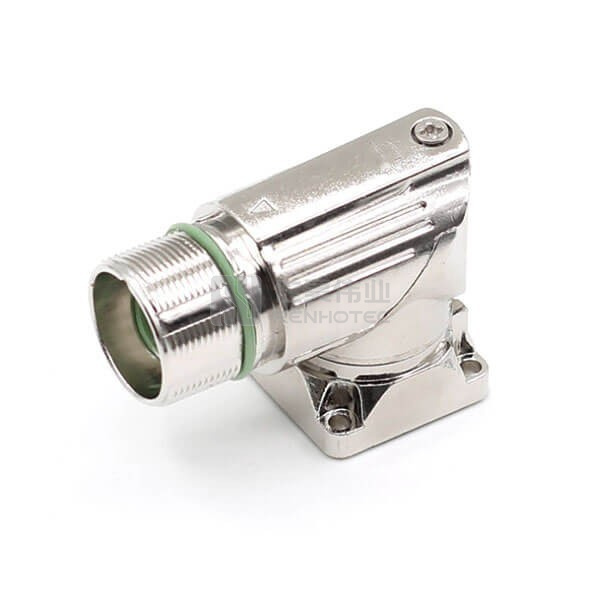

8Pin Plug m23 Servo Connector Battery Waterproof Hybrid Power M23 Circular Right Angle Connector

8Pin Plug m23 Servo Connector Battery Waterproof Hybrid Power M23 Circular Right Angle Connector

FOB Reference Price: Get Latest Price

≥20 Pieces

US $12

≥100 Pieces

US $10.95

≥500 Pieces

US $9.75

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: Renhotec

Model Number:: M23 Field Wireable Connetor

Description:: Battery Waterproof M23 6Pin Power Connector Circular Right Angle

Mounting Type:: Cable

Coding:: P / E

Orientation:: Straight / Right Angle

Shell Material:: Plastic / Metal

Rated voltage:: 125V~300V

Termination Style:: Solder / Crimp

Rated Current:: 8A~20A

Cable Diameter:: 4.0mm ~ 8.0mm

Certificate:: CE ROHS

Quick Details

Type:: Circular Connector

Application:: Automotive

Gender:: Female and Male

Place of Origin:: Guangdong, China

Brand Name:: Renhotec

Model Number:: M23 Field Wireable Connetor

Description:: Battery Waterproof M23 6Pin Power Connector Circular Right Angle

Mounting Type:: Cable

Coding:: P / E

Orientation:: Straight / Right Angle

Shell Material:: Plastic / Metal

Rated voltage:: 125V~300V

Termination Style:: Solder / Crimp

Rated Current:: 8A~20A

Cable Diameter:: 4.0mm ~ 8.0mm

Certificate:: CE ROHS

Product Description

Battery Waterproof M23 6Pin Power Connector Circular Right Angle Connector

M23 Series Connector

IP rating: IP67 Coupling: Threaded

No. ofcontact:

1. for power: 6 , 8 Pin 2. for sinal: 6 , 7 , 9 , 12 , 17 , 19 Pin

Advantages :

1. High degree of protection IP67 , safe to use on site 2. High quality gold-plated solid phosphor bronze contacts , ≥ 600 times mating life 3. Anti-vibration locking screw design 4. Support samples , retail and bulk orders

Series	M23
Coupling	Threaded coupling
Terminal	Crimping
Number of Contacts	6 / 7 / 9 / 12 / 17 / 19 Pin
Gender	Male / Female
Orientation	Straight
Termination	Soldering
Rated Current	26A-600V / 28A-600V
Insulation resistance	3000
Temperature Range	-25°C ~ + 80°C
Contact material	Copper(Silverplated/Gold)

To ensure that the product is fully adapted, please confirm the connector size, gender, contacts nos , and the related technical parameters before placing the order !!!

Contact us for more information

Hot - Selling Product

One-stop Service

GX Series>>

MS5015 Series>>

Application Industry

Sensor and actuators

Industrial camera

Industrial I/O connections

Pharmaceutical manufacturing

Robotic systems

Packaging, Labeling & Logistic

About Us

Packing & Delivery

Packing Details :

1. Our standard packing: Individual part with transparent PE bag with label; 2. Carton size: 28*24*20(CM) 3. OEM package available

Shipping Methods :

1. Samples and Small quantity order

FedEx/DHL/UPS/TNT/SF ,Door to Door.

2. Batch goods : Express, By Air, by Sea or by Rail

3. FCL: Airport/Seaport/Railway Station receiving

Lead Time: 1-7 working days for samples; 7-15 working days for mass

FAQ

1: Do you provide samples ? Is that free or need to charge. Yes, samples supply is acceptable. Samples cost depends on the requested quantities .

2: How long is your delivery time? Normally it will take 1-3 days if the goods are in stock. Delivery time is about 7-10 days if arranged production. It also depends on the order quantity.

3: What is your terms of payment ? We accept bank transfer, T/T, Paypal & Western Union, or other payment methods.

4: What is your after-sales service ？ All our the customers can enjoy the after-sales service for“one year quality warranty, and lifetime technical support”. Quotation will be send to you within 24 hours after receiving your specific inquiry. For more information and items, please feel free to contact us > >
