Quick Details
-
Application:
-
IPTV Headend Systems
-
Product name:
-
MODULATOR
-
Input:
-
tuner/ASI/IP
-
Output:
-
16*DVB-C
-
Protocol:
-
UDP and RTP
-
Maximum simulcrypt CA:
-
4
-
Standard:
-
EN300 429/ITU-T J.83A/B/C
-
RF frequency:
-
30~999MHz, 1KHz step
-
Remote management:
-
Web NMS
Quick Details
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
COLABLE
-
Model Number:
-
COL5416TC
-
Application:
-
IPTV Headend Systems
-
Product name:
-
MODULATOR
-
Input:
-
tuner/ASI/IP
-
Output:
-
16*DVB-C
-
Protocol:
-
UDP and RTP
-
Maximum simulcrypt CA:
-
4
-
Standard:
-
EN300 429/ITU-T J.83A/B/C
-
RF frequency:
-
30~999MHz, 1KHz step
-
Remote management:
-
Web NMS

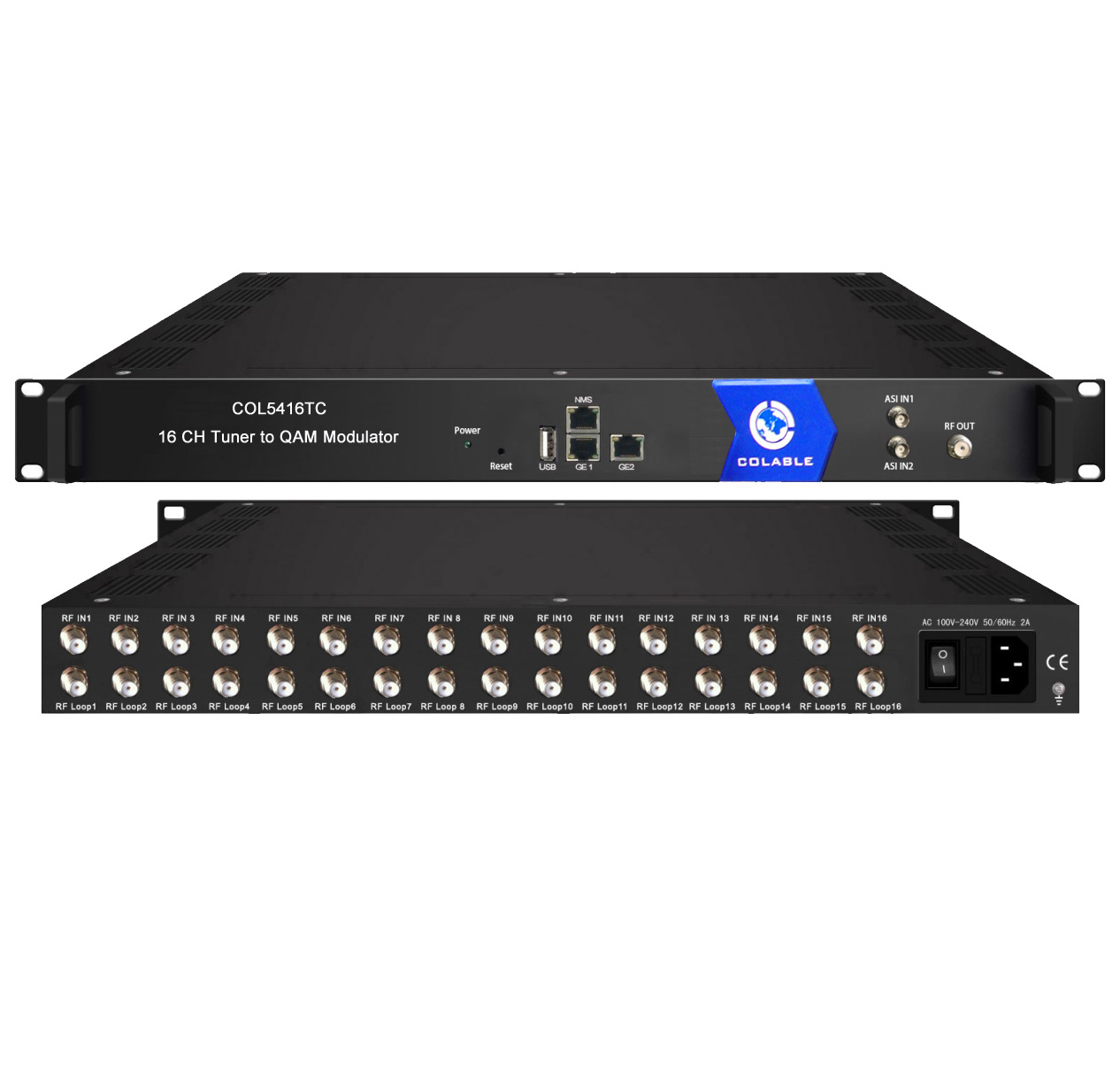

COL5416TC 16 CH Tuner to QAM Modulator
Outline
COL5416TC is a high performance and cost-effective QAM modulator. It has 16 DVB-C (DVB-T/S/S2/S2X, ATSC, ISDB-T optional ) FTA tuner input to 16 non-adjacent carrier output with multiplexing, scrambling and QAM modulating included. It also supports maximum 512 IP input port and one IP (MPTS) output through GE1 and TS input for re-mux through 2 ASI ports.
COL5416TC is also characterized with high integrated level, high performance and low cost. It supports dual power supply (optional). This is very adaptable to newly generation CATV broadcasting system.
Key Features
16 DVB-C (DVB-T/S/S2/S2X, ATSC, ISDB-T Optional) FTA Tuner + 2 ASI input+512 IP input through GE1 over UDP and RTP protocol
16*DVB-C RF output
Excellent RF output performance index, MER≥40db
Support 16 groups multiplexing+16 groups scrambling +16 groups QAM modulating
1 IP(MPTS) output over UDP and RTP/RTSP, as mirror of one carrier
Support accurate PCR adjusting
Support PSI/SI editing and inserting
Support Web management, Updates via web
Support dual power supply (optional)
