Quick Details
-
Brand Name:
-
OEM
-
Model Number:
-
XQ600
-
Name:
-
XINQI Heavy Duty Hand Winch, 600lbs
-
Certification:
-
CE SGS
-
Type:
-
Manual Hand Winch
-
Usage:
-
Towing, ATV Boat Trailer Marine
Quick Details
-
Power Source:
-
Hand
-
Application:
-
Boat/ATV/UTV
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
OEM
-
Model Number:
-
XQ600
-
Name:
-
XINQI Heavy Duty Hand Winch, 600lbs
-
Certification:
-
CE SGS
-
Type:
-
Manual Hand Winch
-
Usage:
-
Towing, ATV Boat Trailer Marine
Congratulations!!!
| You Found us a professional winches and accessories factory |

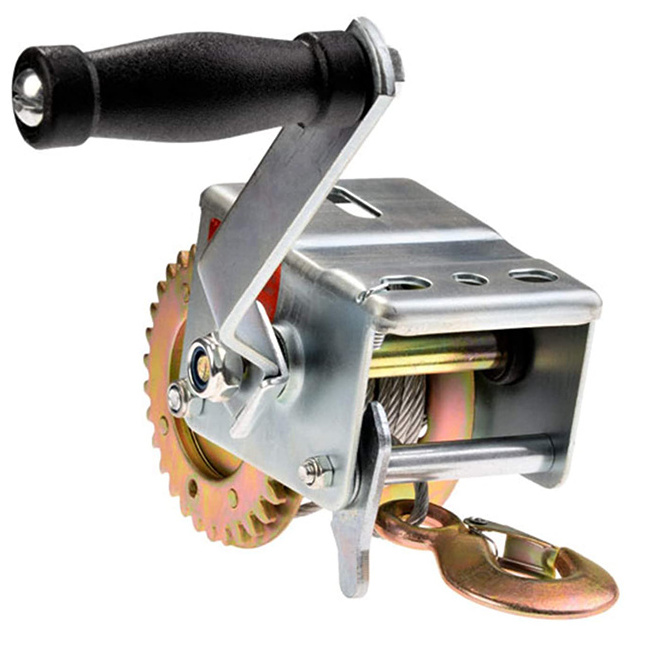

XINQI Heavy Duty Hand Winch 600lbs Hand Crank Strap Cable Gear Winch ATV Boat Trailer
We offer cable wire, strap and only winch version and more than 50 types; Work load:range from 600lbs(250kg) to 3500lbs(1500kg).
Specification:
| Item No. | Capacity | Gear Ratio | Strap | Way/Speed |
| XQ-600B | 600lbs/250kgs | 3.2:1 | 40.0mmx6m | 2/1 |
| XQ-800B | 800lbs/350kgs | 3.2:1 | 40.0mmx6m | 2/1 |
| XQ-1000B | 1000lbs/450kgs | 4.1:1 | 45.0mmx10m | 2/1 |
| XQ-1200B | 1200lbs/550kgs | 4.1:1 | 45.0mmx10m | 2/1 |
| XQ-1400B | 1400lbs/650kgs | 4.1:1 | 45.0mmx10m | 2/1 |
| XQ-1600B | 1600lbs/700kgs | 4.1:1 | 50.0mmx10m | 2/1 |
| XQ-1800B | 1800lbs/800kgs | 4.1:8.1 | 50.0mmx10m | 2/2 |
| XQ-2000B | 2000lbs/900kgs | 4.1:8.1 | 50.0mmx10m | 2/2 |
| XQ-2500B | 2500lbs/1100kgs | 4.1:8.1 | 50.0mmx10m | 2/2 |
| XQ-3000B | 3000lbs/1360kgs | 4.1:8.1 | 50.0mmx10m | 2/2 |
| XQ-3500B | 3500lbs/1600kgs | 4.1:8.1 | 50.0mmx10m | 2/2 |
| Item No. | Capacity | Gear Ratio | Cable | Way/Speed |
| XQ-600A | 600lbs/250kgs | 3.2:1 | 4.0mmx6m | 2/1 |
| XQ-800A | 800lbs/350kgs | 3.2:1 | 4.0mmx6m | 2/1 |
| XQ-1000A | 1000lbs/450kgs | 4.1:1 | 4.0mmx10m | 2/1 |
| XQ-1200A | 1200lbs/550kgs | 4.1:1 | 4.0mmx10m | 2/1 |
| XQ-1400A | 1400lbs/650kgs | 4.1:1 | 5.0mmx10m | 2/1 |
| XQ-1600A | 1600lbs/700kgs | 4.1:1 | 5.0mmx10m | 2/1 |
| XQ-1800A | 1800lbs/800kgs | 4.1:8.1 | 5.0mmx10m | 2/2 |
| XQ-2000A | 2000lbs/900kgs | 4.1:8.1 | 5.0mmx10m | 2/2 |
| XQ-2500A | 2500lbs/1100kgs | 4.1:8.1 | 5.0mmx10m | 2/2 |
| XQ-3000A | 3000lbs/1360kgs | 4.1:8.1 | 6.0mmx10m | 2/2 |
| XQ-3500A | 3500lbs/1600kgs | 4.1:8.1 | 6.0mmx10m | 2/2 |
Product Description:
- Made of high qualtity steel with a zinc-plated finish for maximum strength and longevity that resists rust and corrosion; Anti-slip handle ensures a tight grip for less user fatigue and more productivity while cranking the manual winch.
- The manual winch can support up to 600 lbs. Parameter: Gear Ration 3.1: 1. Designed to lift equipment, move any pickup truck, ATV, and can be used to trailer or load boats, personal watercraft, and lawn equipment.
- The ratchet along with a sturdy hook able to work in both directions, flexible design for adjustment. Mooring hook equipped with a safety pawl, designed to provide excellent load lifting facility.
- Body Size: 5.9 x 3.1 x 4.5'' (L x W x H), small portable size that won’t take up much space when use.
- The cable of the crank winch measures 8m/26.2ft long, a little bit short but enough for daily use. Diameter of rope: 4.2mm/0.16inch.
XINQI WARRANTY
1 Year Unconditional Guarantee!
- XINQI will offer replacement with "no questions asked" if any standard quality problems.
XINQI HAND WINCH APPLICATION
Our Hand Winch can be mainly used for horizontal towing. Which suits especially for towing of yacht and boat; Also can be widely applied on industrial and agricultural application. We offer cable wire, strap and only winch version and more than 50 types.
