Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Sacolar
-
Model Number:
-
M6000HX-48-BP
-
Input Voltage:
-
48Vdc
-
Output Voltage:
-
220V-230v-240v
-
Output Current:
-
Load
-
Output Frequency:
-
50Hz/60Hz
-
Size:
-
Based
-
Certificate:
-
CE
-
Warranty:
-
2 Years
-
Weight:
-
13.5KG
-
Color:
-
White
-
Product name:
-

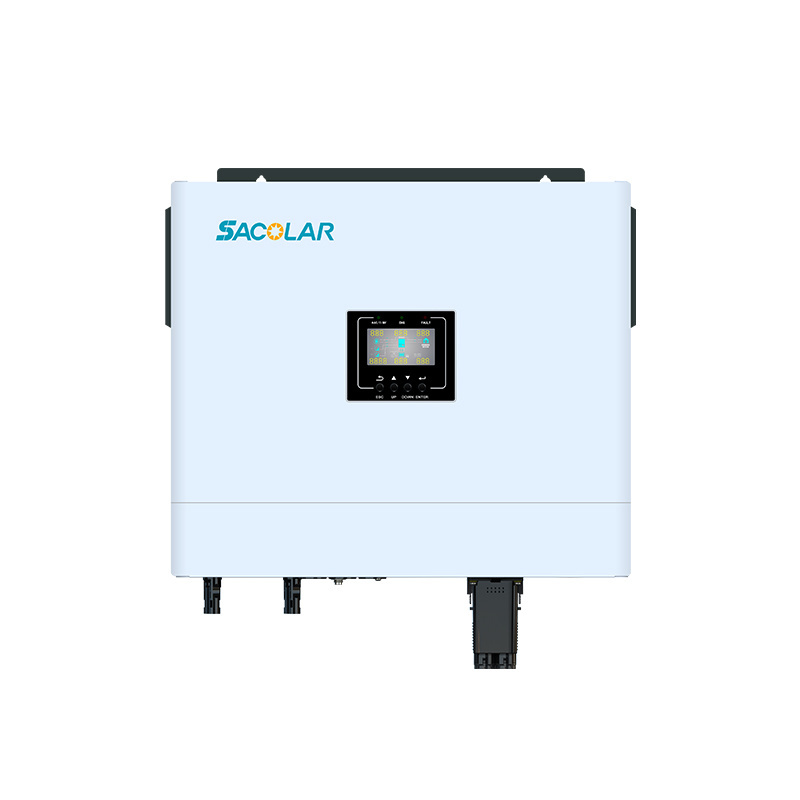

6kw off grid solar inverter with MPPT
-
Application:
-
Solar Power System Home
-
Inverter type:
-
Off-grid Power Inverter
-
Display:
-
LCD
-
Protection:
-
Short Circuit Overload Overvolt Overtemp
-
Rated power:
-
6000VA/ 6000W
-
Output waveform:
-
Pure Sine Wave Output
-
Keyword:
-
solar inverter with WiFi monitoring
-
Name:
-
APP monitoring inverter
Quick Details
-
Output Type:
-
Single, Three Phase
-
Type:
-
DC/AC Inverters
-
Inverter Efficiency:
-
94%
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Sacolar
-
Model Number:
-
M6000HX-48-BP
-
Input Voltage:
-
48Vdc
-
Output Voltage:
-
220V-230v-240v
-
Output Current:
-
Load
-
Output Frequency:
-
50Hz/60Hz
-
Size:
-
Based
-
Certificate:
-
CE
-
Warranty:
-
2 Years
-
Weight:
-
13.5KG
-
Color:
-
White
-
Product name:
-
6kw off grid solar inverter with MPPT
-
Application:
-
Solar Power System Home
-
Inverter type:
-
Off-grid Power Inverter
-
Display:
-
LCD
-
Protection:
-
Short Circuit Overload Overvolt Overtemp
-
Rated power:
-
6000VA/ 6000W
-
Output waveform:
-
Pure Sine Wave Output
-
Keyword:
-
solar inverter with WiFi monitoring
-
Name:
-
APP monitoring inverter
Three Phase Parallel Operation
If you want three phase output, you can buy at least three inverters for parallel operation.
Products Description
MAIN FEATURES:
1. Rated power 6KW
2. 500Voc high PV input voltage
3. Max PV.array power 8000watt
4. ATS built-in to switch automatically between grid and generator
5. Built-in anti-dusk kit for harsh environment
6. MC4 PV input connector
7. WiFi/GPRS monitor(optional)
8. With the ability to work with or without battery
9. CAN/RS485 for lithium battery BMS
10. Parallel up to 6 units(support 1 phase & 3 phase)
|
Model
|
M6000HX-48-BP
|
|
||
|
Rated Power
|
6KVA/ 6KW
|
|
||
|
System DC Voltage
|
48VDC
|
|
||
|
Parallel Option
|
Yes,up to 6 units
|
|
||
|
Monitoring Option
|
WiFi or GPRS
|
|
||
|
Inverter Output
|
|
|
||
|
AC Voltage
|
220V-230V-240VAC
|
|
||
|
Surge Power
|
12000VA
|
|
||
|
Peak Efficiency
|
94%
|
|
||
|
Transfer Time
|
10ms(For Personal Computers) 20ms(For Home Appliances)
|
|
||
|
Waveform
|
Pure Sine Wave
|
|
||
|
Self Consumption at 0 Load
|
<70watt
|
|
||
|
Solar Charger & AC Charger
|
|
|
||
|
Type of PV array Input Terminal
|
MC4
|
|
||
|
Max.PV Array Open Circuit Voltage
|
500Voc
|
|
||
|
Max.PV Input Current/Per String
|
16A
|
|
||
|
Number of PV Array Input
|
2 String
|
|
||
|
Max.PV Array Power
|
Each String: 4000watt; Total 8000watt
|
|
||
|
MPPT Working Range
|
120~450VDC
|
|
||
|
Battery Overcharge Protection
|
60VDC
|
|
||
|
Max.Solar Charge Current
|
100A
|
100A
|
||
|
Max.Grid Charge Current
|
80A
|
|
||
|
Max.(AC+PV)Charge Current
|
80A
|
|
||
|
Physical
|
|
|
||
|
Dimension
|
460*395*132mm
|
|
||
|
Net Weight
|
13.5kg
|
|
||
|
Communication Interface
|
USB/CAN/RS485
|
|
||
|
Environment
|
|
|
||
|
Humidity
|
5% to 95% Relative Humidity(Non-condensing)
|
|
||
|
Altitude
|
<2000m
|
|
||
|
Operating Temperature
|
0℃~50℃
|
|
||
|
Storage
|
-15℃~60℃
|
|
||
|
Noise
|
<60db
|
|
||
