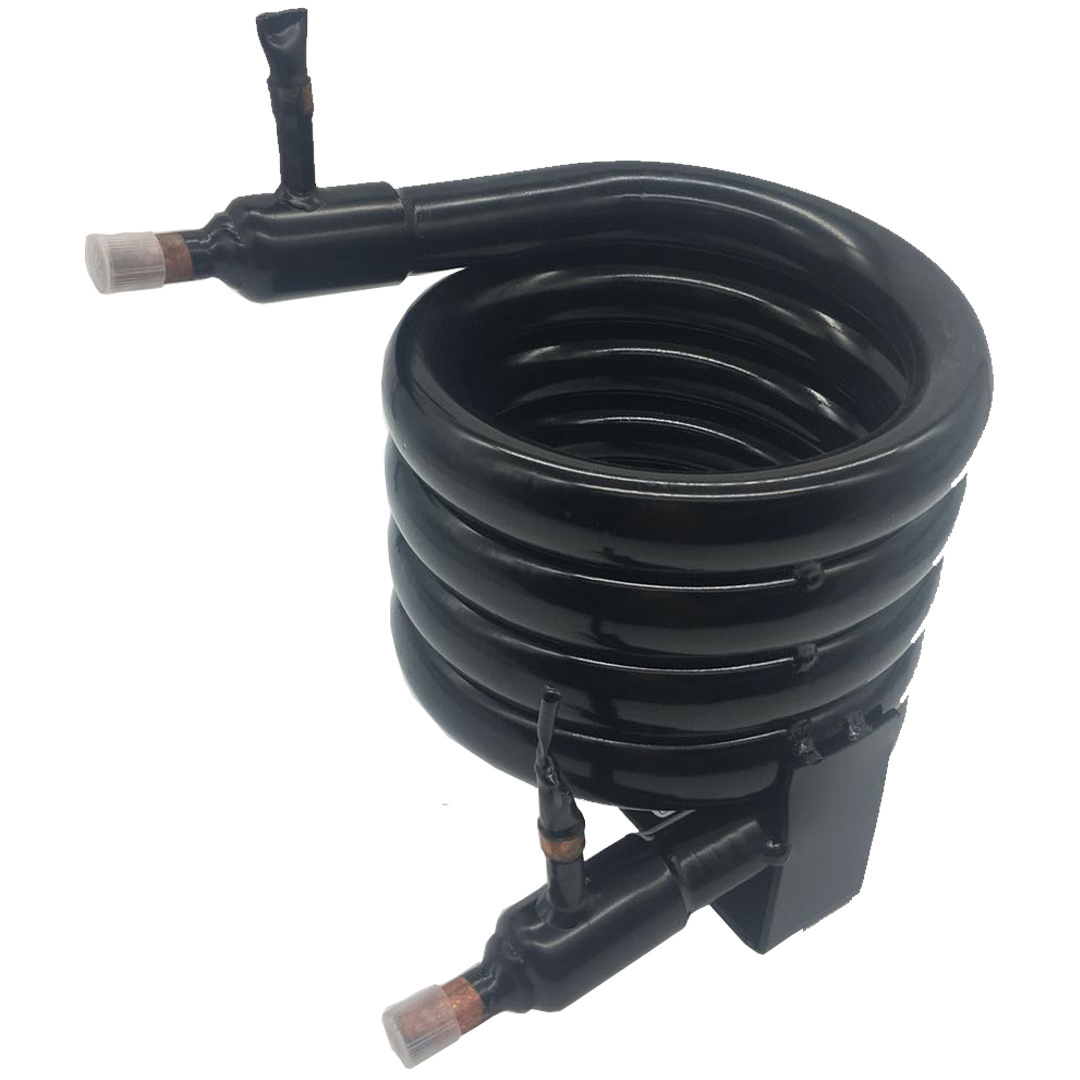

1HP coaxial heat exchanger is an ideal choice for both water-source heat pump (WSHP) and acting as 1/3HP water-cooled condensers

1HP coaxial heat exchanger is an ideal choice for both water-source heat pump (WSHP) and acting as 1/3HP water-cooled condensers

FOB Reference Price: Get Latest Price

≥1 Sets

US $55

≥20 Sets

US $49.5

≥100 Sets

US $41.25

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Voltage:: 220

Weight:: 3 KG

Dimension(L*W*H):: 20CM

Working Temperature Range:: -160~+200'C

Liquid Flow Rate:: 2m/s

Quick Details

Place of Origin:: Shanghai, China

Brand Name:: BOWA SOLUTION

Maximum Working Pressure:: 35bar

Voltage:: 220

Weight:: 3 KG

Dimension(L*W*H):: 20CM

Working Temperature Range:: -160~+200'C

Liquid Flow Rate:: 2m/s

Product Overview

Coaxial heat exchanger for poor quality water cooled climate equipment

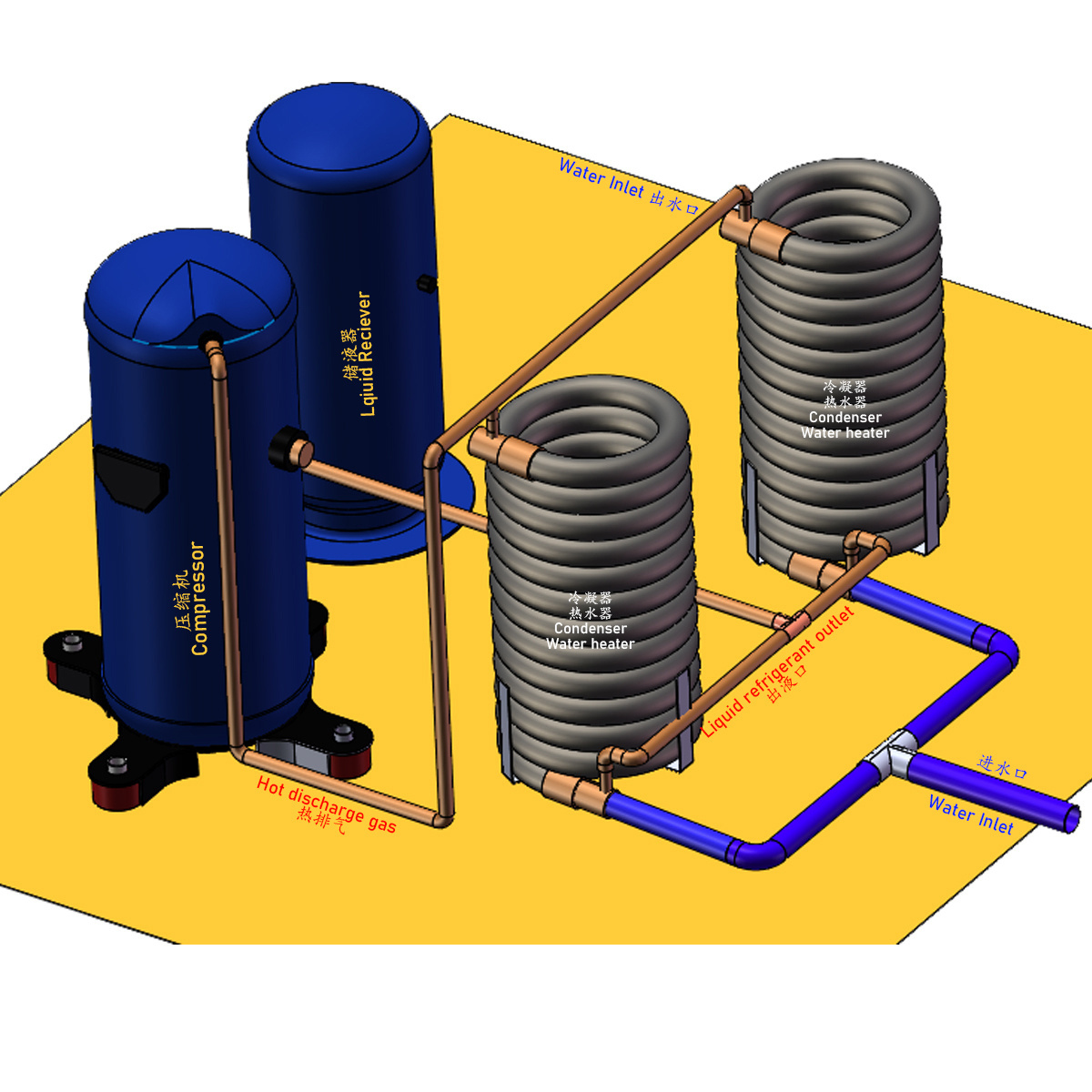

Coaxial Tube Coils are designed for use as Water Cooled Condensers, Water Chillers and in Water Source Heat Pumps. Coaxial heat exchanger has tube-in-tube and corrupted inner tube designing. Rugged tube surface can maximize the overall heat transfer. The heat exchanger (also known as double tube HEX) consists of two concentric tubes. The cooling water flows through the inner tube while the refrigerant does it through the space between the two tubes. Tube-in-tube heat exchangers, or double-tube heat exchangers, are specially designed for heating or cooling products with low-medium viscosity. The great advantage is to be able to process products with fibers or particles, without the risk of clogging. It can achieve a pure counter current flow, which allows a temperature crossover to be achieved, so that the cold fluid can be heated above the hot fluid outlet temperature

FEATURES AT A GLANCE

* Low maintenance

* small water drop
* Professional setup
* Flexible combination
* Simple construction
* compatible with different quality water
* Wide application
* quick response
* Compatible with HC, HFC & HCFC gas
* Easy operate and install
* Comprehensive solution
* Economic and high performance
* Stabilize throttle device performance

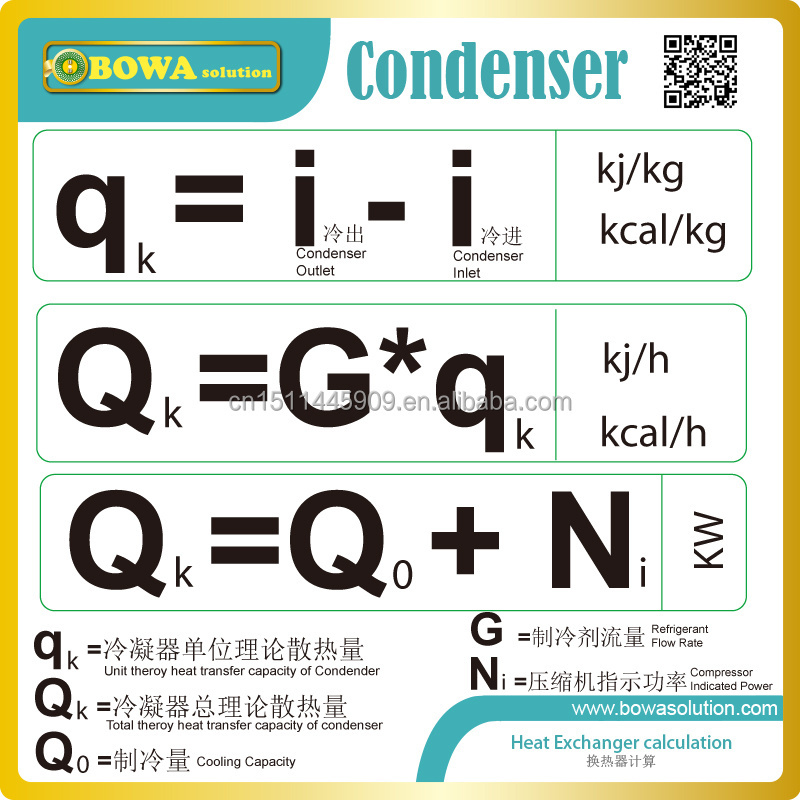

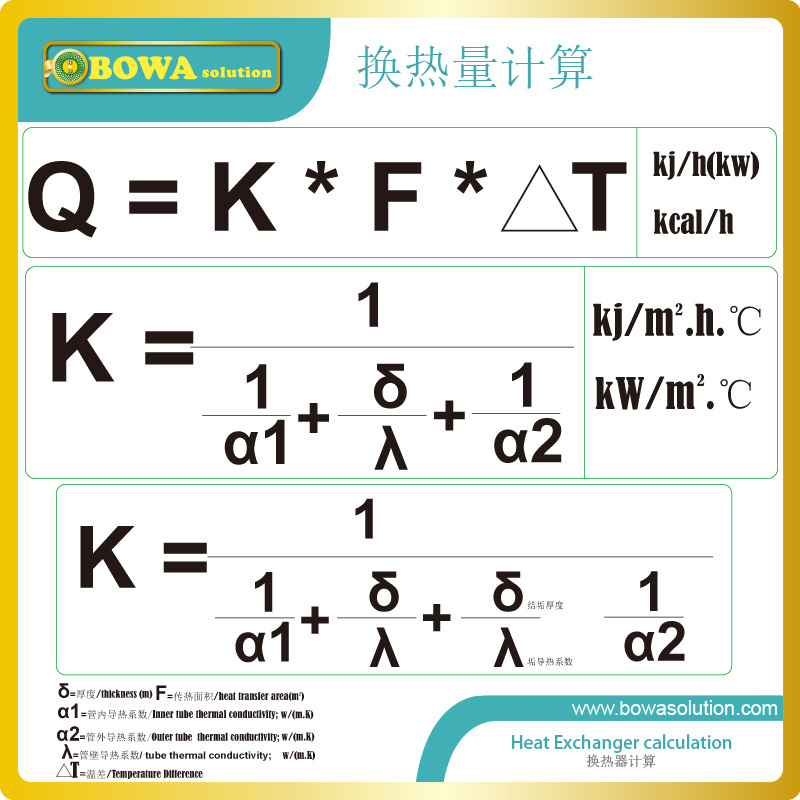

* Precision heat calculation
* Sea water construction is optional
