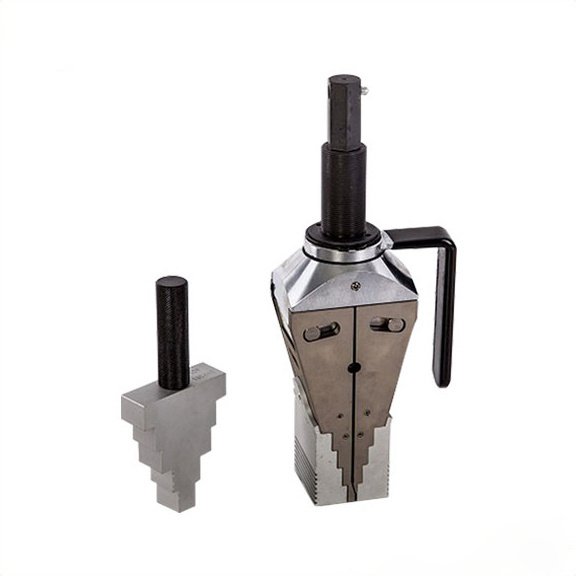

Mechanical Hydraulic Flange Spreader (zero gap)

Mechanical Hydraulic Flange Spreader (zero gap)

FOB Reference Price: Get Latest Price

≥1 Sets

US $1089

≥5 Sets

US $980

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: fsm

Name:: Mechanical flange spreader (zero gap)

Color:: Offer customized service

Output (ton):: 4-12

Separation Distance(mm):: 82-95

Expansion Collars Specification:: M16, M20,M24, M27,M30, M33, M36

Weight (kg):: 12-18

Working Pressure:: 700bar

OEM:: Yes

Certificate:: ISO9001:2008

Warranty:: 3 years

Quick Details

Standard:: DIN, ISO

Place of Origin:: Shanghai, China

Brand Name:: SOV

Model Number:: fsm

Name:: Mechanical flange spreader (zero gap)

Color:: Offer customized service

Output (ton):: 4-12

Separation Distance(mm):: 82-95

Expansion Collars Specification:: M16, M20,M24, M27,M30, M33, M36

Weight (kg):: 12-18

Working Pressure:: 700bar

OEM:: Yes

Certificate:: ISO9001:2008

Warranty:: 3 years

Products Description

Split Type Hydraulic Flange Spreaders

The split type hydraulic flange spreaders widely apply to petrochemical, metallurgical, electric power, paper mills and other industries, which are the most secure and ideal special hydraulic tools for liquid, gas transmission pipeline maintenance The design of the first step with interlocking, makes flange spreaders' work safer and simpler.

Features

* Maximum spread can reach 65mm.

* The stepped blocks radius is 150mm, which can effectively get close to flange, so that each step can bear maximum load.

* The stepped blocks with forged alloy steel material, have longer life.

* Lightweight reinforced plastic steel handle design, convenient to carry.

* Unique interlocking structure, makes the spreader close to flange and avoid over spread when it is opende; and the hydraulic cylinder is automatic return when it is closed.

Details Images

PRODUCT SPECIFICATIONS

Item No	Max. Spreading Force (T)	Working Pressure (MPa)	Tip Thickness (MM)	Max Spreading Space (MM)
SOV-FSM-		70	6	65
