Quick Details
-
Place of Origin:
-
China
-
Power:
-
38KW, 38KW
-
Weight:
-
4500 kg, 4500 Kg
-
Dimension(L*W*H):
-
21000*1600*3550mm
-
Max.size of glass:
-
2500x3000mm
-
Washing speed:
-
2-12m/min
-
Voltage:
-
220V/380V/415V
-
Function:
-
Inner and outer combine double wind knife
-
Brand:
-
Global Jinfeng
Quick Details
-
Machine Type:
-
Insulating Glass Production Line
-
Glass Thickness:
-
3-12mm, 3-12mm
-
Production Capacity:
-
100%, 80-120 finished products/h
-
Place of Origin:
-
China
-
Power:
-
38KW, 38KW
-
Weight:
-
4500 kg, 4500 Kg
-
Dimension(L*W*H):
-
21000*1600*3550mm
-
Max.size of glass:
-
2500x3000mm
-
Washing speed:
-
2-12m/min
-
Voltage:
-
220V/380V/415V
-
Function:
-
Inner and outer combine double wind knife
-
Brand:
-
Global Jinfeng
Products Description

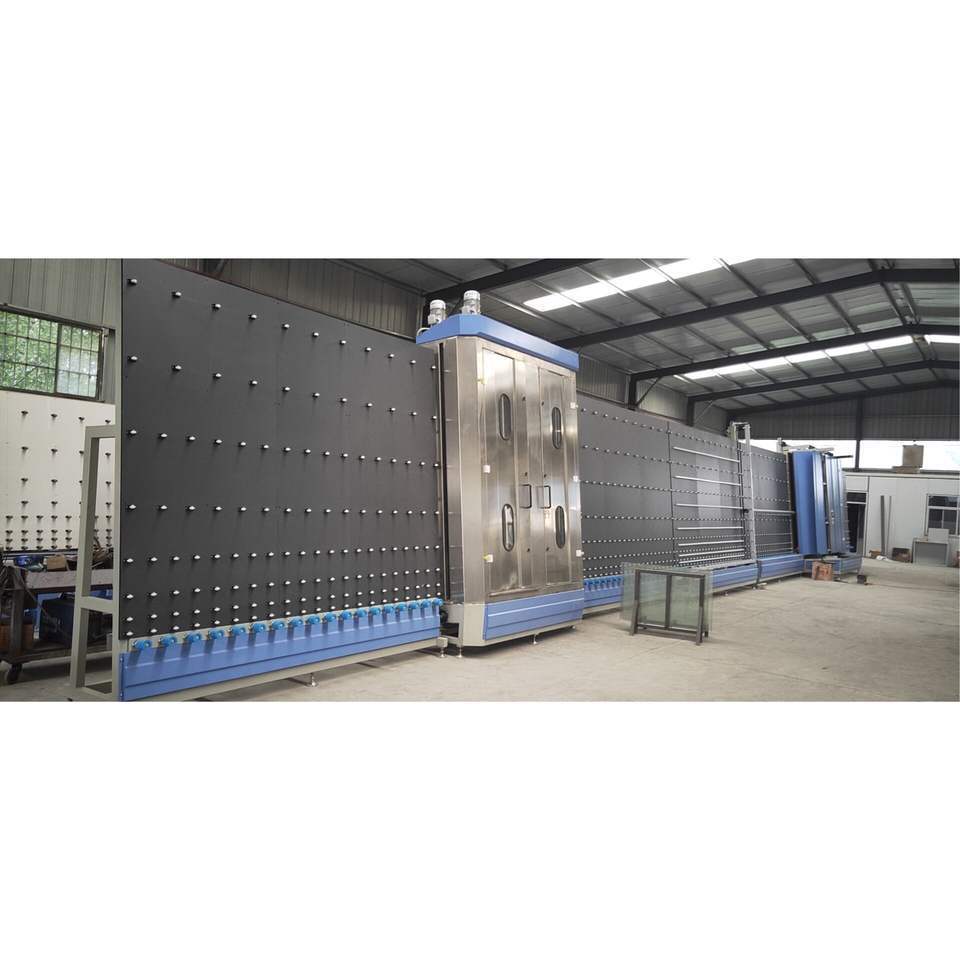

JF Vertical automatic insulating glass production line
The fully automatic insulating glass production line manufactured by our company is one of the special equipment for the production of trough aluminum insulating glass. It can be used as high-grade insulating glass products such as double-layer insulating glass, coated insulating glass and tempered insulating glass. The whole machine adopts vertical tilt mechanism, with stable transmission, PLC control, touch screen display and adjustment, and automatic detection and control of key parts. The equipment can complete the following functions: glass transmission, glass washing, drying, detection, aluminum frame positioning, automatic outer lamination, flat pressing, discharging, etc. At the same time, it also automatically monitors the working condition of the equipment itself to control the equipment to avoid failure, ensure the product quality and improve the safety performance. The production line has the characteristics of high efficiency, water saving, energy saving, safety, easy operation, small land occupation, elegant appearance, etc. It is the best equipment for hollow glass manufacturing at present.
Product Data
|
Specification
|
Data
|
|
Voltage
|
220V/380V/415V
|
|
Washing speed
|
2-12m/min
|
|
Fastest working speed
|
0-50m/min
|
|
Min.size of glass
|
260x450mm
|
|
Max.size of glass
|
2500x3000mm
|
|
Glass thickness
|
3-12mm
|
|
Air pressure
|
0.6-0.8Mpa
|
Product details
Vertical high-speed glass washing machine
1) The washing box body is made of thickened stainless steel, and the components and screws in contact with water are made of stainless steel or waterproof aluminum.
2) The washing machine adopts upper drive and double layer structure, which can avoid aging and water leakage of the sealing element of the washing box and facilitate maintenance.
3) The washing machine is driven by an integral rubber roller. The distance between the two rubber rollers is automatically adjusted by the spring according to the different thickness of the glass to be cleaned, and the glass of 3-12mm can be cleaned.
4) Three stage washing, six high-quality 1010 nylon wire brushes with a diameter of 150mm plus four sprays, clean the glass at a fast speed of 8-12m per minute, and can clean LOW-E and coated glass.
5) It is equipped with a device to automatically identify LOW-E and coated glass, which can automatically identify the front and back of LOW-E and coated glass. A pair of coarse brushes will automatically yield to avoid damage to the film.
6) The air knife and backrest frame in the drying box are all made of stainless steel to avoid secondary pollution after glass washing.
7) The reasonable angle design of the air knife makes the glass drying effect better.
8) Unique circulating air design, glass drying system energy saving and low noise.
Outer glass pressing section
1) Outer glass, fast;
2) Imported air cylinder and photoelectric switch are used for accurate positioning;
3) Three glass two cavity and two glass single cavity can be made;
4) The guide rail, sliding block and pulley are processed by numerical control.
5) The special design structure makes the transmission wheel more durable.
6) When the inflatable glass is not made, the outer glass is used to make ordinary double glass or three glass, so as to improve the production speed and efficiency.
7) Time control is adopted, so there will be no problems such as wrong chip.
Aluminum frame positioning
1) Firstly, the hollow design is adopted, and the matte lamp is adopted. The lamp tubes are reasonably distributed, without hurting people's eyes.
2) The aluminum gasket adopts special design for positioning, which is accurate and can automatically inject the height and thickness of glass, saving labor;
3) Double direction positioning is adopted for side positioning and down positioning, which is convenient, fast and accurate;
4) Special emergency stop function. If a piece of glass is found to be misplaced or reversed during the operation of the equipment, the corrected glass can be suspended, and the installation process can be resumed without removing all the glass
Pressing machine
1) The hydraulic pressure is used to control the combination of the plate press, so that the pressure of the plate press is constant and the sealing performance of the hollow glass is better.
2) The plate pressure air floatation is directly led into the national standard rectangular tube, which is conducive to the air floatation conduction without blocking. The glass runs in place, and the board is not grooved. The board is not easy to deform.
3) The glass positioning cylinder in the plate adopts an inclined plug-in structure, which is impact resistant and ensures that the glass runs in place
Exhibition
Beijing exhibition
Mexico exhibition
Mexico exhibition
Success Case
Certifications
Product packaging
Our service
1.One year guarantee for the machine,except the consumable parts.
2.24 hours technical support by e-mail/Online chatting app.
3.English control page, manual and detailed operation Videos.
3.English control page, manual and detailed operation Videos.
payment and shipping
FAQ
1.What is the guarantee?
A.1 Year of the whole set machine after shipping
B.Wear parts with cost price
C.24x7 hour on line after sale service
2.How to guarantee the quality and shipping time?
We are Gold Supplier in Alibaba, so you will get guarantee from alibaba
3.How long is the delivery time?
About 25-30 days, if urgent,we will produce as fast as we can
4.What is the payment term?
T/T,L/C,Western Union,Cash and other terms are accepted
5.Can we make special voltage?
Yes,like 380V/220V/415V,according to customer demand
6. How about the installation and bedug?
We will make Instruction with detail photos,video to teach you,if need engineer,will send to you.
A.1 Year of the whole set machine after shipping
B.Wear parts with cost price
C.24x7 hour on line after sale service
2.How to guarantee the quality and shipping time?
We are Gold Supplier in Alibaba, so you will get guarantee from alibaba
3.How long is the delivery time?
About 25-30 days, if urgent,we will produce as fast as we can
4.What is the payment term?
T/T,L/C,Western Union,Cash and other terms are accepted
5.Can we make special voltage?
Yes,like 380V/220V/415V,according to customer demand
6. How about the installation and bedug?
We will make Instruction with detail photos,video to teach you,if need engineer,will send to you.
