Quick Details
-
size:
-
500*500*400mm
-
Weight:
-
7.0 ± 0.3kgs/ pc
-
Load capacity:
-
350kgs/m2
-
Material:
-
HDPE
-
Lifespan:
-
15years
-
color available:
-
blue,orange,gray,black
-
Certificate:
-
CE ,TVB
-
Whatsapp:
-
+8618968510760
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
hisea
-
Model Number:
-
hisea-Floating platform
-
size:
-
500*500*400mm
-
Weight:
-
7.0 ± 0.3kgs/ pc
-
Load capacity:
-
350kgs/m2
-
Material:
-
HDPE
-
Lifespan:
-
15years
-
color available:
-
blue,orange,gray,black
-
Certificate:
-
CE ,TVB
-
Whatsapp:
-
+8618968510760

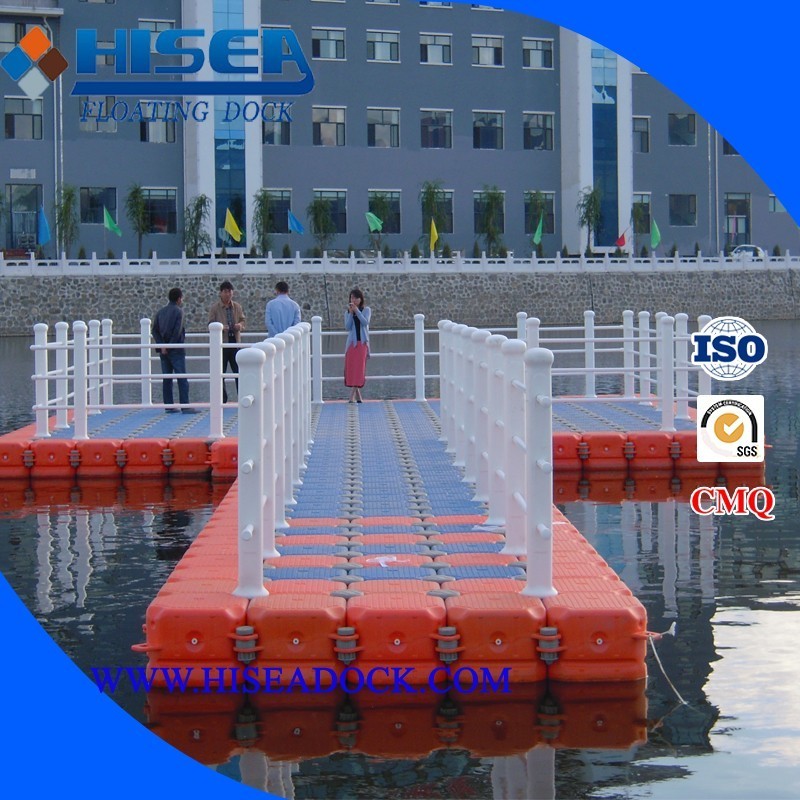

Plastic pontoon floating platform
3. how to install them together
Our main product are Hisea modular floating pontoon and accessories , which could be used for floating dock , floating platform , floating bridge , jet ski dock , jet boat dock etc . Click here lin k our homepage.
|
Material |
Hdp e with UV |
|
S ize -A |
500x500x400mm color available :blue , gray , orange , coffee |
|
Size-B |
500x500x345mm color available : blue and gray |
|
Size-C |
500x500x250mm color available : blue and gray |
|
Size-D |
1000X500X400mm color available : blue , gray , black |
|
Size-E |
1000X500X300mm color available : blue and gray (U-float with roller) |
|
Size-E-1 |
1000x500x300mm
color available : blue and gray( U-float without roller)
|
|
Size-F |
500X500X500mm color available : blue |
|
Size-G |
500x500x400mm ( hot sale) , color available : Blue |
Necessary accessories
Load Capacity:
each one square meter is made up of four pontoons, top load is 325kgs.
Draft without load: 2.5-3cm;
Draft with load of 150kgs: 15-20cm(safe);
Draft with load of 300kgs:35-40cm(load limit)
Anti Wind Wave:
1.The wave on water surface between 2-class and 3-class belongs to safe applicable range.
2.The wave on water surface between 3-class and 6-class can be applicable; however,the safety protection must be reinforced.
3.The wave on water surface between 6-class and 9-class is the restricted applicable range (it is suggested that the shipping shall not be parked and the visitors shall not be in or out).
Attention: to avoid shaking of the dock, the area of internal lake’s dock is not less than 30 square meter; the area of stage is not less than 100 square meter.
Anchoring:
1.If water is less than 3m in depth, steel piles are to be put in proper place and then connected by wheels, which can prevent the floating dock from moving laterally but can automatically rise and fall in line with water level.
2.If water is over 3m in depth, anchoring can be used by sinking the anchorage block pulled by steel cables to the water bottom.
1. Floating dock 2. Jet ski dock 3. Jet boat dock
Guarantee:
warranty on our floats are 3 years, that is within three years, if there is any damage caused by the product in normal condition, we will replace the floats for you.
