Quick Details
-
Application:
-
Oil& Gas Pipeline, Repair 3LPE Oil and Gas pipeline
-
Design Style:
-
Hot Melt Glue Strip
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CYG
-
Model Number:
-
FRDX
-
Type:
-
Adhesive, Other Waterproofing Materials
-
Shape:
-
Strip
-
Format:
-
Hot Melt Strips
-
Peel Strength(PE/PE):
-
>100N/cm
-
Lap shear:
-
>2.2Mpa
-
Variation rate of axial:
-
≤5% @200℃ 5min
-
Variation rate of circular:
-
≤5% @200℃ 5min
-
Softening point:
-
>110℃
-
Name:
-
Repair Glue Stick for 3LPE coating
-
Standard:
-
ISO9001, ISO21809, EN12068, DIN30672
-
Main Raw Material:
-
PE
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support, Onsite Training
-
Project Solution Capability:
-
Others
-
Application:
-
Oil& Gas Pipeline, Repair 3LPE Oil and Gas pipeline
-
Design Style:
-
Hot Melt Glue Strip
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CYG
-
Model Number:
-
FRDX
-
Type:
-
Adhesive, Other Waterproofing Materials
-
Shape:
-
Strip
-
Format:
-
Hot Melt Strips
-
Peel Strength(PE/PE):
-
>100N/cm
-
Lap shear:
-
>2.2Mpa
-
Variation rate of axial:
-
≤5% @200℃ 5min
-
Variation rate of circular:
-
≤5% @200℃ 5min
-
Softening point:
-
>110℃
-
Name:
-
Repair Glue Stick for 3LPE coating
-
Standard:
-
ISO9001, ISO21809, EN12068, DIN30672
-
Main Raw Material:
-
PE

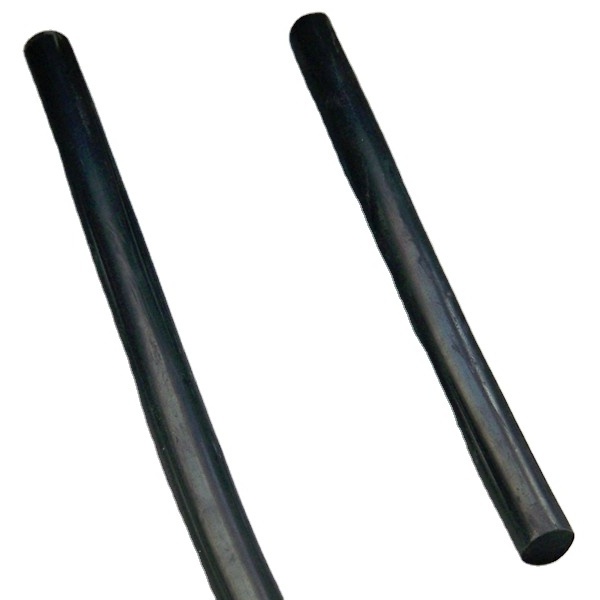

FRDX Pipeline Repair Materials-- Hot Melt Stick for Repairing 3LPE coating
FRDX Hot Melt Stick is a heat-applied melt, which in combination with repair patch, offers an economically effective and high-qualified repairing system for factory PE pipe coatings damaged mechanically during transportation, storage and laying of pipes.
PE melt sticks are essential to industry for assembly and packaging. These hot melt glue sticks allow manufacturers to manually apply hot melt adhesive from lightweight, low cost applicators using easily handled sticks of glue.
Hot Melt Stick for 3LPE coating Features:
- Long lasting and high performance.
- Specially used in repairing the damaged PE-coating and PP-coating on steel such as scratch, air bubble and cutting.
- Save time with fast and convenient installation, no special equipment required.
- Adhere closely to the surface of PE-coating and PP-coating on steel pipeline and form a continuous corrosion prevention system with the surface of the pipe.
- Anti-impact, wearability, chemical corrosion protection, water permeability. Easily adapt itself to environment.
CYG repair patch for palnt coating properties:
|
Property |
Test method |
Value |
|
Axial Variation |
200 ℃ ,5min |
≤ 5% |
|
Circumferential Variation |
200 ℃ ,5min |
≤ 5% |
|
Softening Point |
ASTM E28 |
113 ℃ |
|
Lap Shear Strength |
ASTM D1002 |
2.3 MPa |
|
Peel Strength(PE/PE) |
ASTM D1000 |
106 N/cm |
