Quick Details
-
Brand Name:
-
Hanxin
-
Use:
-
FTTH FTTB FTTX PON CATV,FTTX Systems/PON Networks
-
Warranty Time:
-
2years
-
Parameters:
-
1x2
-
Wavelength (nm):
-
1260~1650nm
-
RL(dB) (P/S Grade):
-
55/50
-
Directivity (dB):
-
55
-
Standard Output Color:
-
Blue, Orange, Green, Brown, Grey, White, Red, Black (TIA/EIA 598-B)
-
Max. Optical Power (mw):
-
300
-
Operating Temperature (℃):
-
-40~85
-
Storage Temperature (℃):
-
-40~85
-
IL(dB) (P/S Grade):
-
3.8/4.0
-
Loss Uniformity (dB):
-
0.6
Quick Details
-
Type:
-
PLC splitter
-
Model Number:
-
steel tube
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Hanxin
-
Use:
-
FTTH FTTB FTTX PON CATV,FTTX Systems/PON Networks
-
Warranty Time:
-
2years
-
Parameters:
-
1x2
-
Wavelength (nm):
-
1260~1650nm
-
RL(dB) (P/S Grade):
-
55/50
-
Directivity (dB):
-
55
-
Standard Output Color:
-
Blue, Orange, Green, Brown, Grey, White, Red, Black (TIA/EIA 598-B)
-
Max. Optical Power (mw):
-
300
-
Operating Temperature (℃):
-
-40~85
-
Storage Temperature (℃):
-
-40~85
-
IL(dB) (P/S Grade):
-
3.8/4.0
-
Loss Uniformity (dB):
-
0.6
Product Paramenters
|
Parameters
|
1x2
|
|
Wavelength (nm)
|
1260~1650nm
|
|
IL(dB) (P/S Grade)
|
3.8/4.0
|
|
Loss Uniformity (dB)
|
0.6
|
|
RL(dB) (P/S Grade)
|
55/50
|
|
Polarization Dependent Loss (dB)
|
0.15
|
|
Directivity (dB)
|
55
|
|
Standard Output Color
|
Blue, Orange, Green, Brown, Grey, White, Red, Black (TIA/EIA 598-B)
|
|
Max. Optical Power (mw)
|
300
|
|
Operating Temperature (℃)
|
-40~85
|
|
Storage Temperature (℃)
|
-40~85
|
|
Mini-Module Dimension (LxWxH) mm
|
50x4x4
|
Products Description
Product introduction

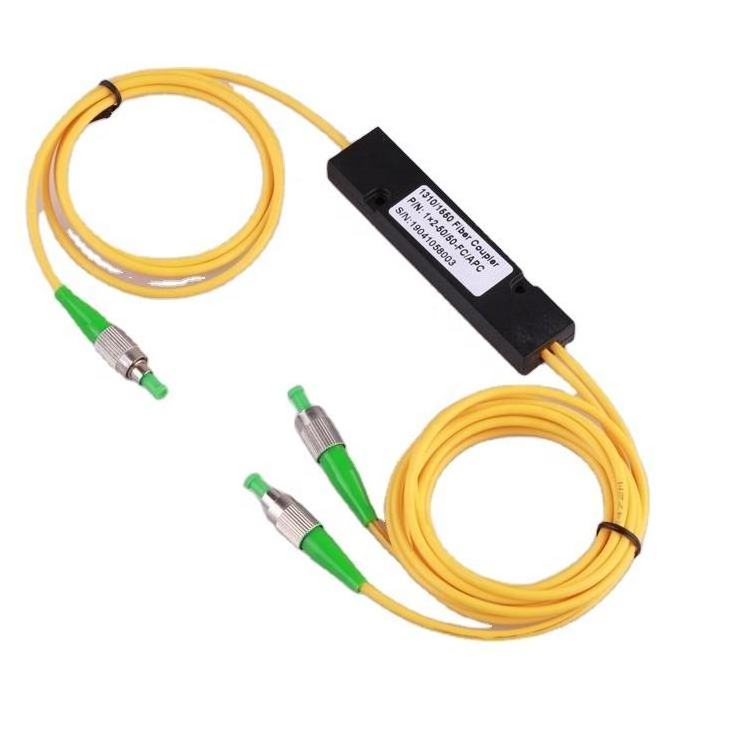

As one of the key components for GPON FTTx networks, optical splitters can be placed in the Central Office or in one of the distribution points (outdoor or indoor) because the FBT splitters are highly stable for multiport optical signal splitting with low insertion loss. FBT couplers are designed for power splitting and tapping in telecommunication equipment, CATV network, and test equipment
splitters are available with 1x2, 1x3, 1x4, 1x5, 1x6, 1x8, 1x12, 1x16, 1x18, 1x32 and 1x64 configurations with single mode or multimode fiber and we offer all type connectors of pre-connectorized like SC, FC, ST, LC and E2000 etc.
The 1x4 Singlemode Three Window 250um Bare Fiber Splitter can splitter the optical signals into 4 parts, and the coupling ratio can be customized
Key Features
Low insertion loss
Low polarization dependent loss
High Return Loss
Optional Split Ratio 20/80, 40/60...(50/50 as default.)
Compact for small application areas like in closure or splice trays
Wide Operating Temperature and Wavelength
Excellent Environmental & Mechanical Stability
Qualified Under Telcordia GR-1221 and GR-1209
Steel tube-compact size
Applications
FTTX (FTTP, FTTH, FTTN, FTTC)
Passive Optical Networks (PON)
Local Area Networks (LAN)
CATV Systems
Amplifying, Monitoring System
Test Equipments
Order Information
For FBT Splitters, Fiberstore provides a whole series of this kind customized for specific
FAQ
Q1. Can I have a sample order
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%. Secondly, during the guarantee period, we will send new with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%. Secondly, during the guarantee period, we will send new with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation
