Quick Details
-
Brand Name:
-
SUPERSTAR
-
Model Number:
-
EEGS01
-
Product name:
-
EEG/PSG Systems
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SUPERSTAR
-
Model Number:
-
EEGS01
-
Product name:
-
EEG/PSG Systems
Product Description

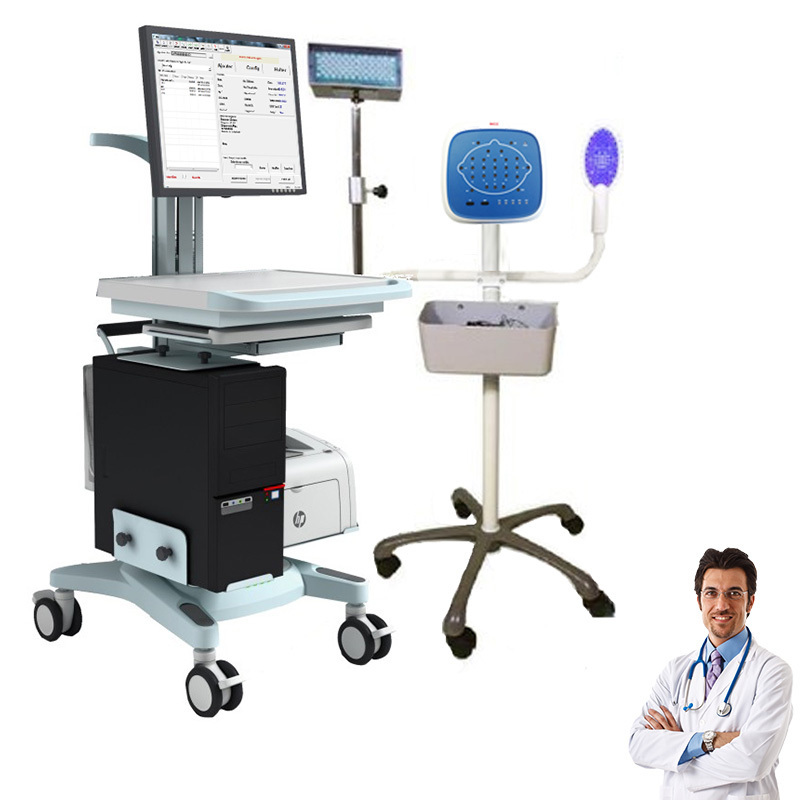

EEG/PSG Systems
1.For Amplifier:
Input channels: 24/36/48 Monopolar EEG + 12channels Bipolar EEG, 12 channels PSG.
Power supply: Internal rechargeable lithium battery(16.8v); External charger input: AC100～240V, output DC 19V
Connection to PC: USB (HDMI interface) cable
Operation Modes: Real-time
A/D conversion: 24 bit
Sampling Rate: 128/256/512/1024/2048/4096/8192Hz
Input impedance: ≥10MOhm
CMRR: ≥100dB
Noise: ≤0.5uVRMS
Low-pass filter: 0-120Hz
Amplitude-frequency characteristic: 1-60Hz
High-pass filter: 0.01-0.3s
Interface: USB2.0 (USB1.1), interface transfer rate: 480Mb (/ 12Mb) / s
Dimension & Weight: 300*230*60(mm); 1.65Kg (amplifier only)
2.For Stimulator (ERP Part)
2.1A/V stimulator
2.1.1Normal type sound stimulation parameter
Stimulation type: Short tone, Pure tone, White noise;
Stimulation mode of short tone: Left-ear, Right-ear, Binaural, Alternate;
Phase of short tone stimulation: rare wave, dense wave, alternative wave;
The maximum short tone intensity: ≥130dB
The maximum pure tone intensity: ≥120dB
The maximum white noise intensity: ≥100dB
Stimulation Frequency: 0.1~100Hz, error ≤±10%
Pure tone sound frequency: 250~7KHz, error ≤±10%
Pure tone stimulation modes: Left-ear, Right-ear, Binaural, Alternate
Target signal probability: 5%~100%, error ≤±10%
Packing & Delivery
Wooden Case
