- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
China
-
Dimension(Long * Breadth * High):
-
2075mm*1070mm*1456mm, 3500*1830*2150mm
-
Machine Weight:
-
3100 kg
-
Bucket capacity:
-
0.4cbm
-
Product name:
-

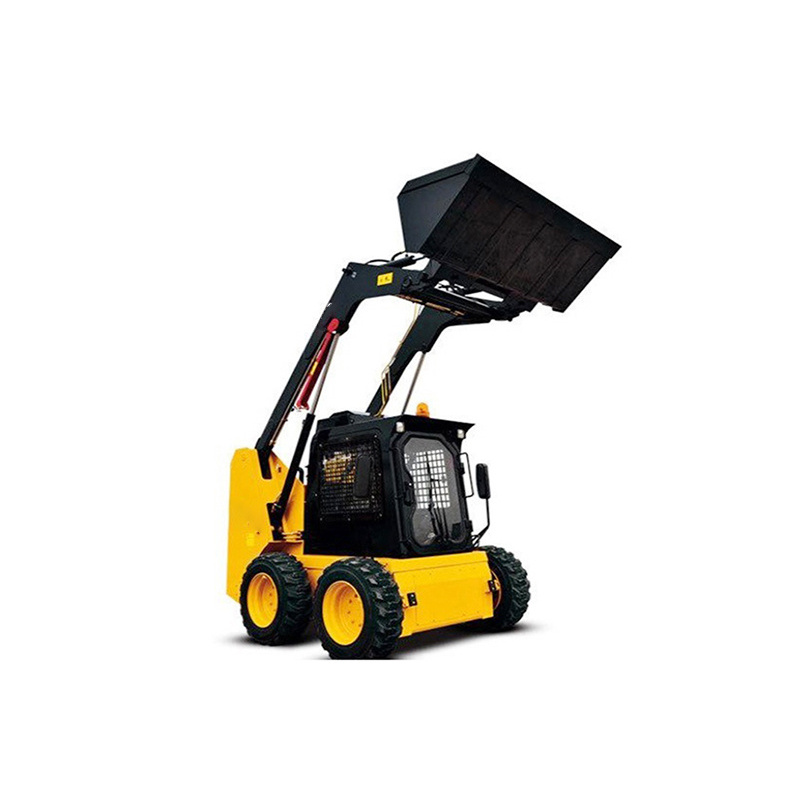

Skid Steer Loader
-
Max. Operating Altitude:
-
3826mm
-
Height:
-
1998mm
-
Tire:
-
rubber tracked
-
Operating weight:
-
3100 kg
-
Width:
-
1725mm
-
Standard capacity:
-
0.4 m³
Quick Details
-
Engine Brand:
-
Top brand
-
Power:
-
36.7kw, 48.6 kw
-
Brand Name:
-
Zoomlion
-
Place of Origin:
-
China
-
Dimension(Long * Breadth * High):
-
2075mm*1070mm*1456mm, 3500*1830*2150mm
-
Machine Weight:
-
3100 kg
-
Bucket capacity:
-
0.4cbm
-
Product name:
-
Skid Steer Loader
-
Max. Operating Altitude:
-
3826mm
-
Height:
-
1998mm
-
Tire:
-
rubber tracked
-
Operating weight:
-
3100 kg
-
Width:
-
1725mm
-
Standard capacity:
-
0.4 m³
Contact me
Super Su
Sales manager
Phone number/Whatsapp：+86 18569431204Linkeln: Super Su
Wechat: 18569431204
web: www.sinomada.com
Any machines pls feel free to contact me. Looking forward to your news!
Product Description
Specification
The hyraulic flow of JC45 skid steer loader is 62.5L/min. The main components in the hydraulic system are world-famous brand, such as EATON motor(America), Danfoss pump(America) and HYDROCONTROL valve(Italy).
The standard control mode of JC45 skid steer loader is mechanical(two levers by hand). Josytick control is optional.
The standard control mode of JC45 skid steer loader is mechanical(two levers by hand). Josytick control is optional.
|
JC45G performance parameters
|
Engine : Chinese Xinchai490
36.8KW/2650RPM Diesel type, four cylinders |
|
|
Rated load
|
700kg
|
|
|
Tipping load
|
1400kg
|
|
|
Rated bucket capacity
|
0.4cbm
|
|
|
Total weight with bucket
|
3100kg
|
|
|
Maximum running speed
|
12km/h
|
|
|
Maximum climbing capacity
|
20°
|
|
|
Standard hydraulic flow
|
62.5L/min
|
|
|
Hydraulic system pressure
|
21MPa
|
|
|
Tire inflation pressure
|
0.41-0.45 MPa
|
|
|
System voltage
|
12V
|
|
|
Fuel(diesel)filling amount
|
70 L
|
|
|
Engine lubricating oil filing amount
|
10 L
|
|
|
Ground clearance
|
200mm
|
|
|
Engine
|
|
|
|
Maker/Model
|
Xinchai4D32ZG31
|
|
|
Net power
|
55KW/2500rpm
|
|
|
Type
|
4 Cylinder in-line, Water cooled, 4 stroke, Diesel engine
|
|
|
Displacement
|
3.1L
|
|
|
Standard configuration
|
Standard bucket/Open-type operator cab/Hydraulic joystick controls/Auxiliary hydraulic couplers
|
|
|
Optional configuration(Additional cost)
|
Built-in heater/Air conditioner
|
|
Packing & Delivery
Packaging Details:Nude packing by Container or RORO vessel
Port:Shanghai/Qingdao Port
