Quick Details
-
Insulation Material:
-
XLPE
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
IRONFLON
-
Model Number:
-
UL3266 20AWG
-
Rated voltage:
-
300V
-
Product name:
-
XLPE Electrical Wire
-
Colors:
-
All Colors
-
Conductor:
-
19/0.19 Tin Plated Copper
-
Insulation:
-
XLPE
-
Certification:
-
UL E252458
-
Rated Voltage:
-
300V
-
Rated Temperature:
-
125℃
-
Flame Rate:
-
VW-1
-
Ins.Min.Ave:
-
15mils
-
Over Dia:
-
1.71mm
Quick Details
-
Application:
-
Heating
-
Conductor Material:
-
Copper
-
Conductor Type:
-
Stranded
-
Insulation Material:
-
XLPE
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
IRONFLON
-
Model Number:
-
UL3266 20AWG
-
Rated voltage:
-
300V
-
Product name:
-
XLPE Electrical Wire
-
Colors:
-
All Colors
-
Conductor:
-
19/0.19 Tin Plated Copper
-
Insulation:
-
XLPE
-
Certification:
-
UL E252458
-
Rated Voltage:
-
300V
-
Rated Temperature:
-
125℃
-
Flame Rate:
-
VW-1
-
Ins.Min.Ave:
-
15mils
-
Over Dia:
-
1.71mm

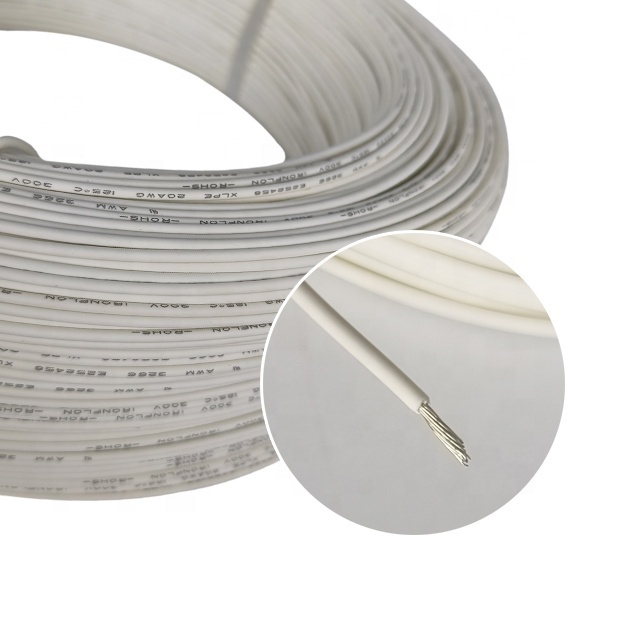

RoHS Cert Environmental Protection XLPE Insulation High Temperature UL3266 Stranded Tinned Copper Single Core Electrical Wire
Product Description
UL 3266 20AWG
Power cables are used in the transmission and distribution of high-power electrical energy in
the power system . Winding wires are conductive metal wires with insulation layers, used to wind coils or winding of electrical products. The effect is to generate a magnetic field through current, or to induce current by cutting through magnetic lines of force.
the power system . Winding wires are conductive metal wires with insulation layers, used to wind coils or winding of electrical products. The effect is to generate a magnetic field through current, or to induce current by cutting through magnetic lines of force.
Especially after high energy ray irradiation of XLPE, its strength. heat resistance and radiation had significantly enhanced. thus can be made into wall insulation. Become the aerospace craft vessels, nuclear power, nuclear power irradiation processing equipment of choice for conductor.
Specification
|
Item
|
Detail
|
|
File No.
|
UL E252458
|
|
Style No.
|
UL3266 20AWG
|
|
Flame Rate.
|
VW-1
|
|
Rated Temp.
|
125℃
|
|
Rated Voltage
|
300V
|
|
Conductor
|
19/0.19 Tin Copper
|
|
Kind of Insulation
|
XLPE
|
|
Ins.Min.Ave
|
15mils
|
|
Over Dia.
|
1.71mm
|
|
Color
|
Any Color OK
|
|
Lenth per Coil
|
1000FT/305M
|
XLPE Meterial
1.XLPE is a copolymer of a small amount of perfluoropropyl perfluorovinyl ether and polytetrafluoroethylene. The resin can be directly processed into products by ordinary thermoplastic forming methods.
2, long-term use temperature -80--260 degrees, has excellent chemical resistance, corrosion resistance to all chemicals, the coefficient of friction is the lowest in plastics, and very good electrical properties, its electrical insulation is not affected by temperature, known as "plastic king".
3, its chemical resistance is similar to polytetrafluoroethylene, better than vinylidene fluoride.
4, its creep resistance and compressive strength are better than polytetrafluoroethylene, high tensile strength, elongation up to 100-300%. Good dielectric property, excellent radiation resistance.
XLPE Electrical Wires
Applied to high pressure ignition system of internal combustion engine, Gas ignition system, TV high pressure Bag, Medical ray machine, laser.
Electron beam welding machine, electron bombardment furnace Electronic high-pressure furnace, electrostatic spraying device, Electrostatic coating device, etc
We produce this item 305M per coil.
Any Colours OK.
The Conductor
We do Tin Plated for this item.
Tin plating and its alloy is a kind of coating with good weldability and certain corrosion resistance, which is widely used in electronic components and printed circuit boards. In addition to physical methods such as hot dipping and spraying, electroplating, dipping and electroless plating have been widely used in industry because of their simplicity.
We can also make it with Nickel/Silver plated.
All Colours can be produced.
We can also produce our fluoro plastics wires in
any color
according to customers' requirement. And others details can be also Customer customization for the wires.
Application Field
It is applied to the internal and external wiring of
electronics
,
electrical appliances
,
petrochemical reactions
,
heat
exchange devices
,
smelting furnaces
,
heating appliance
s, etc. that work in high temperature environment and need wear resistance.
