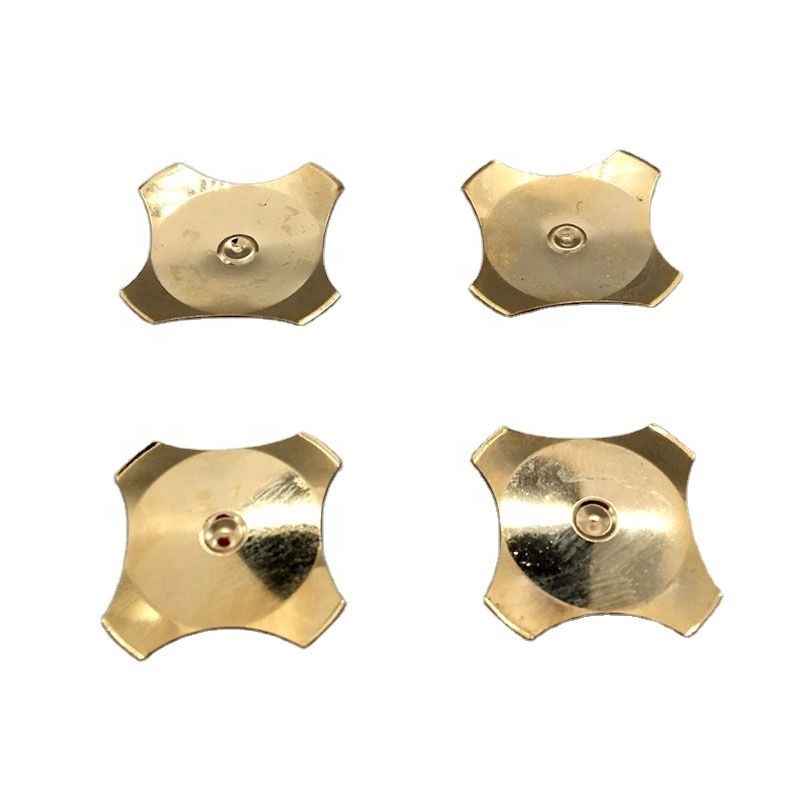

Gold Plating Diameter from 5mm to 20mm Existing stocks of 4 legged metal dome for keypad switch

Gold Plating Diameter from 5mm to 20mm Existing stocks of 4 legged metal dome for keypad switch

FOB Reference Price: Get Latest Price

≥1000 Pieces

US $0.2

≥10000 Pieces

US $0.02

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Material:: SUS301

Thickness:: 0.05-0.1mm

Weight:: 0.05g/each

Process:: Punching

Surface treatment:: Nickel

size 1:: 4*2.9

size 2:: 4*3.05

szie 3:: 5.6*4.2

size 4:: 5*3.8

size 5:: 5*4.8

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: HUIHUI

Model Number:: 5 type

Material:: SUS301

Thickness:: 0.05-0.1mm

Weight:: 0.05g/each

Process:: Punching

Surface treatment:: Nickel

size 1:: 4*2.9

size 2:: 4*3.05

szie 3:: 5.6*4.2

size 4:: 5*3.8

size 5:: 5*4.8

Related Products

Product Description

Product Name	tactile dome switches also known as snap domes
Material	SUS301
Size	3mm to 20mm
Force	80g to1000g
Switching Voltage	0.1 to 50 VDC
Switching Capacity	1 Watt
Switching Current	0.005 to 100 ma DC
Contact Bounce	<.3ms make <.6ms break
Plating	Nickel/Silver/Gold optional
Operating Temp Rating	-45 degrees C to +100 degrees C
Storage Temp Rating	-55 degrees C to +100 degrees C

Product performance description
产品性能介绍说明

HUIHUI tactile metal domes are momentary switch contacts that, when used in conjunction with a printed circuit board, flex circuit,or membrane, become normally-open tactile switches. Tactile metal domes are placed on printed circuit boards by means of
pressure-sensitive adhesive tape or they are captured in a pocket design.

Products Ctalogue

Product Usage

Packing&Shipping

Packaging Details:	Plastic bag and carton. Also use Tape & Reel package or Blister plate package or otherwise specified by customer.
Delivery Detail:	8-12 days，normally in stock

Company Introduction

HUIHUI was founded in 2006 specifically to serve the membrane switch and related switch industries, filling a void previously unsatisfied by other tactile metal dome switch suppliers. Since our inception, we have expanded to serve many different industries throughout the world.

Our Services & Strength

Our team has a combined experience of over 15 years in this industry. We manufacture all of our domes in the world to your precise specifications. You’ll receive the highest quality product with consistent characteristics every time you order.

FAQ

Q. Can the domes be soldered to a circuit board?

A. Not recommended. When the domes are pushed, the feet actually move outward slightly. When soldered to a circuit board, the feet of the domes are restricted from their natural movement. This restriction can negatively affect the tactile response of the domes,and in some cases, cause irreparable damage to the domes or break the solder joint.

Q. What is the purpose of a dimple in the center of a dome?

A. Various Snaptron domes have a dimple located in the center of the dome. Typical depth of the dimple is .001” to .002” but may vary depending on the dome style. A dimple is used to reinforce or improve the dome contact with the PCB.
