Quick Details
-
Material:
-
1.5mm thickness304 stainless steel
-
Dimension:
-
420x330x980mm
-
Arm Length:
-
510mm
-
Working Voltage:
-
AC220V 10% 50HZ 10%
-
Rotation Direction:
-
left or right or bi-directional
-
Barrier Open Time:
-
0.2s
-
Passing Speed:
-
30-45Persons/min
-
Support Access Control Method:
-
Face recognition, Barcode, QR Code, Fingerprint,IC/ID Cards
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
PeaceGuarder
-
Model Number:
-
SD-TT001
-
Material:
-
1.5mm thickness304 stainless steel
-
Dimension:
-
420x330x980mm
-
Arm Length:
-
510mm
-
Working Voltage:
-
AC220V 10% 50HZ 10%
-
Rotation Direction:
-
left or right or bi-directional
-
Barrier Open Time:
-
0.2s
-
Passing Speed:
-
30-45Persons/min
-
Support Access Control Method:
-
Face recognition, Barcode, QR Code, Fingerprint,IC/ID Cards

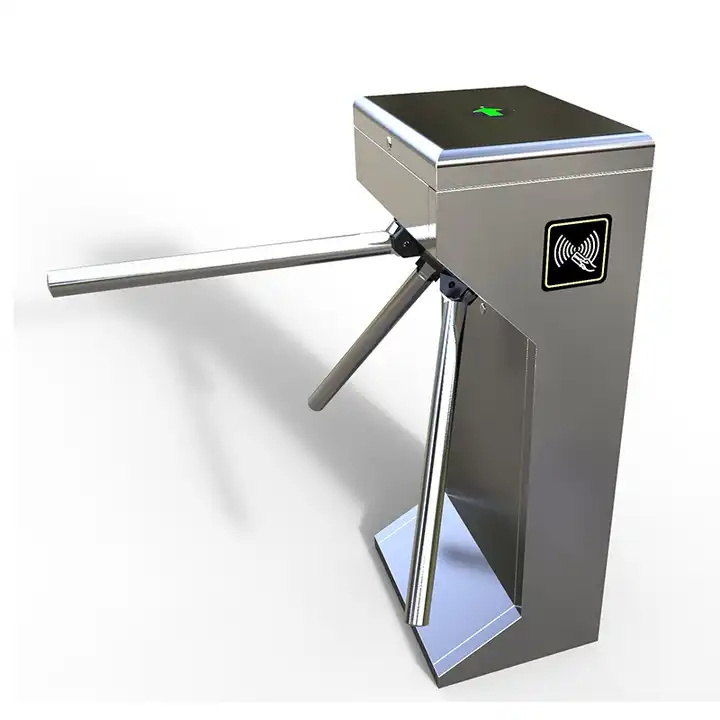

SD - T T00 1 Vertical Tripod Turnstile
Function:
1. Anti-rust and Anti-corrosion
2. Automatic resent function, if doesn’t pass through within the given time, the permission will be automatically cancelled and the arm will be restored
3. Intelligent motherboard, turnstiles can be configured to allow access in a single direction or bi-directionally.
4. Prevent trailing. After each pass, the arm is rotated 120 degrees to automatically lock.
5. Anti-collision, unable to push with external force when the arm is locked
6. Compatible with various control methods, including remote control, push buttons, IC or ID Card Reading Devices, etc.
7. Anti-Panic function. After the gate is powered off, the arm is automatically dropped to facilitate evacuation
8 . Highlight LED indicator, indicate more eye-catching.
Extensible functions:
1. LED counter display
2. C abinet and tripod arms can be lengthened.
3 . Voice prompts
Dimensional drawing:
Parameters:
|
Cabinet Material |
304 Stainless Steel |
|
Dimensions |
420*330*980mm |
|
Weight |
35 KG |
|
Arm Length |
50 0- 600 mm |
|
Passage Width |
600mm |
|
Dry Contact |
12V |
|
Material Thickness |
1.5mm |
|
Card-reading W indow |
One |
|
Direction |
Bidirectional |
|
Service Life |
5 million times |
|
Operating T emperature |
-25℃ ~ +60℃ |
|
Related H umidity |
≥90%RH |
|
Communication Interface |
TCP/IP |
|
Power S upply |
AC 220V/110V ±10% 50/60MHZ (optional) |
|
Opening S peed: |
30 - 45persons per minute |
|
Closing S peed: |
25-35 persons per minute |
Application:
Vertical Tripod Turnstile
1. C an be compatible with IC / ID card , bar code card , fingerprint and face recognition access control method.
2. U sed for staff, provide civilized, orderly access methods; effectively manage the access of staff.
3. Can be widely used in Outdoor public place,Scenic area, Factory,Residential area for access management.
