- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Jeta
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
2170X2160X1510mm
-
Weight:
-
2600 kg
-
Name:
-
Guillotine Paper Cutter
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Driving force:
-
Hydraulic
-
Driving mode:
-
Worm gear drive
-
Function:
-
High Efficiency
-
Application:
-
Corrugated Board
-
Model:
-
JT-QZYK920DH-10
-
Speed:
-
45 cycles/min
-
Advantage:
-
Econmical
-
Item:
-
New Paper Cutter
Quick Details
-
Type:
-
Paper Cutting Machine
-
Production Capacity:
-
45cycles/min
-
Max. workable width:
-
920mm
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Jeta
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
2170X2160X1510mm
-
Weight:
-
2600 kg
-
Name:
-
Guillotine Paper Cutter
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Driving force:
-
Hydraulic
-
Driving mode:
-
Worm gear drive
-
Function:
-
High Efficiency
-
Application:
-
Corrugated Board
-
Model:
-
JT-QZYK920DH-10
-
Speed:
-
45 cycles/min
-
Advantage:
-
Econmical
-
Item:
-
New Paper Cutter
Features:
*
Usage:

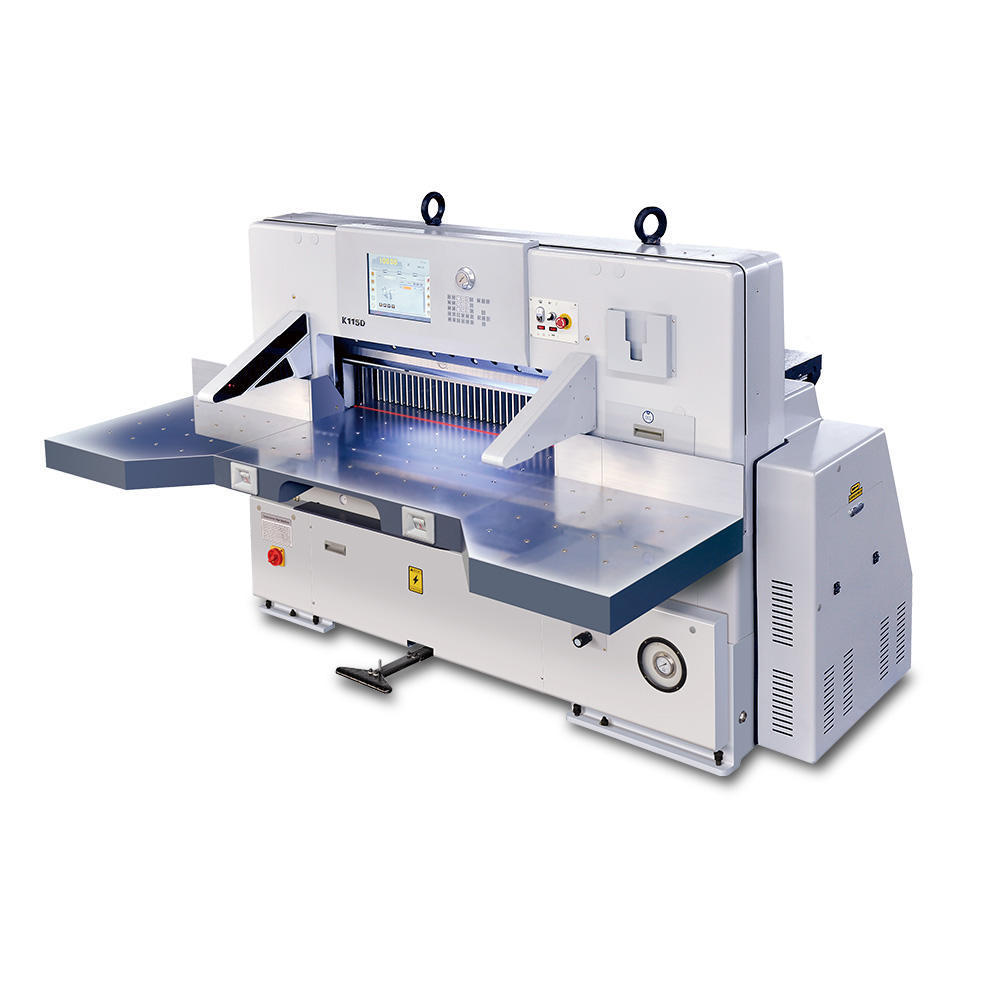

[JT-QZYK920DH-10]CE Hydraulic Guillotine Machine Paper Office Cutter A3 Guillotine Electric Paper Cutter Cutting Machine
is used to cut the printing paper of various kinds, paper products, plastic, thin film, leather, slice of non-ferrous metal, etc.
* Computer: It is equipped with imported whole set computer controlling system. The computer can do self-diagnose while malfunction, and do self-protection while wrong operation. The paper sending motor power controlled by imported transducer, the speed of paper sending reaches 6-12m/min, and the position accuracy can be 0.05 mm.
* Single Hydraulic and Single Worm Wheel Device: The hydraulic device pass CE certificate.
* Double Guide Device: the paper pusher adopts imported double linear guide and roller ball screw.,which can prolong the machine use life, and can bear the high speed paper delivering.
* Photo Cell: it is equipped with a photo cell safety protection device.
* Over Load Protection Device: convenient knife changing device.
* Worktable Chrome Treatment: the worktable and side board surface are all adopted chrome treatment to improve the precision and quality of the machine.
* Air Ball: air balls are installed in the worktable. The paper sending work will be easy and accurate.
* Cutting Controller: both of the user’s hands operate the machine. It can cut paper in one time.
* Electronic Knife Lock: when the machine is malfunction, the electronic knife lock will lock the knife, and the machine will stop cutting to protect safety.
* Main Electric Device are imported from Germany, French, Japan, etc.
* Computer: It is equipped with imported whole set computer controlling system. The computer can do self-diagnose while malfunction, and do self-protection while wrong operation. The paper sending motor power controlled by imported transducer, the speed of paper sending reaches 6-12m/min, and the position accuracy can be 0.05 mm.
* Single Hydraulic and Single Worm Wheel Device: The hydraulic device pass CE certificate.
* Double Guide Device: the paper pusher adopts imported double linear guide and roller ball screw.,which can prolong the machine use life, and can bear the high speed paper delivering.
* Photo Cell: it is equipped with a photo cell safety protection device.
* Over Load Protection Device: convenient knife changing device.
* Worktable Chrome Treatment: the worktable and side board surface are all adopted chrome treatment to improve the precision and quality of the machine.
* Air Ball: air balls are installed in the worktable. The paper sending work will be easy and accurate.
* Cutting Controller: both of the user’s hands operate the machine. It can cut paper in one time.
* Electronic Knife Lock: when the machine is malfunction, the electronic knife lock will lock the knife, and the machine will stop cutting to protect safety.
* Main Electric Device are imported from Germany, French, Japan, etc.
|
Model
|
|
JT-QZK920DH-10
|
|
|
Max cutting width
|
cm
|
92
|
|
|
Max cutting length
|
cm
|
100
|
|
|
Max cutting height
|
cm
|
13
|
|
|
Max clamping pressure
|
N
|
30000
|
|
|
Cutting speed
|
cycles/min
|
45
|
|
|
Cutting motor power
|
kw
|
3
|
|
|
Wind pump motor power
|
kw
|
0.55
|
|
|
Sending paper motor power
|
kw
|
0.55
|
|
|
Net weight
|
Kg
|
2600
|
|
|
Outline dimension (LXWXH)
|
mm
|
2170x2160x1510
|
|
|
Packing dimension(LXWXH)
|
mm
|
2290x1320x1800
|
|
