Quick Details
-
Weight (KG):
-
1 kg
-
Product name:
-
Micro bubble disc diffuser for fish shrimp pond farming
-
Diameter:
-
260mm
-
Flow rate:
-
1-4m³/h
-
Material:
-
EPDM+ABS/PP
-
Package:
-
Carton/pallet
-
Service life:
-
5-8years in municipal sweage
-
Color:
-
Grey or customed
-
MOQ:
-
2cartons
-
Keywords:
-
Bubble aerator
-
Usage:
-
Wastewater Treatment or aquaculture
Quick Details
-
Core Components:
-
Membrane
-
Place of Origin:
-
China
-
Productivity:
-
1000pcs/day
-
Weight (KG):
-
1 kg
-
Product name:
-
Micro bubble disc diffuser for fish shrimp pond farming
-
Diameter:
-
260mm
-
Flow rate:
-
1-4m³/h
-
Material:
-
EPDM+ABS/PP
-
Package:
-
Carton/pallet
-
Service life:
-
5-8years in municipal sweage
-
Color:
-
Grey or customed
-
MOQ:
-
2cartons
-
Keywords:
-
Bubble aerator
-
Usage:
-
Wastewater Treatment or aquaculture

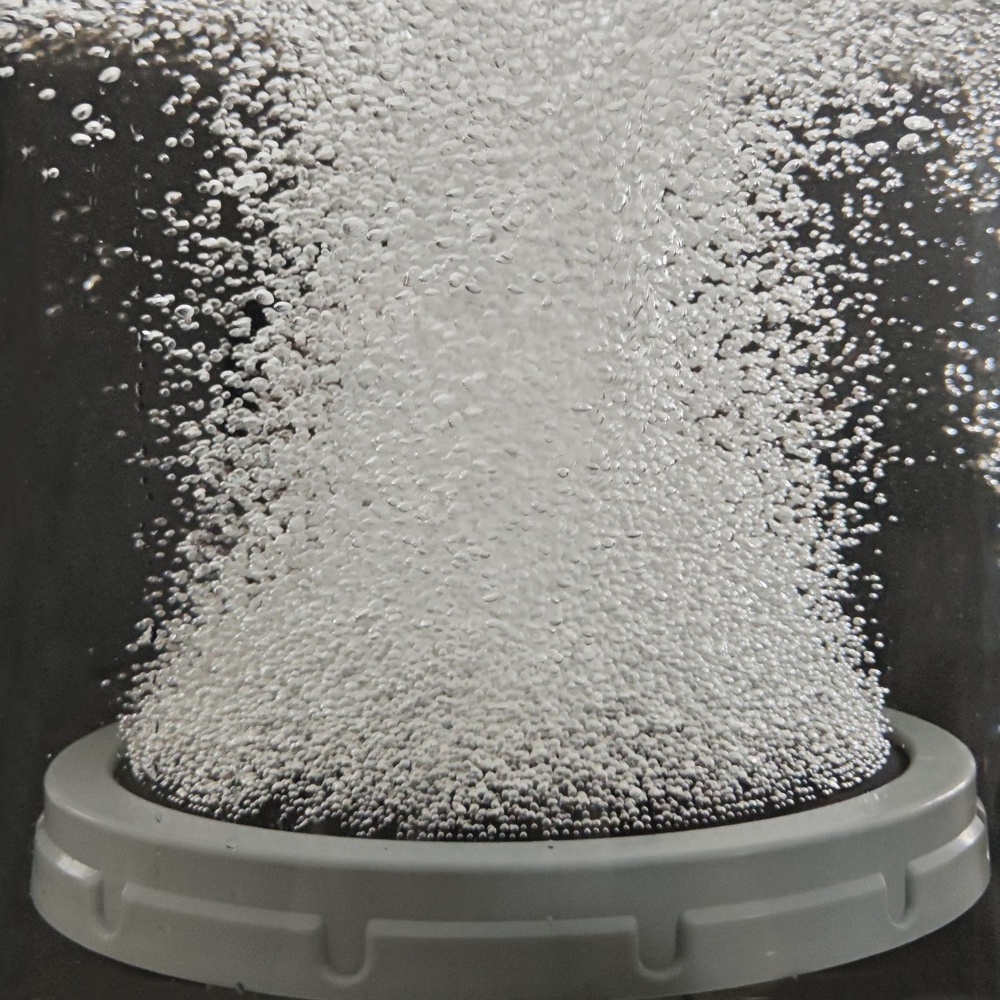

Micro bubble disc diffuser for fish shrimp pond farming/fish tank/sweage water treatment equipment
Product Parameter
|
Model
|
R-DEX-9"-EPDM
|
|
Diameter
|
260mm
|
|
Effective diameter
|
220mm
|
|
Membrane material
|
EPDM
|
|
Plastic tray material
|
ABS/PP
|
|
Bubble type
|
Fine bubble
|
|
Bubble size
|
1-2mm
|
|
Design Air Flow
|
1.5-6m³/h
|
|
Optimal Air Flow
|
2-4m³/h
|
|
Limit Air Flow
|
10m³/h
|
|
Oxygen transfer efficiency(SOTE)
|
36-55%
|
|
Oxygen transfer rate(SOTR)
|
≥0.4kg/h
|
|
Theoretical dynamic efficiency
|
≥9.8kgO2/kw.h
|
|
Resistance loss
|
1500-2500pa
|
|
Hole quantity
|
6600pcs
|
|
Service area
|
0.1875-1.25㎡
|
|
Use temperature
|
0-80℃
|
|
Membrane thickness
|
2±0.1mm
|
|
Connector
|
3/4“
|
|
Service life
|
5-8years
|
Product Introduction
1. Disc aerator membrane has undergone special frosted treatment, the surface treatment of membrane is smooth, which prolongs the service life of membrane.
2. Special check structure design, the center of disc aerator membrane is provided with a protrusion, when disc aerator work stops, the membrane firmly covers the air inlet under the action of its own rebound and water depth pressure, effectively preventing muddy water from pouring.
3. The second check structure is also specially designed, and the check valve is designed in the ventilation structure, when disc aerator stops, the check valve firmly jams the air intake under the action of gravity, effectively preventing muddy water from being irrigated.
4. The internal thickening design of disc aerator thread prevents the root of the disc aerator from breaking.
5. The air flow is strictly calculated and designed to reduce the resistance loss of the aerator in the working state.
6.There are several ribs on the outside of disc aerator, after the product is assembled, the ribs are trapped inside the membrane to prevent membrane from falling off.
2. Special check structure design, the center of disc aerator membrane is provided with a protrusion, when disc aerator work stops, the membrane firmly covers the air inlet under the action of its own rebound and water depth pressure, effectively preventing muddy water from pouring.
3. The second check structure is also specially designed, and the check valve is designed in the ventilation structure, when disc aerator stops, the check valve firmly jams the air intake under the action of gravity, effectively preventing muddy water from being irrigated.
4. The internal thickening design of disc aerator thread prevents the root of the disc aerator from breaking.
5. The air flow is strictly calculated and designed to reduce the resistance loss of the aerator in the working state.
6.There are several ribs on the outside of disc aerator, after the product is assembled, the ribs are trapped inside the membrane to prevent membrane from falling off.
