Quick Details
-
Air Consumption:
-
8 m3/min
-
Place of Origin:
-
China
-
Brand Name:
-
ZHONGMEI
-
Voltage:
-
380V
-
Power:
-
5.5kw
-
Dimension(L*W*H):
-
1600*700*1150mm
-
Weight:
-
800 kg
-
Model:
-
Wet and Dry Shotcrete machine
-
Capacity:
-
5 m3/h
-
Max. Conveying Distance Horizontal:
-
200m
-
Max. Conveying Distance Vertical:
-
20m
-
Use material water-cement ratio:
-
≤0.4
-
Max. Aggregate Diameters:
-
20mm
-
Feeding pipe inner diameters:
-
51mm
-
Rotor Diameter:
-
438mm
-
Working pressure:
-
0.4-0.6MPa
-
Air consumption:
-
7-8 m3/min
Quick Details
-
Max. Conveying Distance:
-
Horizontal 200m Vertical 20m
-
Max Aggregate Size:
-
20mm
-
Hose Inner Diameter:
-
51 mm
-
Air Consumption:
-
8 m3/min
-
Place of Origin:
-
China
-
Brand Name:
-
ZHONGMEI
-
Voltage:
-
380V
-
Power:
-
5.5kw
-
Dimension(L*W*H):
-
1600*700*1150mm
-
Weight:
-
800 kg
-
Model:
-
Wet and Dry Shotcrete machine
-
Capacity:
-
5 m3/h
-
Max. Conveying Distance Horizontal:
-
200m
-
Max. Conveying Distance Vertical:
-
20m
-
Use material water-cement ratio:
-
≤0.4
-
Max. Aggregate Diameters:
-
20mm
-
Feeding pipe inner diameters:
-
51mm
-
Rotor Diameter:
-
438mm
-
Working pressure:
-
0.4-0.6MPa
-
Air consumption:
-
7-8 m3/min
Introduction of China Concrete Spray Shotcrete Gunite Machine Wet And Dry Shotcrete Machine For Sale
High Quality Wet and Dry Shotcrete machine is concrete shotcrete machine. This kind shotcrete machine uses the compressed air to convey or high-speed jet concrete mix with a certain proportion to the surface through the pipelines. The concrete mix on the surface set and harden to form concrete support layer. In recent years, shotcrete technology with a simple process, an unique effect, the economic cost and fast construction speed, is widely used in construction, rail and road tunnel construction, mine development, slope reinforcement and other fields.
Dry-mix shotcrete machine main parameter
| Model | PZ-3 | PZ-5 | PZ-7 | PZ-9 | |
| Output | 3.5m3/h | 5m3/h | 7m3/h | 9m3/h | |
| Max. Convey distance | Horizontal | 200m | 200m | 200m | 200m |
| Vertical | 20m | 20m | 20m | 20m | |
| Water cement ratio | ≤0.4 | ≤0.4 | ≤0.4 | ≤0.4 | |
| Max. Aggregate. size | Φ20mm | Φ20mm | Φ20mm | Φ20mm | |
| Hose inner size | Φ38mm | Φ51.mm | Φ64mm | Φ64mm | |
| Operating air pressure | 0.4~0.6MPa | 0.4~0.6MPa | 0.4~0.6MPa | 0.4~0.6MPa | |
| Air consumption | 3-4 m3/min | 7-8 m3/min | 12-15 m3/min | 12-15 m3/min | |
| Rotor diameter | 350(150)mm | 438mm | 480mm | 480mm | |
| Electric Voltage | 220v /380v | 220v /380v | 380v | 380v | |
| Overall dimension | 1040*550*940mm | 1280*700*1280mm | 1600*700*1150 | 1600*700*1150 | |
| Whole weight | 550kgs | 600kgs | 900kgs | 900kgs | |
Wet-mix shotcrete machine main parameter
| Model | HSP-5 | HSP-7 | HSP-9 | |
| Output | 5.0m³/h | 7.0m³/h | 9.0m³/h | |
| Max. Convey distance | Horizontal | 30m | 30m | 30m |
| Vertical | 20m | 20m | 20m | |
| Concrete proportion | 1:4-5C/A | 1:4-5C/A | 1:4-5C/A | |
| Water cement ratio | ≤0.4 | ≤0.4 | ≤0.4 | |
| Hose inner size | Φ51mm | Φ51/64mm | Φ51/64mm | |
| Max.Aggregatesize | Φ15mm | Φ15mm | Φ15mm | |
| Operating air pressure | 0.3-0.6Mpa | 0.3-0.6Mpa | 0.3-0.6Mpa | |
| Air consumption | 10.0-15.0m³/min | 10.0-15.0m³/min | 10.0-15.0m³/min | |
| Rotor diameter | 438mm | 480(160)mm | 480(175)mm | |
| Spring rate level | ≤10% | ≤10% | ≤10% | |
| accelerating liquid adding amount | 0.3%-0.7% | 0.3%-0.7% | 0.3%-0.7% | |
| Electric Voltage | 220v/380v | 380v or as your need | 380v or as your need | |
| Overall dimension | 1280*700*1280mm | 2000*800*1300mm | 2000*800*1300mm | |
| Whole weight | 700kg | 800kg | 900kg | |

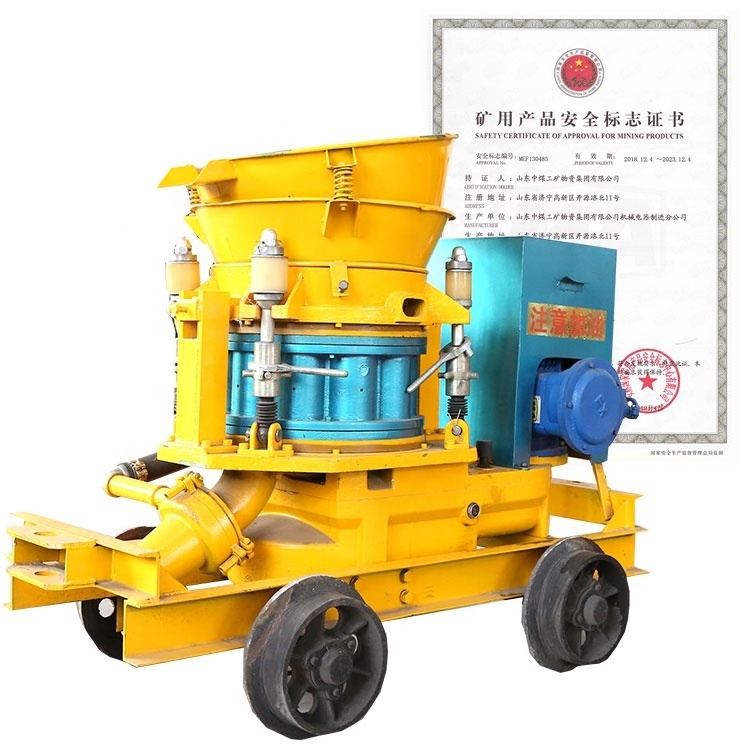

Figure Images of China Concrete Spray Shotcrete Gunite Machine Wet And Dry Shotcrete Machine For Sale
