Quick Details
-
Brand Name:
-
YAONAN
-
Model Number:
-
YN-SS001
-
Color:
-
Natural
-
Usage:
-
Wiring Accessories
-
Working Temperature:
-
-60°C-550°C
-
Package:
-
100pcs/bag
-
Size:
-
Custom Size
-
Sample:
-
Provide Samples Freely
-
Advantage:
-
High Tensile Strength
-
Certification:
-
ISO9001,CE,ROHS
Quick Details
-
Type:
-
Stainless Steel
-
Material:
-
Stainless Steel
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
YAONAN
-
Model Number:
-
YN-SS001
-
Color:
-
Natural
-
Usage:
-
Wiring Accessories
-
Working Temperature:
-
-60°C-550°C
-
Package:
-
100pcs/bag
-
Size:
-
Custom Size
-
Sample:
-
Provide Samples Freely
-
Advantage:
-
High Tensile Strength
-
Certification:
-
ISO9001,CE,ROHS

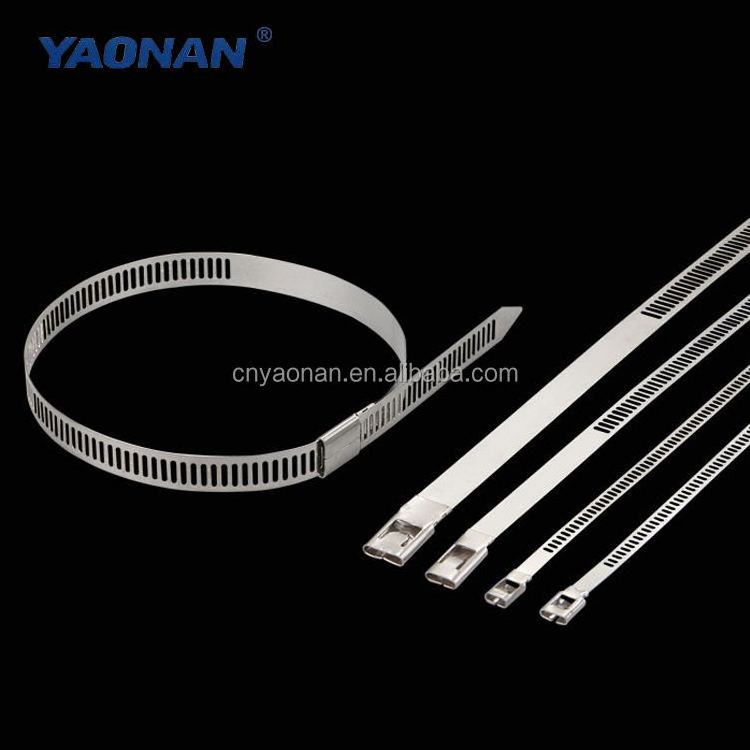

Ball Lock /Metal Cable Wrap Black Self -Locking Pvc Coated Stainless Steel Cable Tie Strapping Band
Product Description
| Item No | Size | Max.Bundle Diameter | Min.loop Tesile Strength | |||||
| L(inch) | L(mm) | W(inch) | W(mm) | (inch) | (mm) | LBS | KGS | |
| YNS-100 | 3.93" | 100 | 0.181" | 4.6 | 0.87" | 22 | 135 | 46 |
| YNS-152 | 5.98" | 152 | 0.181" | 4.6 | 1.38" | 35 | 135 | 46 |
| YNS-175 | 6.88" | 175 | 0.181" | 4.6 | 1.57" | 40 | 135 | 46 |
| YNS-200 |
7.87" |
200 | 0.181" | 4.6 | 1.97" | 50 | 135 | 46 |
| YNS-250 | 9.84" | 250 | 0.181" | 4.6 | 2.56" | 65 | 135 | 46 |
| YNS-300 | 11.80" | 300 | 0.181" | 4.6 | 3.15" | 80 | 135 | 46 |
| YNS-360 | 14.17" | 360 | 0.181" | 4.6 | 3.74" | 95 | 135 | 46 |
| YNS-400 | 15.75" | 400 | 0.181" | 4.6 | 4.13" | 105 | 135 | 46 |
| YNS-520 | 20.47" | 520 | 0.181" | 4.6 | 5.91" | 150 | 135 | 46 |
| YNS-600 | 23.62" | 600 | 0.181" | 4.6 | 7.09" | 180 | 135 | 46 |
| YNS-680 | 26.77" | 680 | 0.181" | 4.6 | 7.68" | 195 | 135 | 46 |
| YNS-840 | 33.07" | 840 | 0.181" | 4.6 | 9.84" | 250 | 135 | 46 |
| YNS-1050 | 41.34" | 1050 | 0.181" | 4.6 | 11.22" | 285 | 135 | 46 |
| YNL-152 | 5.98" | 152 | 0.311" | 7.9 | 1.38" | 35 | 180 | 80 |
| YNL-175 | 6.88" | 175 | 0.311" | 7.9 | 1.57" | 40 | 180 | 80 |
| YNL-200 | 7.87" | 200 | 0.311" | 7.9 | 1.97" | 50 | 180 | 80 |
| YNL-250 | 9.84" | 250 | 0.311" | 7.9 | 2.56" | 65 | 180 | 80 |
| YNL-300 | 11.80" | 300 | 0.311" | 7.9 | 3.15" | 80 | 180 | 80 |
| YNL-360 | 14.17" | 360 | 0.311" | 7.9 | 3.74" | 95 | 180 | 80 |
| YNL-400 | 15.75" | 400 | 0.311" | 7.9 | 4.13" | 105 | 180 | 80 |
| YNL-520 | 20.47" | 520 | 0.311" | 7.9 | 5.91" | 150 | 180 | 80 |
| YNL-600 | 23.62" | 600 | 0.311" | 7.9 | 7.09" | 180 | 180 | 80 |
| YNL-680 | 26.77" | 680 | 0.311" | 7.9 | 7.68" | 195 | 180 | 80 |
| YNL-840 | 33.07" | 840 | 0.311" | 7.9 | 9.84" | 250 | 180 | 80 |
| YNL-1050 | 41.34" | 1050 | 0.311" | 7.9 | 11.22" | 285 | 180 | 80 |
| YNB-152 | 5.98" | 152 | 0.724" | 12 | 1.38" | 35 | 270 | 120 |
| YNB-175 | 6.88" | 175 | 0.724" | 12 | 1.57" | 40 | 270 | 120 |
| YNB-200 | 7.87" | 200 | 0.724" | 12 | 1.97" | 50 | 270 | 120 |
| YNB-250 | 9.84" | 250 | 0.724" | 12 | 2.56" | 65 | 270 | 120 |
| YNB-300 | 11.80" | 300 | 0.724" | 12 | 3.15" | 80 | 270 | 120 |
| YNB-360 | 14.17" | 360 | 0.724" | 12 | 3.74" | 95 | 270 | 120 |
| YNB-400 | 15.75" | 400 | 0.724" | 12 | 4.13" | 105 | 270 | 120 |
| YNB-520 | 20.47" | 520 | 0.724" | 12 | 5.91" | 150 | 270 | 120 |
| YNB-600 | 23.62" | 600 | 0.724" | 12 | 7.09" | 180 | 270 | 120 |
| YNB-680 | 26.77" | 680 | 0.724" | 12 | 7.68" | 195 | 270 | 120 |
| YNB-840 | 33.07" | 840 | 0.724" | 12 | 9.84" | 250 | 270 | 120 |
| YNB-1050 | 41.34" | 1050 | 0.724" | 12 | 11.22" | 285 | 270 | 120 |
