Quick Details
-
Brand Name:
-
Jindelong
-
Voltage:
-
380V/Customized
-
Power:
-
148kw
-
Dimension(L*W*H):
-
Customized
-
Weight:
-
350000 kg
-
Marketing Type:
-
New Product 2023, Factory Price Kraft Making Machine
-

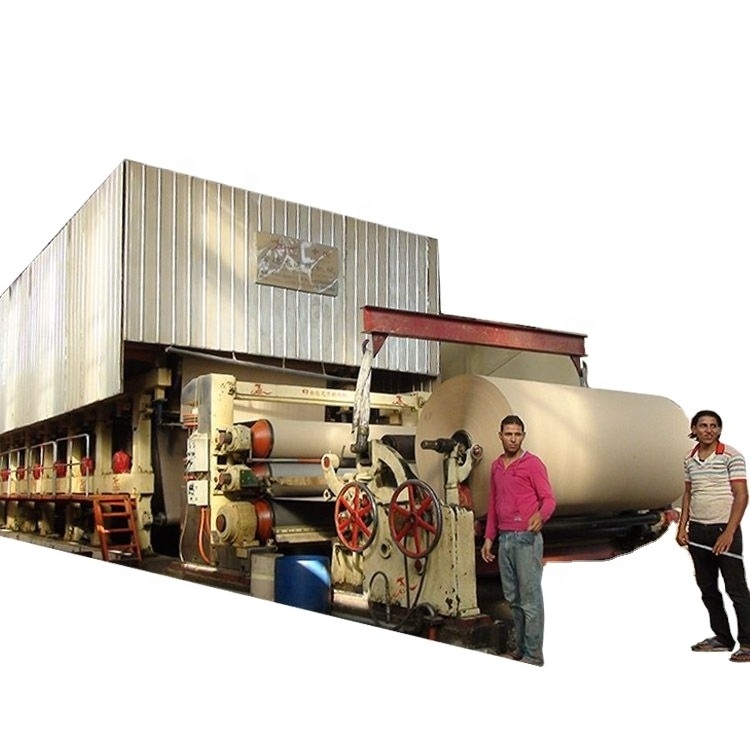

Machine type:
-
2880 Corrugated Paper Machine
-
Raw material:
-
Waste paper, waste carton paper
-
Finished paper:
-
Corrugated paper, fluting paper, kraft paper
-
Paper width:
-
2880mm
-
Capacity:
-
45-60 T/D
-
Design speed:
-
150 m/min
-
Working speed:
-
80-120 m/min
-
Drive way:
-
AC variable frequency and partial speed drive
-
Production raw materials:
-
Waste carton paper
Quick Details
-
Production Capacity:
-
150 m/min
-
Product Type:
-
paper making machine
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Jindelong
-
Voltage:
-
380V/Customized
-
Power:
-
148kw
-
Dimension(L*W*H):
-
Customized
-
Weight:
-
350000 kg
-
Marketing Type:
-
New Product 2023, Factory Price Kraft Making Machine
-
Machine type:
-
2880 Corrugated Paper Machine
-
Raw material:
-
Waste paper, waste carton paper
-
Finished paper:
-
Corrugated paper, fluting paper, kraft paper
-
Paper width:
-
2880mm
-
Capacity:
-
45-60 T/D
-
Design speed:
-
150 m/min
-
Working speed:
-
80-120 m/min
-
Drive way:
-
AC variable frequency and partial speed drive
-
Production raw materials:
-
Waste carton paper
Raw Material & Finished Paper
Detailed Description
Product Parameters
|
Model
|
JDL-1575
|
JDL-1880
|
JDL-2400
|
JDL-2880
|
JDL-3200
|
JDL-3800
|
||||||
|
Paper width (mm)
|
1575
|
1880
|
2400
|
2880
|
3200
|
3800
|
||||||
|
Capacity (t/d)
|
5-10
|
15-40
|
30-40
|
45-60
|
50-80
|
100
|
||||||
|
Design speed (m/min)
|
100
|
120
|
120
|
150
|
200
|
300
|
||||||
|
Working speed (m/min)
|
50-80
|
60-100
|
60-80
|
80-120
|
150-180
|
150-250
|
||||||
|
Raw material
|
Waste paper, wood pulp
|
|
|
|
|
|
||||||
|
Paper weight (gsm)
|
80-250 g
|
|
|
|
|
|
||||||
|
Customized on demand
|
|
|
|
|
|
|
||||||
|
No.
|
Name
|
Function
|
|
1
|
Forming wire
|
Extract the pulp fiber to felt
|
|
2
|
Alloy dryer cylinder
|
Dry the wet paper
|
|
3
|
Double-layer dryer hood
|
Cover dryer and collect the hot&moist air diffused by dryer
|
|
4
|
Axial-flow ventilator
|
Ventilate and pull out the hot&moist air in the exhaust hood
|
|
5
|
Roots vacuum pump
|
Provide vacuum force for suction box
|
|
6
|
Air compressor
|
Provide compressed air for pneumatic devices
|
|
7
|
Frequency conversion controlling cabinet
|
Control the speed of the machine
|
|
8
|
Vacuum suction box
|
Absorb water contained in the wet paper
|
|
9
|
High concentration hydrapulper
|
Break the waste paper into pulp
|
|
10
|
High frequency vibrating screen
|
Separate and remove large impurity in the pulp
|
|
11
|
Impeller
|
Stir pulp and keep pulp well-mixed with water
|
|
12
|
Pressure screen
|
Getting ride of impurities
|
|
13
|
Bleacher
|
Bleach and whiten pulp
|
|
14
|
Double disc refiner
|
Grind, refine and fibrillation
|
|
15
|
Low concentration sand remover
|
Remove sand and impurities
|
|
16
|
Pulp pump
|
Pulp transportation
|
|
17
|
Electrical operation cabinet
|
Control machine operation
|
|
18
|
Boiler
|
Provide steam for the drying section
|
