Quick Details
-
Color:
-
White
-
Power:
-
220V
Quick Details
-
Use:
-
Stripping
-
Place of Origin:
-
Jiangsu, China
-
Automation Grade:
-
Semi automatic
-
Color:
-
White
-
Power:
-
220V

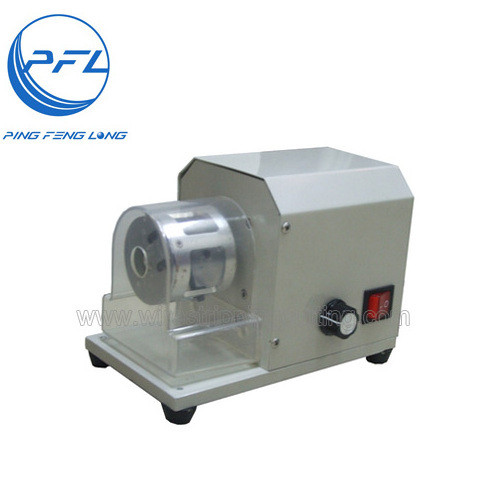

Electric Wire stripping and Twisting Machine
Model:PFL-118
| Features: |
1.This machine adopt the micromotor,it's portable and easy to move.
2.Small voice,high speed.
3.Apply to strip and twist a piece of multi copper wire,and it can do the stripping and twisting one time.
Operation method:
1). Please cut your wires before operating.
2). Choose a suitable blade mold according to the wire OD,and then set the stripping length.
3). Trun on the power.
4). Put your wire into the blade mold fast, then pull it out quickly.
| Apply for: |
Widely used in the electronics industry, the city ahs, electrical appliances, motor, lamps, toys, and other
various products of wire processing.
Optimal stripped wire PVC/teflon/silica gel line /. Glass fiber, etc.
| Specification: |
| Available Wire Diameter: | 1.0~4.0mm | |
| Available Stripping Length: | 2.0~20.0mm | |
| Powr Supply: | 220V/50Hz | |
| Power Rated: | 120W | |
| Operation: | Manual feeding | |
| Automation: | Semi automatic | |
| Driven: | Electrical driven | |
| Measurement: |
220*130*150mm
|
|
| Weight: | 6.0kg | |
| Product details: |
| Sample: |
| All models: |
Automaitc wire stripping cutting machine
| Technical support |
Technical support is available during your daily using and maintainance.
We can customized products as you need.
We also provide OEM service.
We support all the agents from different countries.We will provide technology to help them have their
own logo,brand and customers.
| After-Sale service |
We have a team for after-sale service.
All of us trust than good service is as important as good quality.
If any problems in using,please contact us.
For the products within the warranty period,we will slove the problem for you for free.
For the products out of the warrany period,we also will offer the best rate for the replacement to you.
| FAQ |
Are you-Kunshan Pingfenglong a trader or a factory?
We are a professional manufacturer of wire stripping machines,cutting machines in China for 10 years.
And we also sale kinds of packing machines,tape machines as a agent.
we have strong integration of resources,to help customers find the products in China market.
Do you-Kunshan Pingfenglong have any qualifications and certifications?
We have import and export permissions for our products.
We have ISO international certification and CE certifications to export.
How can we know more about your products?
You can click the video to see how the machines work.
we also can provide e-catalog to show more specifications,you can contact sales to get them.
If you don’t understand how to work the machines,you can contact our sales to get manual or video about how to install and set
Can you-Kunshan Pingfenglong provide spare parts and maintain?
For the products within warranty period,we will prvide the spare parts to repair for free Technical support
is provided all long time during your daily using and maintain
How do you-Kunshan Pingfenglong support your agent from different countries?
We provide professional technical support,best agent price,help them to creat their own logo,brand,help them to
find the customers in their countries
